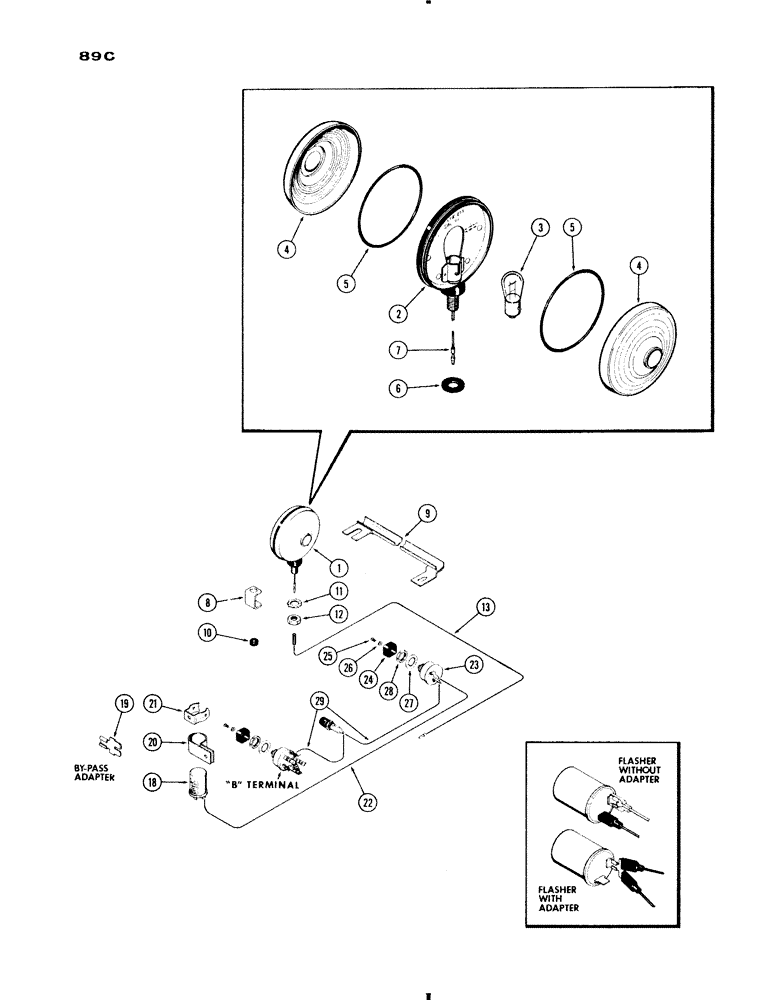

Запчасти Case IH 730 SERIES (089C) - FLASHER WARNING LAMP (04) - ELECTRICAL SYSTEMS

1

A34853

LAMP

ASSY. - warning, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - lamp (order ref. 1)

1шт.

3

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

4

A41261

LENS

- lamp

2шт.

5

NLS

NO LONGER SERVICED

"O"RING - lamp

2шт.

6

A41263

GASKET - lamp

1шт.

7

A41260

WIRE - lamp

1шт.

8

A22880

CLIP

CLAMP - warning lamp

1шт.

9

A34854

CONDUIT - warning lamp wire

1шт.

10

A27338

GROMMET

- wire (in fender)

1шт.

11

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , Lamp Ext-Int Tooth, 1/2"

1шт.

12

129-125

NUT,1/2"-20, G5

Lamp 1/2"-20, G5

1шт.

13

A34858

WIRE - lamp to harness (G.P.) (68" long)

1шт.

13

A34859

WIRE - lamp to harness (West) (85" long)

1шт.

18

A34867

FLASHER UNIT

FLASHER

1шт.

19

A34862

KIT

ADAPTER KIT - flasher by-pass (required for steady light)

1шт.

20

A34868

CLAMP

BRACKET - flasher mounting (L.P.)

1шт.

21

A34869

BRACKET

- flasher mounting (Gas & Diesel)

1шт.

22

A34861

WIRE - flasher to switch (8" long) (L.P.)

1шт.

22

A34860

ELECTRICAL WIRE

WIRE - flasher to switch (18" long) (Gas & Diesel)

1шт.

23

A34866

SWITCH

- flasher light

1шт.

24

A20465

KNOB

- flasher switch

1шт.

25

A20468

SCREW,Spcl, #8 - 32 x 5/16"

- knob retaining

1шт.

26

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

WASHER - lock, , Knob screw #8

1шт.

27

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER - switch retaining (5/8" int. skpf.)

1шт.

28

A20467

NUT

- switch retaining

1шт.

29

A34865

WIRE - flasher switch to fuse holder & light switch "B" term.

1шт.
