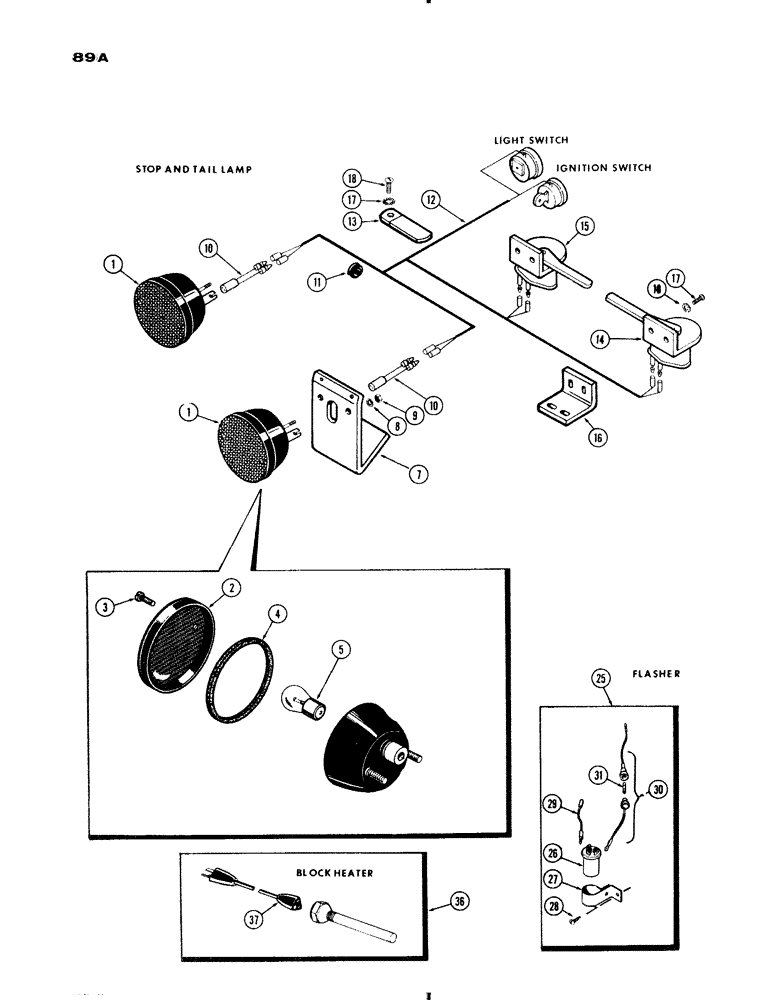

Запчасти Case IH 730 SERIES (089A) - LIGHTING EQUIPMENT, STOP AND TAIL LAMP, FLASHER ATTACHMENT, BLOCK HEATER (04) - ELECTRICAL SYSTEMS

A33978

LAMP KIT - stop and tail lights, Includes: Ref. 1 - 18

1шт.

1

L10741

STOP LIGHT

LAMP ASSEMBLY - (Replaces A16732), Includes: Ref. 2 - 5

2шт.

2

B50336

LENS

- lamp

1шт.

3

187-553

SCREW,Slotted Pan Hd, #8 x 5/8"

- lens retaining

2шт.

4

A40862

GASKET -, Serial Range: lens-body

1шт.

5

R11078

LAMP

BULB - (12 volt)

1шт.

7

A33972

BRACKET - lamp mounting

2шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

9

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Lamp ret

4шт.

10

A16731

PLUG

WIRE ASSY. - tail light plug

2шт.

11

A27338

GROMMET

- wire (in fenders)

1шт.

12

A33975

HARNESS

ASSY. - wire

1шт.

13

A22880

CLIP

- harness ret. (to platform)

2шт.

14

A33976

SWITCH

- stop light, R.H.

1шт.

15

A33977

SWITCH

- stop light, L.H.

1шт.

16

A33974

BRACKET - switch mounting

2шт.

17

187-1126

SCREW - switch & clip (#10 x 3/8" N.F. pan hd.)

8шт.

18

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

8шт.

25

A22630M

ATTACHEMENT - flasher, Includes: Ref. 26 - 31

1шт.

26

A22627

LIGHT, WARNING

FLASHER - warning lamp, attachment

1шт.

27

A22626

BRACKET - mtg., flasher attachment

1шт.

28

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- mach., #10 x 1/2" N.C., rd. hd., flasher attachment

1шт.

29

A22628

WIRE - flasher to aux. socket, attachment

1шт.

30

A22629

WIRE ASSY. - flasher to power, Includes: Ref. 31

1шт.

31

223-4

FUSE,4 Amp, Type 3AG

- flasher (4 amp), block heater

1шт.

36

A40476

HEATER

ASSY., block, Includes: Ref. 37

1шт.

Ref: #36 Heater Assy - A40476 Heater replaced by A44816 - for short heater assy order A44815.

1шт.

For complete engine overhaul, order: [1] A40899, [1] A40349 and [1] A40347

1шт.

37

A40477

ELECTRICAL WIRE

CORD - heater

1шт.
