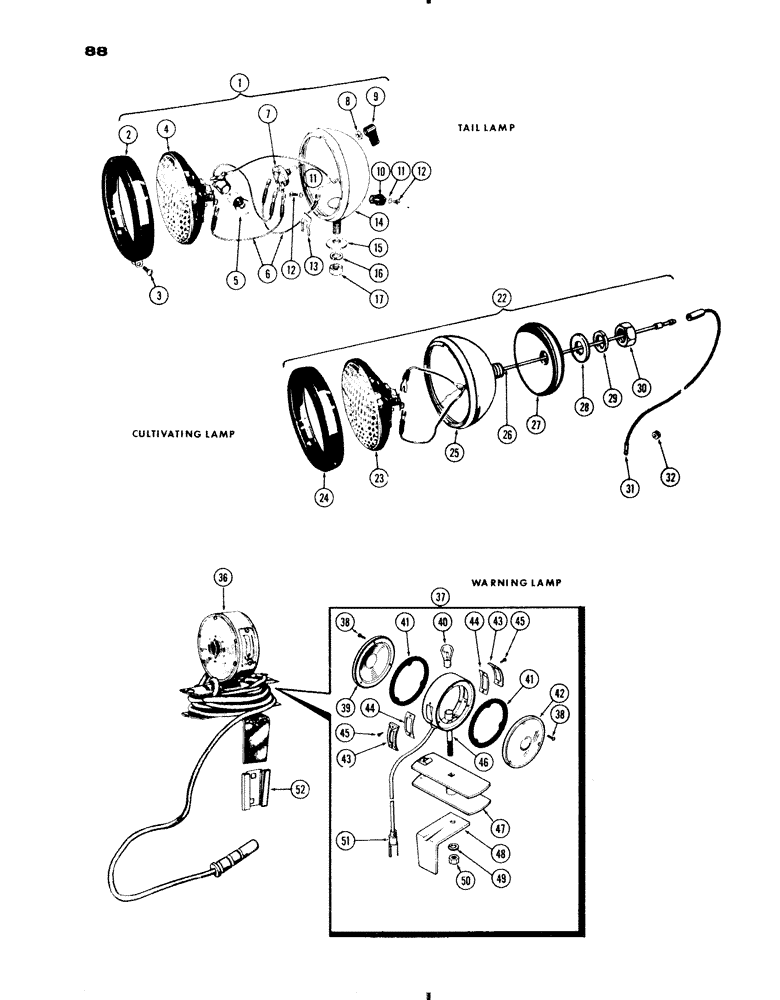

Запчасти Case IH 730 SERIES (088) - LIGHTING EQUIPMENT, TAIL LAMP, CULTIVATING LAMP, WARNING LAMP (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
A20965
LAMP BASE
LAMP ASSY. - tail, combination, Includes: Ref. 2 - 17
1шт.
2
B50255
MOLDING
- lamp
1шт.
3
10934
BRACKET,Rd Hd, #8 - 32 x 0.625", Stainless
SCREW - molding
1шт.
4
A40855
LAMP BASE
LAMP ASSY, - sealed unit (12 Volt) (Replaces B50335)
1шт.
5
B50223
BULB
- light, 15 c.p. (12-16 Volt)
1шт.
6
B50273
WIRE ASSY - lamp, inner
2шт.
7
B50275
SWITCH
ASSY. - lamp
1шт.
8
B50224
SPECIAL NUT
- retaining, switch
1шт.
9
B50310
SWITCH
KNOB - switch
1шт.
10
B50293
TERMINAL CONNECTOR
TERMINAL KIT - lamp, Includes: Ref. 11 - 13
1шт.
11
193-4
LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN
WASHER, LOCK, , Terminal screw Ext Tooth, #6
2шт.
12
173-73
SCREW,Sl Rnd Hd, #8 - 32 x 1/4"
- terminal
2шт.
13
10927
SPRING
- terminal
1шт.
14
NSS
NOT SOLD SEPARAT
BODY ASSY. - lamp (Order ref. 1)
1шт.
15
10923
WASHER
- bearing, lamp
1шт.
16
92-8
LOCK WASHER,1/2"
1шт.
17
25-118
NUT,1/2"-20, G5
- 1/2" N.C., hex.
1шт.
A33254M
ATTACHMENT - Includes: Ref. 22 - 32, cultivating lamp
1шт.
22
A32536
LAMP
ASSY. Includes: Ref. 23 - 26, cultivating
2шт.
23
D33182
LAMP
- sealed unit (12-16 Volt), cultivating
1шт.
24
D31441
RETAINER
RING - seal, lamp mtg., cultivating
1шт.
25
NSS
NOT SOLD SEPARAT
BODY ASSY. - lamp (Order ref. 22), cultivating
1шт.
26
NSS
NOT SOLD SEPARAT
WIRE - lamp, cultivating
1шт.
27
A32537
WASHER
- mtg. lamp, cultivating
2шт.
28
195-33
WASHER,1/2"
- (17/32 x 1-1/16 x 3/32"), cultivating lamp
2шт.
29
92-8
LOCK WASHER,1/2"
cultivating lamp 1/2"
2шт.
30
25-108
NUT,1/2"-13, G5
- 1/2" N.C. hex, cultivating lamp
2шт.
31
A32538
WIRE - lamp to connector (Red), cultivating
2шт.
32
A27338
GROMMET
- lamp wire, cultivating
2шт.
36
A11066M
ATTACHMENT - , Includes: Ref. 37 - 51, warning lamp
1шт.
37
A8178
LAMP ASSY. Includes: Ref. 38 - 51 warning, Iamp (Order ref. 36)
1шт.
38
281007
SCREW,Phillips Drive, Pan HD, #6 - 32 x 1/2"
- mtg., lens, #6 x 1/2" rd. hd., warning lamp
6шт.
39
B50337
LENS
- lamp (Amber), warning
1шт.
40
33686
BULB
- lamp, 21 c.p. (12 volt), warning
1шт.
41
B50317
GASKET - lens, warning lamp
2шт.
42
B53962
LENS
- lamp (Red), warning
1шт.
43
B50328
LENS - side, lamp, warning
2шт.
44
B50329
GASKET - side lens, lamp, warning
2шт.
45
182-43
SCREW - #6 x 5/16" pan hd., warning lamp
4шт.
46
NSS
NOT SOLD SEPARAT
BODY ASSY. - warning lamp (Order ref. 36)
1шт.
47
B50330
SPOOL - lamp, warning
1шт.
48
B50331
BRACKET - spool and lamp, warning
1шт.
49
92-7
LOCK WASHER,7/16"
warning lamp 7/16"
1шт.
50
25-117
NUT,7/16"-20, G5
- 7/16" N.F., hex., warning lamp
1шт.
51
B50259
PLUG
- lamp, warning
1шт.
52
A8179
SOCKET
- mtg., warning lamp
1шт.
Выбрано товаров: 46
