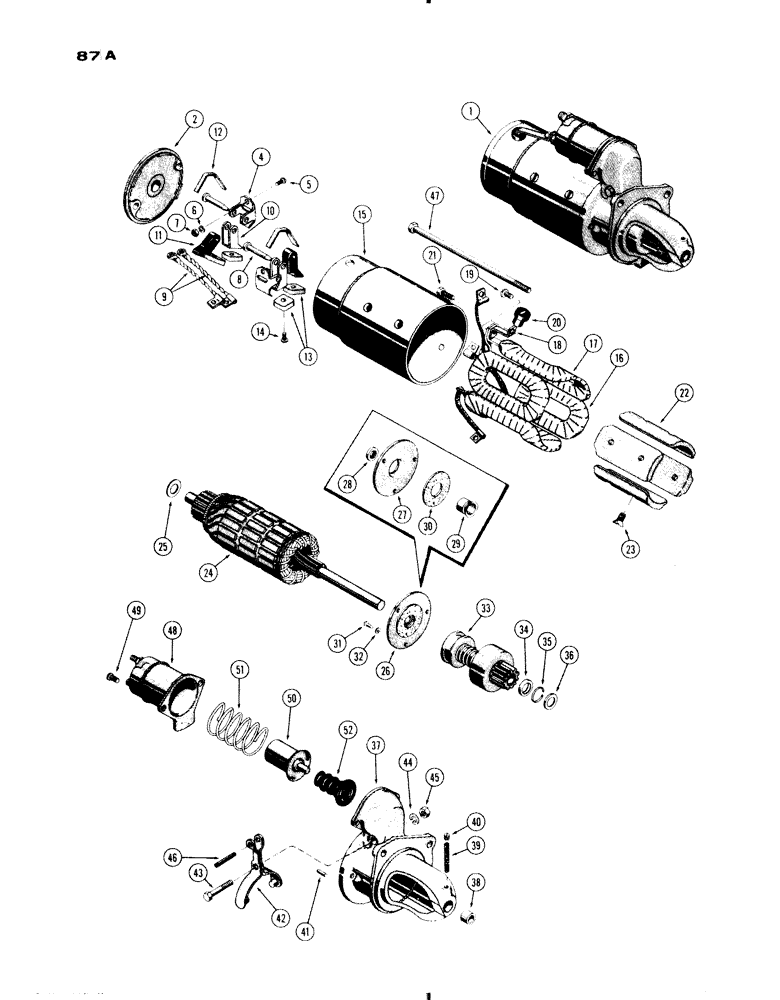

Запчасти Case IH 730 SERIES (087A) - A20873 STARTER, 251 AND 284 SPARK IGNITION ENGINES, USED PRIOR TO TRAC. S/N 8314293 (04) - ELECTRICAL SYSTEMS

1

A20873

STARTER ASSY. - (Delco-Remy #1107877) (Order A57092), Includes: Ref. 2 - 52

1шт.

2

A25302

FUNNEL

FRAME ASSY. - commutator end, w/bushing

1шт.

A25379

KIT

HOLDER KIT - brush, Includes: Ref. 4 - 9

2шт.

4

NSS

NOT SOLD SEPARAT

SUPPORT

1шт.

5

174-419

SCREW - support (#10 x 1/2" N.C., Phillips hd.)

2шт.

6

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

7

R15032

X

NUT - (#10-24 hex.)

2шт.

8

R15035

PIN

- brush holder

1шт.

9

A25368

LEAD - ground, brush

1шт.

10

A40217

HOLDER

- brush, grounded

2шт.

11

R15027

HOLDER

- brush, insulated

2шт.

12

A25359

SPRING

- brush

2шт.

13

A20893

BRUSH

- starter

4шт.

14

A41936

SCREW - brush holder

4шт.

15

NSS

NOT SOLD SEPARAT

FRAME - field (order ref. 1)

1шт.

16

A25317

COIL

ASSY. - field

1шт.

17

A25404

SHUNT - coil

2шт.

18

A25369

CONNECTOR -, Serial Range: coil-solenoid

1шт.

19

174-202

BOLT -, Serial Range: connector-coil

1шт.

20

A42070

GROMMET - field frame

1шт.

21

A42023

SCREW,#10 - 32 x 1/2"

-, Serial Range: connector,-solenoid

1шт.

22

A25390

SHOE - pole

4шт.

23

74-610

SCREW,3/8" - 24 x 5/8"

- pole shoe

8шт.

24

A25314

ARMATURE ASSY. - starter

1шт.

25

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- brake, comm. end

1шт.

26

A25549

PLATE

ASSY. - center bearing, Includes: Ref. 27 - 30

1шт.

27

NSS

NOT SOLD SEPARAT

PLATE - center bearing

1шт.

28

A25409

SEAL

SEAL - oil, ctr. brg. (3/4 x 1 x 1/8")

1шт.

29

A41933

BUSHING

- center brg.

1шт.

30

R15043

WASHER

GASKET - center brg.

1шт.

31

174-95

SCREW,Sl Rd Hd, #10 - 32 x 3/8"

- center bearing

3шт.

32

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Center bearing screw #10

3шт.

33

A41871

DRIVE

ASSY. - Bendix

1шт.

34

R15049

COLLAR

- pinion stop

1шт.

35

R15048

RING

- snap, collar retaining

1шт.

36

A25385

WASHER

- thrust, drive

1шт.

37

A25349

HOUSING ASSY. - drive end, Includes: Ref. 38 - 40

1шт.

38

A25389

BUSHING

- drive hsg. (1/2 x 5/8 x 13/16")

1шт.

39

R15129

WICK

- oil, drive hsg

1шт.

40

221-1041

PLUG

- pipe, oil wick hole

1шт.

41

R15041

PIN - locating, drive hsg.

1шт.

42

A40220

LEVER

- shifter

1шт.

43

A40520

BOLT

- shifter lever pivot

1шт.

44

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Pivot stud 5/16"

2шт.

45

129-42

NUT - pivot stud

1шт.

46

138-93

LOCK PIN,3/16" x 13/16", Slotted

Pin, , lever to solenoid 3/16" x 13/16", Slotted

1шт.

47

A41342

BOLT

- thru, starter

2шт.

48

G44891

SOLENOID

ASSY. (See Figure 87C)

1шт.

49

173-201

SCREW,Rnd Hd, 1/4" - 20 x 1/2"

BOLT - solenoid to drive hsg.

2шт.

50

A40218

PLUNGER

- solenoid

1шт.

51

A40221

SPRING

- plunger return

1шт.

52

A25410

BOOT

- solenoid

1шт.
