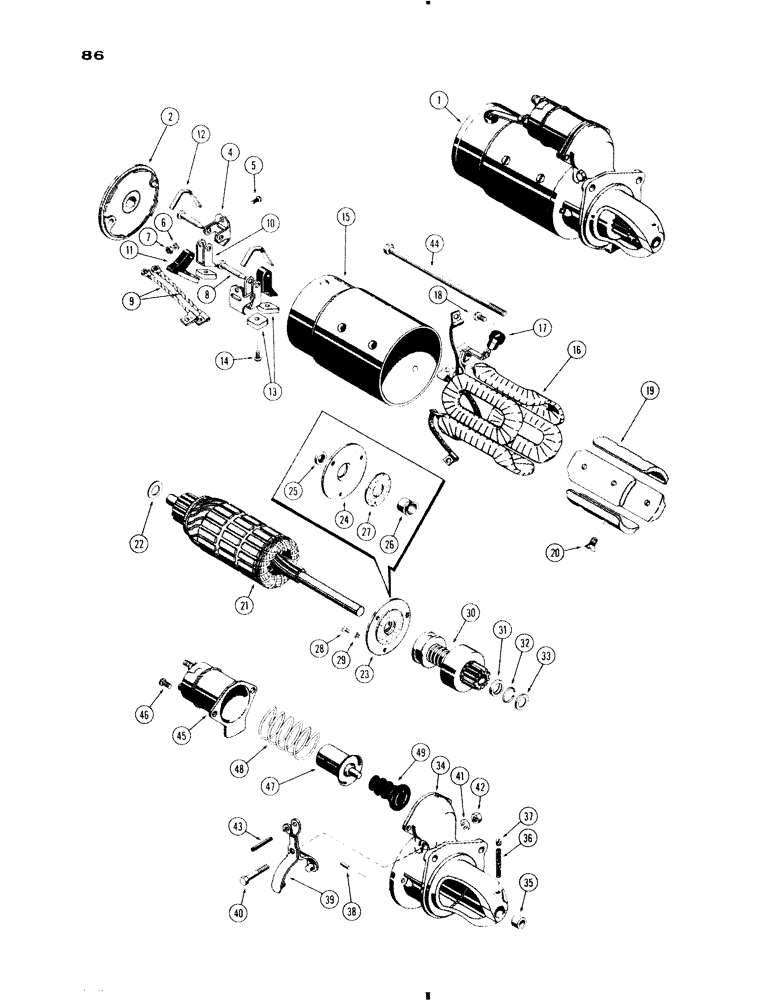

Запчасти Case IH 730 SERIES (086) - A57092 STARTER, 251 AND 284 SPARK IGNITION ENGINES, 1ST USED TRAC. S/N 8314293 (04) - ELECTRICAL SYSTEMS

1

A57092

X

STARTER ASSY. - (Delco-Remy #1108340), Includes: Ref. 2 - 49

1шт.

2

A25302

FUNNEL

FRAME ASSY. - commutator end, w/bushing

1шт.

A25379

KIT

HOLDER KIT - brush, Includes: Ref. 4 - 9

2шт.

4

NSS

NOT SOLD SEPARAT

SUPPORT

1шт.

5

174-419

SCREW - support (#10 x 1/2" N.C. Phillips hd.)

2шт.

6

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

WASHER, LOCK, #10

2шт.

7

R15032

X

NUT - (#10-24 hex.)

2шт.

8

R15035

PIN

- brush holder

1шт.

9

A25363

ELECTRICAL WIRE

LEAD - brush, ground wire

1шт.

10

A40217

HOLDER

- ground brush

2шт.

11

R15027

HOLDER

- insulated brush

2шт.

12

A25359

SPRING

- brush

2шт.

13

A20893

BRUSH

4шт.

14

41936

SCREW - brush holder

4шт.

15

NSS

NOT SOLD SEPARAT

FRAME - field (order ref. 1)

1шт.

16

A41345

COIL ASSY.

field

1шт.

17

A41935

GROMMET

- insulation, field frame

1шт.

18

A42023

SCREW,#10 - 32 x 1/2"

- field, Serial Range: connector-solenoid

1шт.

19

A40747

SHOE - pole

4шт.

20

74-610

SCREW,3/8" - 24 x 5/8"

- pole shoes

8шт.

21

A41343

ARMATURE

1шт.

22

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- brake, comm. end

1шт.

23

A25549

PLATE

ASSY. - center brg., Includes: Ref. 24 - 27

1шт.

24

NSS

NOT SOLD SEPARAT

PLATE - center bearing

1шт.

25

A25049

SEAL - oil (3/4 x 1 x 1/8")

1шт.

26

A41933

BUSHING

- center bearing

1шт.

27

R15043

WASHER

GASKET - center bearing

1шт.

28

R16175

SCREW - center bearing

4шт.

29

193-42

WASHER, LOCK,Ext-Int Tooth, #10

WASHER - ctr. brg. screw (#10 lock)

4шт.

30

A41871

DRIVE

ASSY. - Bendix

1шт.

31

R15049

COLLAR

- pinion stop

1шт.

32

R15048

RING

- snap, collar retaining

1шт.

33

A25385

WASHER

- thrust, drive

1шт.

34

A41344

HOUSING ASSY. - drive end, Includes: Ref. 35 - 37

1шт.

35

A25387

BEARING

BUSHING - (15/32 x 5/8 x 13/16")

1шт.

36

R15023

WICK

- oil

1шт.

37

221-1041

PLUG

- oil wick hole

1шт.

38

R15041

PIN - locating, drive housing

1шт.

39

A40220

LEVER

- shifter

1шт.

40

A40520

BOLT

- lever pivot

1шт.

41

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Pivot stud 5/16"

2шт.

42

129-42

NUT - pivot stud

1шт.

43

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, Shifter lever to plunger (3/16 x 13/16" roll)

1шт.

44

A41342

BOLT

- thru

2шт.

45

G44891

SOLENOID

ASSY. - (See Figure 87C)

1шт.

46

173-201

SCREW,Rnd Hd, 1/4" - 20 x 1/2"

BOLT - solenoid to drive hsg.

2шт.

47

A40218

PLUNGER

- solenoid

1шт.

48

A40221

SPRING

- plunger return

1шт.

49

A25410

BOOT

- solenoid

1шт.
