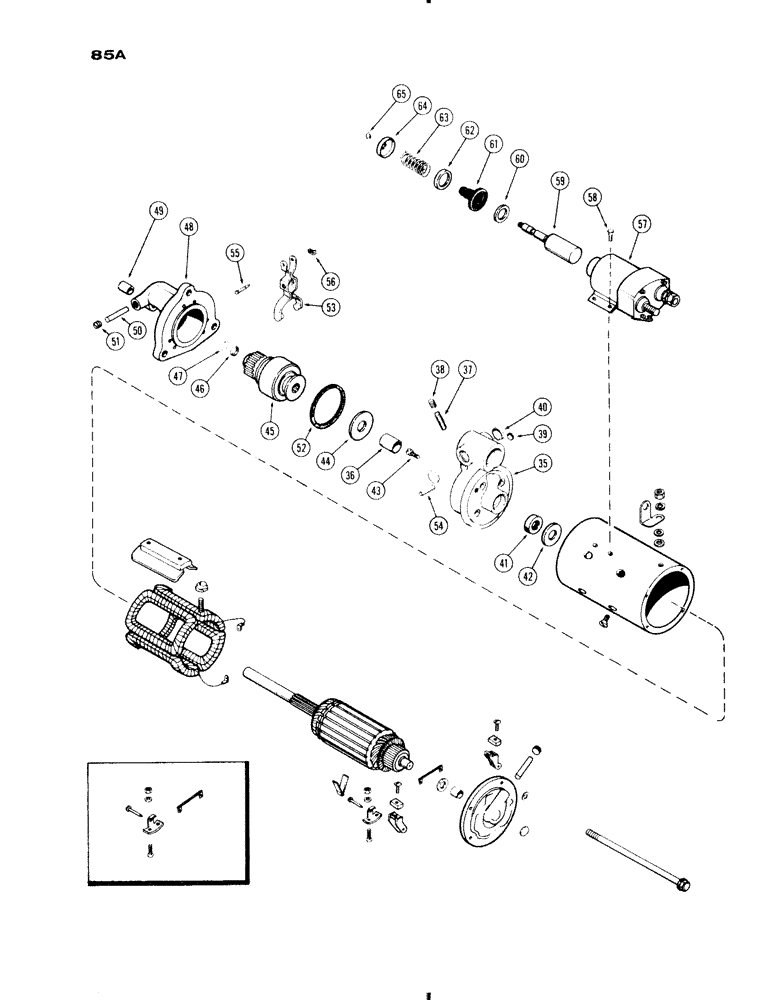

Запчасти Case IH 730 SERIES (085A) - A21281 STARTER, 267 AND 301 DIESEL ENGINES (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A21281
STARTING MOTOR
STARTER ASSY. - (continued from Figure 84), Includes: Ref. 35 - 65 and 1 -30 on Fig. 84
1шт.
35
A25405
HOUSING
HOUSING ASSY. - lever, Includes: Ref. 36 - 40
1шт.
36
A40944
BUSHING
BUSHING - lever housing
1шт.
37
A41417
WICK
WICK - oil, lever housing
1шт.
38
221-1041
PLUG
PLUG - pipe, oil wick hole
1шт.
39
A42009
SPARE PART PLUG - expansion, lever hsg. (1/2: dia.)
2шт.
40
A42013
PLUG
PLUG - expansion, lever hsg. (1-3/16" dia)
2шт.
41
A25407
OIL SEAL
SEAL - oil, lever housing
1шт.
42
A42202
WASHER
WASHER - spacer, lever hsg. & armature
1шт.
43
113-111
BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5
BOLT, , Lever & drive housing Hex, 5/16"-18 x 2 1/2", G5
4шт.
44
R15043
WASHER
WASHER - brake, lever hsg. & drive
1шт.
45
A25338
DRIVE
DRIVE ASSY. - Bendix
1шт.
45
87421542
REMAN-STARTER DRIVE
Drive Assy, Starter
1шт.
45
87421543
CORE-STARTER
Return Part Number
1шт.
46
R15049
COLLAR
COLLAR - pinion stop
1шт.
47
R15048
RING
RING - snap, pinion stop retainer
1шт.
48
A25347
SPARE PART HOUSING ASSY. - drive end, Includes: Ref. 49 - 51
1шт.
49
A40868
BUSHING
BUSHING - drive housing
1шт.
50
R15023
WICK
WICK - oil, drive housing
1шт.
51
221-1041
PLUG
PLUG - pipe, oil wick hole
1шт.
52
A41508
GASKET
GASKET - drive hsg. to lever hsg.
1шт.
53
A25398
LEVER
LEVER - shift, starter
1шт.
54
A25402
STUD
STUD - lever, pivot
1шт.
55
A25400
PIN
PIN -, Serial Range: lever-plunger
1шт.
56
A25406
OIL SEAL
RING - lever pin retaining
1шт.
57
A40461
IGNITION SWITCH
SOLENOID ASSY. - (See Figure 87C)
1шт.
58
R15139
WASHER
SPARE PART SCREW - solenoid attaching
4шт.
59
A25394
PLUNGER
PLUNGER - solenoid
1шт.
60
A42008
WASHER
WASHER - spring limit
1шт.
61
A42308
BOOT
BOOT - dust, solenoid
1шт.
62
R21572
RETAINER
RETAINER - plunger return spring, inner
1шт.
63
R21569
X
SPRING - return, plunger
1шт.
64
R21571
RETAINER
RETAINER - plunger return spring, outer
1шт.
65
G46146
SNAP RING,#37, Ext
RING - snap, , return spring retaining #37, Ext
1шт.
Выбрано товаров: 34
