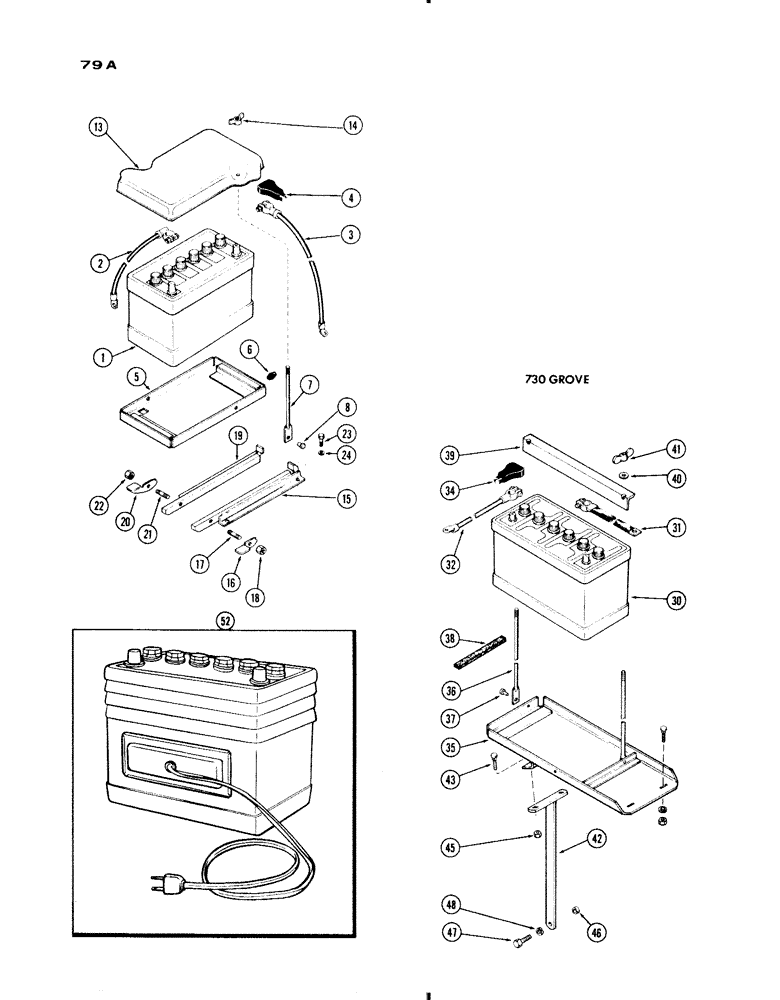

Запчасти Case IH 730 SERIES (079A) - BATTERY AND SUPPORT CABLES, 251 AND 284 SPARK IGNIT ENG, ALL 730 AND 830 EXCEPT GROVE, AND 730 GROVE (04) - ELECTRICAL SYSTEMS

1

D44175

DRY BATTERY

(DRY) (12 VOLT)

1шт.

2

A7441

CABLE

- battery ground (21"long)

1шт.

3

A21363

CABLE

- battery to starter (30" long)

1шт.

4

A27072

COVER

- cable (at bat. positive term)

1шт.

5

A11166

TRAY ASSY. - battery, Includes: Ref. 6 - 8

1шт.

6

A7369

BUMPER - tray

2шт.

7

A7368

STUD - battery hold down (3/8" N.C. x 9-3/8")

2шт.

8

151-203

RIVET - hold down stud (5/16 x 5/8" truss hd.)

2шт.

13

A23417

COVER

- battery

1шт.

14

129-410

WING NUT,3/8"-16

NUT - cover ret. (3/8" N.C. wing)

2шт.

15

A7386

SUPPORT ASSY. - tray, rear (std. clutch)

1шт.

15

A22812

SUPPORT ASSY. - tray, rear (Case-o-Matic), Includes: Ref. 16 - 18

1шт.

16

A7379

LATCH - tray lock

1шт.

17

A7391

STUD

- latch pivot (3/8" N.C./N.F. x 1-1/8")

1шт.

18

131-177

LOCK NUT,3/8"-24, GA

NUT - latch ref. (3/8" N.F. self locking)

1шт.

19

A7376

SUPPORT ASSY. - tray, front (std. clutch), Includes: Ref. 20 - 22

1шт.

19

A22808

SUPPORT ASSY. - tray, front (Case-o-Matic), Includes: Ref. 20 - 22

1шт.

20

A7378

LATCH - tray lock

1шт.

21

A7391

STUD

- latch pivot (3/8" N.C./N.F. x 1-1/8")

1шт.

22

131-177

LOCK NUT,3/8"-24, GA

NUT - latch ret. (3/8" N.F. self locking)

1шт.

23

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Support Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

24

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

30

D44175

DRY BATTERY

(DRY) (12 VOLT ), 730 grove

1шт.

31

A27069

CABLE

STRAP - battery ground (15" long), 730 grove

1шт.

32

A9168

CABLE

- battery to starter (48" long), 730 grove

1шт.

A22880

CLIP

- battery cable (not illust.), 730 grove

1шт.

34

A27072

COVER

- cable (at bat. positive term), 730 grove

1шт.

35

A23180

TRAY ASSY. - battery, Includes: Ref. 36 and 37, 730 grove

1шт.

36

A23183

STUD - battery hold down (3/8" N.C. x 10-3/8" ), 730 grove

2шт.

37

151-203

RIVET - hold down stud (5/16 x 5/8" truss hd.), 730 grove

2шт.

38

A7390

PAD - battery cushion (1-1/4 x 6-7/8 x 1/4" rubber), 730 grove

2шт.

39

A23184

ANGLE - battery hold down, 730 grove

1шт.

40

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 5/64"), 730 grove 3/8", SAE

2шт.

41

129-410

WING NUT,3/8"-16

NUT - (3/8" N.C. wing), 730 grove

2шт.

42

A33775

SUPPORT - battery tray, 730 grove

1шт.

43

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Tray, 730 grove Short NK, 3/8"-16 x 1", G2

4шт.

45

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , 730 grove 3/8"-16, G5

4шт.

46

A21758

BUSHING

SPACER - support (5/8 x 27/32 x 3/8"), 730 grove

1шт.

47

15-888

BOLT

- support (1/2 x 5-1/2" N.C. hex.), 730 grove

1шт.

48

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , 730 grove 1/2"

1шт.

52

M20509

HEATER

ASSY. - (side mounted type), battery

1шт.
