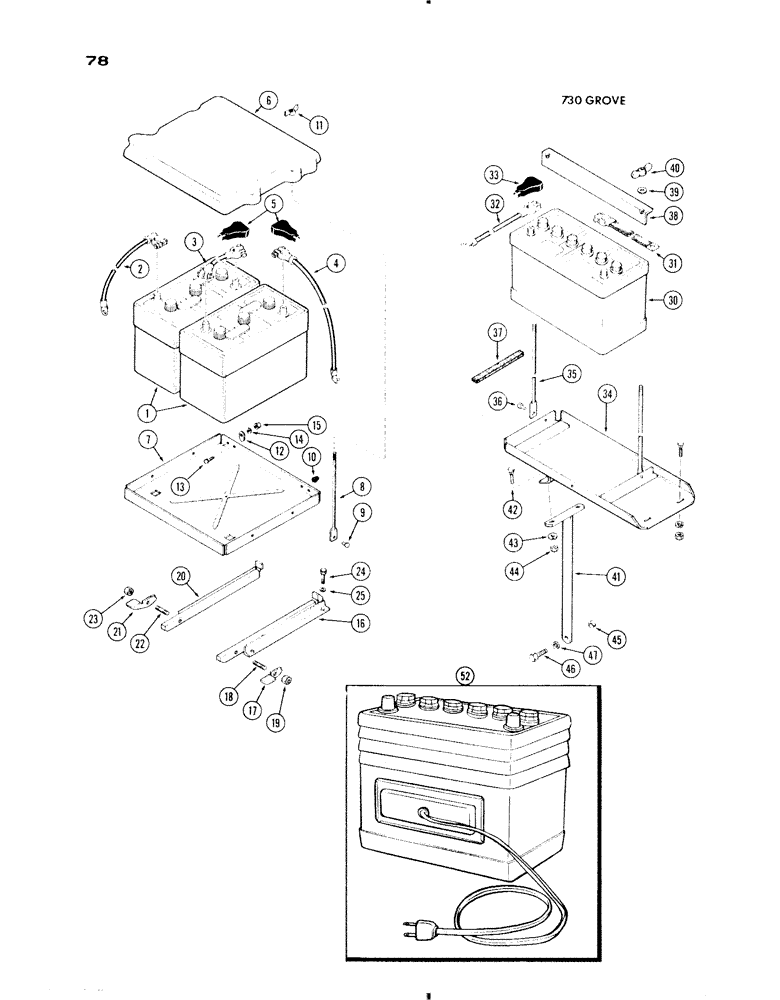

Запчасти Case IH 730 SERIES (078) - BATTERY AND SUPPORT CABLES, 267 AND 301 DIESEL ENGINES, ALL 730 AND 830 EXCEPT GROVE, AND 730 GROVE (04) - ELECTRICAL SYSTEMS

1

F53478

DRY BATTERY

(DRY) (6 volt)

2шт.

2

A7441

CABLE

- battery ground (21" long)

1шт.

3

A7440

CABLE

- battery to battery (8-7/8" long)

1шт.

4

A23024

CABLE

- battery to starter (33" long)

1шт.

5

A27072

COVER

- cable (at bat. positive term.)

2шт.

6

A7382

COVER - battery

1шт.

7

A7370

TRAY ASSY. - battery, Includes: Ref. 8 - 10

1шт.

8

A7368

STUD - battery hold down (3/8" N.C. x 9-3/8")

4шт.

9

151-203

RIVET - hold down stud (5/16 x 5/8" truss hd.)

4шт.

10

A7369

BUMPER - tray

2шт.

11

129-410

WING NUT,3/8"-16

NUT - cover ret. (3/8" N.C. wing)

4шт.

12

A7584

STOP - battery tray

2шт.

13

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Stop Short NK, 5/16"-18 x 3/4", G2

2шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

2шт.

16

A7377

SUPPORT ASSY. - tray, rear (std. clutch)

1шт.

16

A22810

SUPPORT ASSY. - tray, rear (Case-o-Matic), Includes: Ref. 17 - 19

1шт.

17

A7379

LATCH - tray lock

1шт.

18

A7391

STUD

- latch pivot (3/8" N.C./N.F. x 1-1/8")

1шт.

19

131-177

LOCK NUT,3/8"-24, GA

NUT - latch ret. (3/8" N.F. self-locking)

1шт.

20

A7376

SUPPORT ASSY. - tray, front, (std. clutch), Includes: Ref. 21 - 23

1шт.

20

A22808

SUPPORT ASSY. - tray, front (Case-o-Matic), Includes: Ref. 21 - 23

1шт.

21

A7378

LATCH - tray lock

1шт.

22

A7391

STUD

- latch pivot (3/8" N.C./N.F. x 1-1/8")

1шт.

23

131-177

LOCK NUT,3/8"-24, GA

NUT - latch ret. (3/8" N.F. self locking)

1шт.

24

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Support Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

25

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

30

A38411

DRY BATTERY

(DRY) (12 volt), 730 grove

1шт.

31

A27069

CABLE

STRAP - battery ground (15" long), 730 grove

1шт.

32

A9168

CABLE

- battery to starter (48" long), 730 grove

1шт.

33

A27072

COVER

- cable (at bat. positive term.), 730 grove

1шт.

34

A23180

TRAY ASSY. - battery, Includes: Ref. 35 and 36, 730 grove

1шт.

35

A23183

STUD - battery hold down (3/8" N.C. x 10-3/8"), 730 grove

2шт.

36

151-203

RIVET - hold down stud (5/16 x 5/8" truss hd.), 730 grove

2шт.

37

A7390

PAD - battery cushion (1-1/4 x 6-7/8 x 1/4" rubber), 730 grove

2шт.

38

A23184

ANGLE - battery hold down, 730 grove

1шт.

39

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 5/64"), 730 grove 3/8", SAE

2шт.

40

129-410

WING NUT,3/8"-16

NUT - (3/8" N.C. wing), 730 grove

2шт.

41

A33775

SUPPORT - battery tray, 730 grove

1шт.

42

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Tray, 730 grove Short NK, 3/8"-16 x 1", G2

4шт.

43

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 730 grove 3/8"

4шт.

44

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , 730 grove 3/8"-16, G5

4шт.

45

A21758

BUSHING

SPACER - support (5/8 x 27/32 x 3/8"), 730 grove

1шт.

46

15-888

BOLT

- support (1/2 x 5-1/2" N.C. hex.), 730 grove

1шт.

47

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , 730 grove 1/2"

1шт.

52

M20509

HEATER

ASSY. - (side mounted type), battery

1шт.
