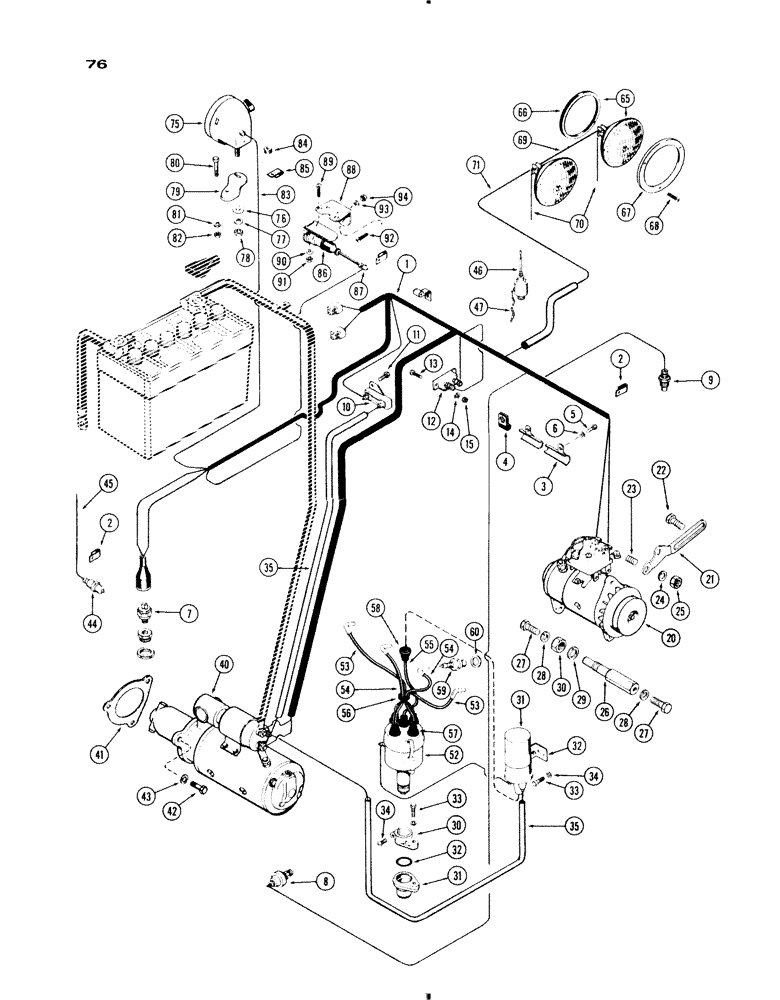

Запчасти Case IH 730 SERIES (076) - ELECTRICAL EQUIPMENT AND WIRING, 251 AND 284 SPARK IGNITION ENGINES (04) - ELECTRICAL SYSTEMS

1

A34864

HARNESS ASSY. - main wire (for tractors w/flashing warning lamp)

1шт.

1

A32530

HARNESS ASSY. - main wire (for tractors w/out flashing warning lamp)

1шт.

2

A22880

CLIP

- wires

1шт.

3

A7532

CONDUIT - wire (See ref. 4 & order as required)

1шт.

4

A20541

CLIP

- wire (See ref. 3 & order as required)

2шт.

5

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

Conduit or clip Hex, 5/16"-18 x 1/2", G5, Full Thd

2шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

7

A20990

SWITCH

- safety, neutral start

1шт.

8

A13794

TRANSMITTER

UNIT - sending, eng. oil pressure

1шт.

9

A21462

SENDER UNIT

UNIT - sending, engine temperature

1шт.

10

A24504

RESISTOR

- primary circuit

1шт.

11

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

Resistor Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

12

A22877

BREAKER,40A

- circuit (40 amp)

1шт.

13

173-77

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- breaker (#8 x 1/2" N.C. rd. hd.)

2шт.

14

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

15

129-16

NUT,#8-32

2шт.

20

A42000

GENERATOR

ASSY. - (See Figure 82) (Replaces A33983)

1шт.

21

A21538

STRAP

- generator adjusting

1шт.

22

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - adj. strap (5/16 x 3/4" N.C. sckt. hd.)

1шт.

23

A7391

STUD

- adjusting strap (3/8" N.C./N.F. x 1-1/8")

1шт.

24

92-6

LOCK WASHER,3/8"

1шт.

25

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N.F. hex.)

1шт.

26

A34887

CARRIER

- gen. mtg. (tapped for 2" bolt) (1st used eng. ser. no. 2147398)

1шт.

26

A22685

X

CARRIER - gen. mtg. (tapped for 1" bolt) (order 1-A34877 carrier & 2-114-233 bolts) (used prior to eng. ser. no. 2147398)

1шт.

27

25774R1

BOLT,Hex, 3/8" - 24 x 2", Gr 8

- (used w/A34877 carrier) (3/8 x 2" N.F. hex.)

2шт.

27

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- (used w/A22685 carrier) (3/8 x 1" N.F. hex.)

2шт.

28

92-6

LOCK WASHER,3/8"

2шт.

29

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

30

25-1112

NUT,3/4"-16, G5

- carrier lock (3/4" N.F. hex.)

1шт.

31

A40778

COIL

ASSY - ignition (less clamp)

1шт.

32

G46106

BRACKET

CLAMP - ignition coil

1шт.

33

75-510

HANDBOOK

SCREW - coil (5/16 x 1-1/4" N.C. rd. hd.)

2шт.

34

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

35

A22879

WIRE - resistor & coil to starter (18" long)

2шт.

40

A20873

STARTER ASSY. - (See Figure 87A)

1шт.

41

A27933

GASKET

- starter

1шт.

42

A10009

SCREW,Stud, Hex, 1/2" - 13 x 1 1/4", Nylon Insert

BOLT - starter (C-o-M)(1/2 x 1-1/4" N.C. hex. spec)

2шт.

42

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5, Starter (Std. Trans.)

2шт.

42

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Starter (730 Grove) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

43

92-8

LOCK WASHER,1/2"

2шт.

44

A33241

SWITCH

- converter temp. warning

1шт.

45

A32534

WIRE - temp. switch (37" long)

1шт.

46

A40296

SOLENOID ASSY. - carb. (730 Grove) (See Figure 54)

1шт.

47

A33321

WIRE - solenoid to resistor (730 Grove) (19" long)

1шт.

52

A24508

DISTRIBUTOR

ASSY. (Prestolite or Autolite #4402) (see Figure 80)

1шт.

52

A57081

DISTRIBUTOR

ASSY. (Prestolite or Autolite #4404) (see Figure 81A)

1шт.

52

A24506

DISTRIBUTOR

ASSY. (Prestolite or Autolite #4403) (see Figure 81C)

1шт.

53

A20143

ELECTRICAL WIRE

WIRE - distributor to #1 & #4 spark plugs (15" long)

2шт.

54

A20144

ELECTRICAL WIRE

WIRE - distributor to #2 & #3 spark plugs (11" long)

2шт.

55

A29180

CABLE

WIRE - distributor to coil (hi-tension) (12" long)

1шт.

56

A23258

RING - tie, hi-tension wires

1шт.

57

A29338

COVER

NIPPLE - hi-tension wires (distributor)

5шт.

58

G46803

BOOT

NIPPLE - hi-tension wire (ignition coil)

1шт.

59

G44840

SPARK PLUG

ASSY. (gas), Includes: Ref. 60

4шт.

59

A20905

SPARK PLUG

ASSY. (L.P.), Includes: Ref. 60

4шт.

60

G46839

GASKET

- spark plug

1шт.

65

A24572

LAMP

HEAD LAMP ASSY., Includes: Ref. 66

2шт.

66

A111276

GASKET - head lamp

1шт.

67

A11275

RING

- head lamp retaining

2шт.

68

187-1102

SELF-TAP SCREW,#6 x 1/2"

SCREW - ret. ring ( N.C., rh. hd.) #6 x 1/2"

6шт.

69

A11764

WIRE - head lamp jumper (16" long)

1шт.

70

A33439

WIRE - ground, head lamp (12" long)

2шт.

71

A11943

WIRE - head lamp to harness (21" long)

1шт.

75

A20965

LAMP BASE

TAIL LAMP ASSY. (see Figure 88)

1шт.

76

B50231

X

WASHER - bearing, lamp

1шт.

77

92-8

LOCK WASHER,1/2"

1шт.

78

25-118

NUT,1/2"-20, G5

- (1/2" N.C. hex.)

1шт.

79

A34046

BRACKET

- tail lamp mounting

1шт.

80

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5, Bracket

1шт.

81

92-5

LOCK WASHER,5/16"

1шт.

82

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

1шт.

83

A32539

WIRE - tail lamp to harness (68" long)

1шт.

84

A27338

GROMMET

- tail lamp wire

2шт.

85

A27483

CLIP - tail lamp wire

4шт.

86

A8170

SOCKET

ASSY. - auxiliary outlet

1шт.

87

A34809

WIRE - auxiliary socket

1шт.

88

A27752

BEARING

BRACKET - auxiliary socket mounting

1шт.

89

173-237

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

- socket to brkt. (#10 x 1/2" N.F. rd. hd.)

2шт.

90

192-107

LOCK WASHER,#10

WASHER - ( lock) #10

2шт.

91

129-27

NUT,Hex, #10 - 32

- (#10 N.F. hex.)

2шт.

92

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- bracket (5/16 x 1-1/2" N.C. hex)

1шт.

93

193-45

WASHER,Ext-Int Tooth, 5/16"

- (5/16" lock)

1шт.

94

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

1шт.
