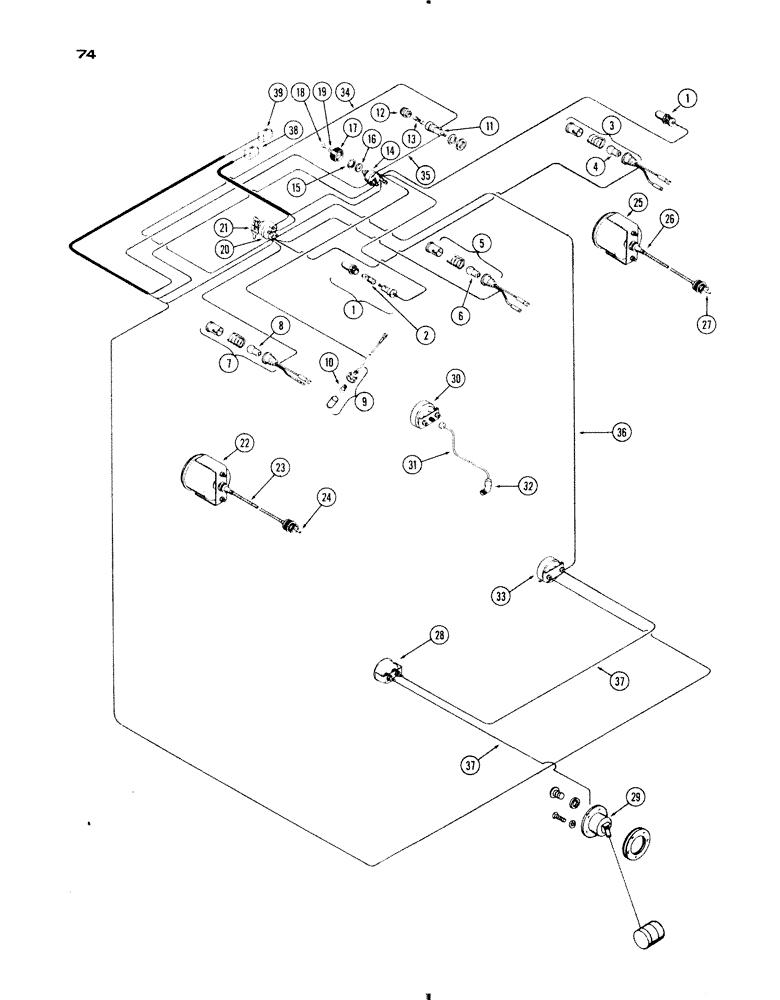

Запчасти Case IH 730 SERIES (074) - INSTRUMENTS AND WIRING, 251 AND 284 SPARK IGNITION ENGINES (04) - ELECTRICAL SYSTEMS

1

A24087

LAMP BASE

LAMP ASSY. - instrument panel, Includes: Ref. 2

2шт.

2

A22349

BULB

- panel lamp

1шт.

3

A24085

LAMP

ASSY. - generator warning, Includes: Ref. 4

1шт.

4

A24354

BULB

- gen. warning lamp

1шт.

5

A32145

LAMP BASE

LAMP ASSY. - torque converter, Includes: Ref. 6

1шт.

6

A24354

BULB

- torque converter lamp

1шт.

7

A24084

LAMP

ASSY - engine oil pressure, Includes: Ref. 8

1шт.

8

A24354

BULB

- eng. oil pressure lamp

1шт.

9

A24086

LAMP

ASSY. - gear shift indicator, Includes: Ref. 10

1шт.

10

A22349

BULB

- gear shift lamp

1шт.

11

A22874

HOLDER

ASSY - fuse, Includes: Ref. 12

1шт.

12

A10958

CAP

- fuse holder

1шт.

13

223-20

FUSE,20 Amp, Type SFE

- (20 amps)

1шт.

14

A20620

SWITCH

ASSY. - lights, Includes: Ref. 15 - 19

1шт.

15

A20467

NUT

- switch ret.

1шт.

16

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER - ret. nut (5/8" int. skpf.)

1шт.

17

A20465

KNOB

- light switch control

1шт.

18

A20468

SCREW,Spcl, #8 - 32 x 5/16"

- control knob ret.

1шт.

19

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

WASHER - lock, , Ret. screw #8

1шт.

20

A24511

SWITCH

ASSY - ignition, w/key (Gas) Includes: Ref 21

1шт.

21

A24509

KEY

- ignition switch (Set of 2)

2шт.

22

A57179

TACHOMETER

(830 Series) (Replaces A32143)

1шт.

22

A57178

TACHOMETER

/SPEEDOMETER (730 Series) (Replaces A33270)

1шт.

23

A24251

CABLE ASSY.

- tachometer (56-1/2" long), Includes: Ref. 24

1шт.

24

A24523

KIT

CORE KIT - (core, tip, die & inst. sheet)

1шт.

25

A32146

TACHOMETER

SPEEDOMETER (830 series)

1шт.

26

A24252

HOUSING

CABLE ASSY. - speedometer (28" long), Includes: Ref. 27

1шт.

27

A24523

KIT

CORE KIT - (core, tip, die & inst. sheet)

1шт.

28

A24079

GAUGE ASSY.

- fuel

1шт.

29

A23481

SENDER UNIT

UNIT - sending, engine fuel

1шт.

30

A33982

ELECTRICAL GAUGE

GAUGE - clutch pressure (Case-o-Matic)

1шт.

31

A9366

TUBE

- clutch pressure

1шт.

32

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

- clutch pressure tube

1шт.

33

A24080

GAUGE

- engine temperature

1шт.

34

A22876

ELECTRICAL WIRE

WIRE - fuse to ignition switch (8-1/2" long)

1шт.

35

A22875

ELECTRICAL WIRE

WIRE - fuse to light switch (4" long) (used on trac. not equipped w/flashing warning) (See Fig. 89C)

1шт.

36

A24078

ELECTRICAL WIRE

WIRE - eng. temp. gauge to ign. switch (15" long)

1шт.

37

A11783

ELECTRICAL WIRE

WIRE - fuel gauge to sender & temp. gauge (13" long)

2шт.

38

A24076

PLUG

HARNESS ASSY. - (w/red plug)

1шт.

39

A21613

HARNESS

ASSY. - (w/black plug)

1шт.
