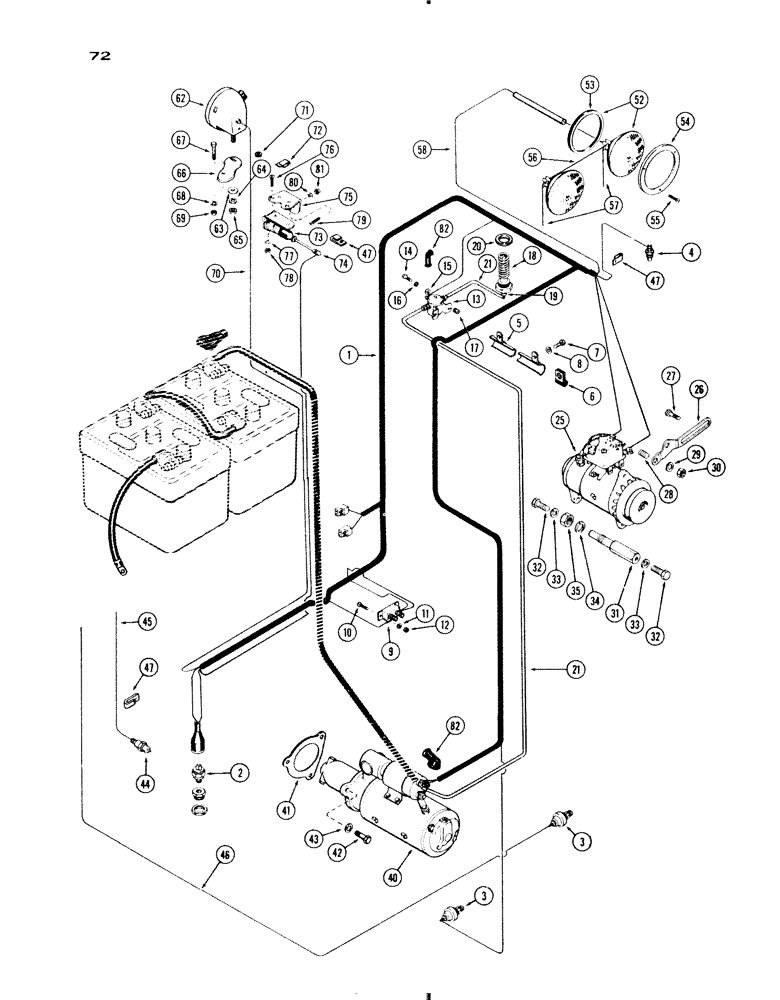

Запчасти Case IH 730 SERIES (072) - ELECTRICAL EQUIPMENT AND WIRING, 267 AND 301 DIESEL ENGINES (04) - ELECTRICAL SYSTEMS

1

A34864

HARNESS ASSY. - main frame (for tractors w/flasher warning lamp)

1шт.

1

A32530

HARNESS ASSY. - main wire (for tractors w/out flasher warning lamp)

1шт.

2

A20990

SWITCH

- safety, neutral start

1шт.

3

A13794

TRANSMITTER

UNIT - sending, fuel & oil pressure

2шт.

4

A21462

SENDER UNIT

UNIT - sending, eng. temperature

1шт.

5

A7532

CONDUIT - wire (See ref. 6 & order as required)

1шт.

6

A20541

CLIP

- wire (See ref. 5 & order as required)

2шт.

7

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

Conduit or clip Hex, 5/16"-18 x 1/2", G5, Full Thd

2шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

9

A22877

BREAKER,40A

- circuit (40 amp)

1шт.

10

173-77

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- breaker (#8 x 1/2" N.C., rd. hd.)

2шт.

11

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

WASHER - lock, #8

1шт.

12

129-16

NUT,#8-32

2шт.

13

A57069

SOLENOID

- heater (replaces A21481)

1шт.

14

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

Solenoid Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

15

95-4

WASHER,1/4"

- (5/16 x 3/4 x 1/16")

2шт.

16

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

17

25-104

NUT,1/4"-20, G5

2шт.

18

A37775

HEATER

ASSY. - intake manifold (Replaces A24396), Includes: Ref. 19

1шт.

19

129-503

NUT,1/4"-20, Brass

1шт.

20

A20916

MANIFOLD GASKET

GASKET - manifold heater

1шт.

21

A21483

CABLE

- solenoid to starter & heater (23-1/2" long)

2шт.

25

A42000

GENERATOR

ASSY. - (See Figure 82) (Replaces A33983)

1шт.

26

A21538

STRAP

- generator adjusting

1шт.

27

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - adj. strap (5/16 x 3/4" N.C., ctsk. sckt. hd.)

1шт.

28

A7391

STUD

- adj. strap (3/8" N.C./N.F. x 1-1/8")

1шт.

29

92-6

LOCK WASHER,3/8"

1шт.

30

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N.F. hex.)

1шт.

31

A34887

CARRIER

- gen. mtg. (tapped for 2" bolt) (lst used eng. ser. no. 2147398)

1шт.

31

A22685

X

CARRIER - gen. mtg. (tapped for 1" bolt) (Order a-A34877 carrier & 2-114-233 bolts) (used prior to eng. ser., no. 214398)

1шт.

32

25774R1

BOLT,Hex, 3/8" - 24 x 2", Gr 8

- (used w/A34887 carrier) (3/8 x 2" N.F. hex.)

2шт.

32

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- (used w/A22685 carrier) (3/8 x 1" N.F. hex.)

2шт.

33

92-6

LOCK WASHER,3/8"

2шт.

34

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

35

25-1112

NUT,3/4"-16, G5

- carrier (3/4" N.F. hex.)

1шт.

40

A21281

STARTING MOTOR

STARTER ASSY. (See Figure 84)

1шт.

41

A27933

GASKET

- starter

1шт.

42

A10009

SCREW,Stud, Hex, 1/2" - 13 x 1 1/4", Nylon Insert

BOLT - starter (C-O-M)(1/2 x 1-1/4" N.C. hex., spec.)

2шт.

42

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5, Starter (Std. Trans.)

3шт.

42

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Starter (730 Grove) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

43

92-8

LOCK WASHER,1/2"

1шт.

44

A33241

SWITCH

- converter temp. warning

1шт.

45

A32534

WIRE - temp. conv. switch (37" long)

1шт.

46

A32532

WIRE - fuel pressure switch (60" long)

1шт.

47

A22880

CLIP

- wires

1шт.

52

A24572

LAMP

HEAD LAMP ASSY., Includes: Ref. 53

2шт.

53

A11276

GASKET

- head lamp

1шт.

54

A11275

RING

- head lamp retaining

2шт.

55

187-1102

SELF-TAP SCREW,#6 x 1/2"

SCREW - ret. ring ( N.C. rd. hd.) #6 x 1/2"

6шт.

56

A11764

WIRE - jumper, head lamp (16" long)

1шт.

57

A33439

WIRE - ground, head lamp (12" long)

2шт.

57

A11768

ELECTRICAL WIRE

WIRE - ground, head lamp (730 Grove) (4" long)

1шт.

58

A11943

WIRE - head lamp to harness (21" long)

1шт.

62

A20965

LAMP BASE

TAIL LAMP ASSY. - (see page 89)

1шт.

63

B50231

X

WASHER - bearing, lamp

1шт.

64

92-8

LOCK WASHER,1/2"

1шт.

65

25-118

NUT,1/2"-20, G5

- (1/2" N.C. hex.)

1шт.

66

A34046

BRACKET

- tail lamp mounting

1шт.

67

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5, Bracket

1шт.

68

92-5

LOCK WASHER,5/16"

1шт.

69

9635082

NUT,5/16" - 18, Gr 5

(5/16" N.C. hex.)

1шт.

70

A32539

WIRE - tail lamp to harness (68" long)

1шт.

71

A27338

GROMMET

- tail lamp wire

2шт.

72

A27483

CLIP - tail lamp wire

1шт.

73

A8170

SOCKET

ASSY. - auxiliary outlet

1шт.

74

A24809

PUMP

WIRE - auxiliary socket

1шт.

75

A27752

BEARING

BRACKET - aux. socket mounting

1шт.

76

173-237

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

- socket to brkt. (#10 x 1/2" N.F. rd. hd.)

2шт.

77

192-107

LOCK WASHER,#10

WASHER - ( lock) #10

2шт.

78

129-27

NUT,Hex, #10 - 32

- (#10 N.F. hex.)

2шт.

79

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- bracket (5/16 x 1-1/2" N.C. hex)

1шт.

80

193-45

WASHER,Ext-Int Tooth, 5/16"

- (5/16" lock)

1шт.

81

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

1шт.

82

A21753

CAP

BOOT - cable terminal

2шт.
