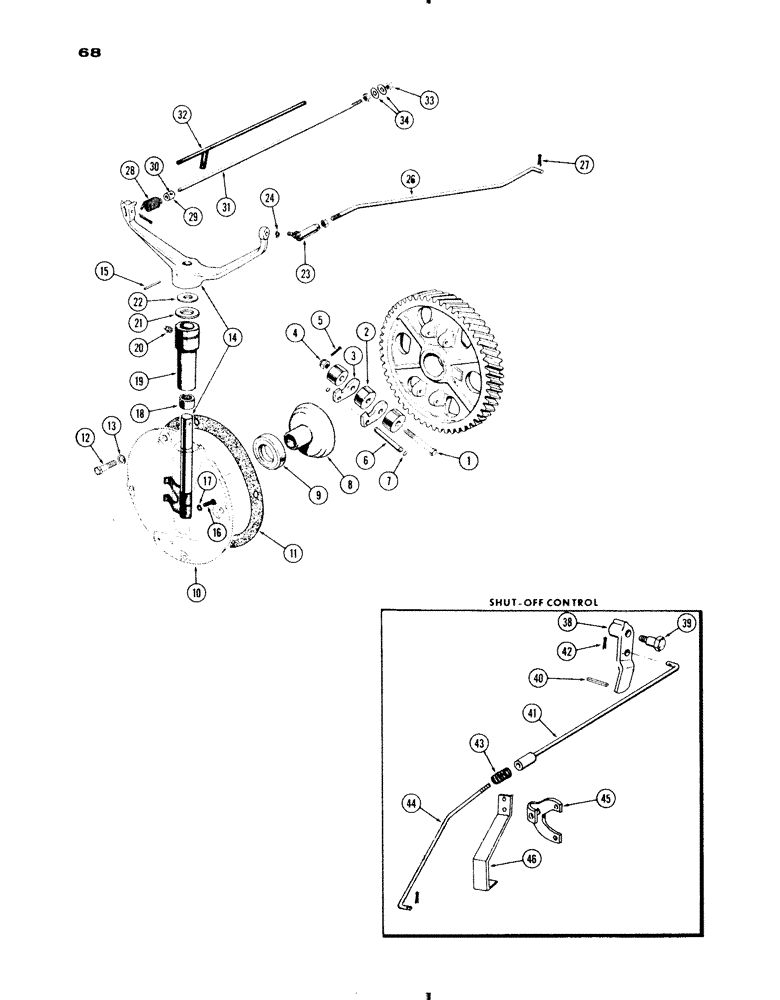

Запчасти Case IH 730 SERIES (068) - GOVERNOR, 251 AND 284 SPARK IGNIT ENG., SHUT OFF CONTROL, 251 AND 284 SPARK IGNIT ENG, EXCEPT GROVE (03) - FUEL SYSTEM

1

A11693

BOLT - finger & weight pivot (5/16 x 2-1/4" N.F. spec.)

2шт.

2

A7277

WEIGHT

- governor

6шт.

3

A33471

KIT

FINGER KIT - governor (Set of 4)

1шт.

4

25-235

SLOTTED NUT

NUT - (5/16" N.F. hex., stld.)

2шт.

5

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

6

A7282

PIN,6.31mm OD x 47.63mm L

- bell, Serial Range: sleeve-fingers

2шт.

7

A7111

SNAP RING,#25, Ext

RING - snap, , bell sleeve pins #25, Ext

4шт.

8

A7284

SLEEVE - gov. bell

1шт.

9

A7285

THRUST BEARING,1.0675" ID x 40574" OD x 5"

BEARING - thrust, bell

1шт.

10

A20883

X

COVER ASSY. - governor

1шт.

11

A27867

GASKET

- cover

1шт.

12

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

12

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Cover Hex, 3/8"-16 x 1 1/8", G5, Full Thd

3шт.

13

92-6

LOCK WASHER,3/8"

4шт.

14

A20838

SHAFT

LEVER ASSY. - governor, Includes: Ref. 15 - 17

1шт.

15

138-101

LOCK PIN,3/16" x 1 5/8", Slotted

PIN, LOCK, , Shaft retaining 3/16" x 1 5/8", Slotted

1шт.

16

174-99

SCREW,Sl Rnd Hd, #10 - 32 x 5/8"

- finger ret. (#10-32 x 5/8" rd. hd.)

2шт.

17

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

18

A7290

NEEDLE BEARING,Needle, 14.29mm ID x 19.05mm OD x 12.7mm W

BEARING - needle

2шт.

19

A20835

SLEEVE - bearings

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.)

1шт.

21

A7292

SEAL

- oil (29/32" x 1-23/64" x 1/16" rubber)

1шт.

22

A7293

WASHER

- thrust (37/64 x 1-1/8 x 1/16" copper)

1шт.

23

A10326

BALL JOINT

JOINT - ball, Serial Range: rod-lever

1шт.

24

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

26

A24307

ROD

- gov. to carb. (Replaces A21230)

1шт.

27

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

28

A20868

SPRING

- gov. (Std. Trans. w/1700 RPM) (1-9/16" free length) (blue)

1шт.

28

A20966

SPRING

- gov. (Torque Conv. w/1900 RPM) (1-5/8" free length) (White stripe)

1шт.

29

A20846

COLLAR

- stop, throttle rod

1шт.

30

84-44

SET SCREW,Hex Soc, 1/4"-28 x 1/4"

SCREW - collar (1/4 x 1/4" N.C. sckt. hd.)

1шт.

31

A20841

ROD - throttle, front (All 730 & 830 except Grove)

1шт.

32

A23188

ROD - throttle, front (730 Grove)

1шт.

33

25-116

NUT,Hex, 3/8"-24, G5

- rod (3/8" N.F. hex.)

2шт.

34

95-6

WASHER,3/8"

- (7/16 x 1-1/8 x 1/16")

2шт.

38

A24306

CAM

- shut-off control (251 & 284) spark ignition (except grove)

1шт.

39

A21774

BOLT - cam pivot, shut-off control (251 & 284) spark ignition (except grove)

1шт.

40

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN - cam stop (1/8 x 3/8" roll), shut-off control (251 & 284) spark ignition (except grove)

1шт.

41

A21772

ROD - eng. shut-off, front, control (251 & 284) spark ignition (except grove)

1шт.

42

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), , Shut-off control (251 & 284) spark ignition (except grove) 1/16" x 1/2"

2шт.

43

A26685

SPRING - rear shut-off rod, control (251 & 284) spark ignition (except grove)

1шт.

44

A32583

ROD - eng. shut-off, rear, control (251 & 284) spark ignition (except grove)

1шт.

45

A21769

SUPPORT - shut-off rod (Gen. Pur. & Hi-Cir.), control (251 & 284) spark ignition (except grove)

1шт.

46

A22159

SUPPORT - shut-off rod(4 Wheel & Western), control (251 & 284) spark ignition (except grove)

1шт.
