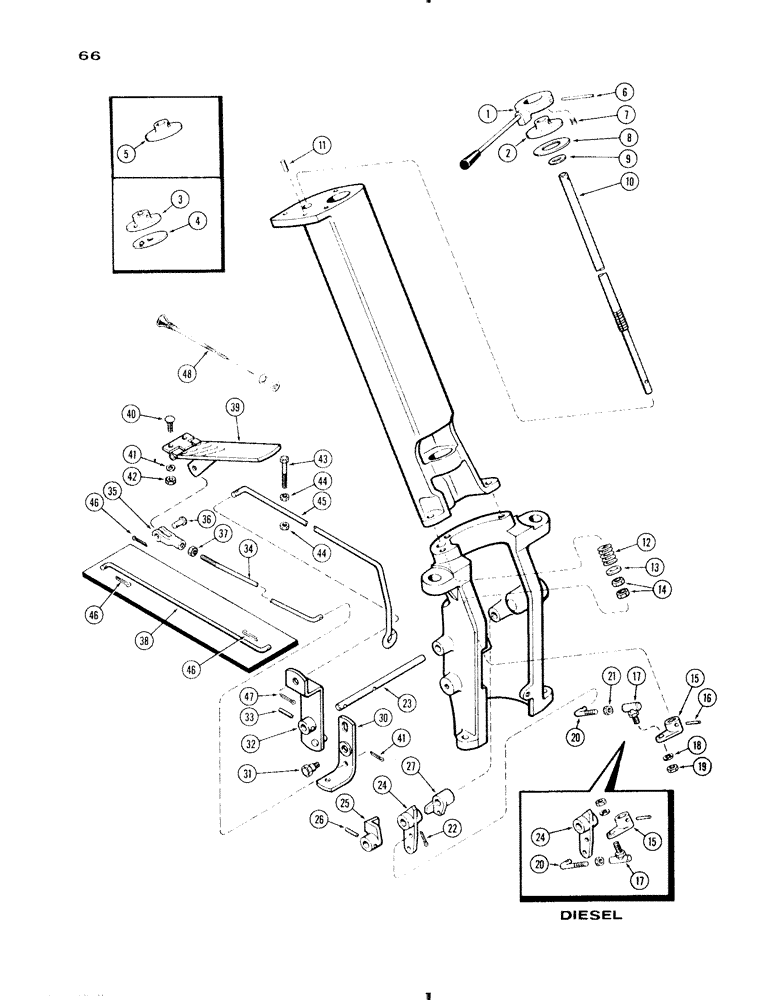

Запчасти Case IH 730 SERIES (066) - THROTTLE LINKAGE, ALL 730 AND 830 MODELS, EXCEPT GROVE (03) - FUEL SYSTEM

1

A34045

LEVER

- hand throttle control

1шт.

2

A57916

LARGE PLATE

PLATE - friction disc (1st used trac. ser. no. 8354609)

1шт.

3

A57028

LARGE PLATE

PLATE - friction disc (used w/Ref. 4) (Used trac. ser. no. 8308968 to 8354609) (Order A57916)

1шт.

4

A57029

DISC

- throttle plate (used w/Ref. 3) (Used trac. ser. no., Serial Range: 8308968-8354609)

1шт.

5

A32893

X

PLATE - friction disc. (order A57916) (used prior to trac. ser. no. 8308968)

1шт.

6

138-2021

PIN,3/16" x 2 1/2", Coiled

lever & plate to shaft 3/16" x 2 1/2", Coiled

1шт.

7

A8012

SPRING

- lock, hand lever

1шт.

8

A11969

GASKET

DISC - friction (1-9/32 x 2-1/2 x 1/8" cork)

1шт.

9

A32838

WASHER

- friction disc (17/32 x 1-1/4 x 14 Ga.)

1шт.

10

A32891

SHAFT - throttle

1шт.

11

138-130

LOCK PIN,1/4" x 3/4", Slotted

PIN, , Idle stop 1/4" x 3/4", Slotted

1шт.

12

A34113

SPRING

- shaft

1шт.

13

195-33

WASHER,1/2"

- spring seat (17/32 x 1-1/16 x 13 Ga.)

1шт.

14

25-158

JAM NUT,Jam, 1/2"-20, G5

- spring ret. (1/2" N.F. jam)

2шт.

15

A32892

LEVER

- shaft, lower

1шт.

16

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, , Lower lever to shaft 5/32" x 7/8", Slotted

1шт.

17

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT - ball, throttle linkage

1шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

19

25-114

NUT,1/4"-28, G5

- ball joint (1/4" N.F. hex.)

1шт.

20

A32472

LINK

- ball joint

1шт.

21

25-154

JAM NUT,Jam, 1/4"-28, G5

- (1/4" N.F. jam)

1шт.

22

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

1шт.

23

A32473

SHAFT - cross

1шт.

24

A32474

LEVER - cross shaft (ball joint link)

1шт.

25

A32475

LEVER

- cross shaft overide

1шт.

26

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, , Overide lever 5/32" x 1", Slotted

1шт.

27

A32476

LEVER - engine shut-off

1шт.

30

A32587

LEVER - foot throttle

1шт.

31

A8479

STUD - lever pivot

1шт.

32

A32477

LEVER - foot throttle

1шт.

33

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, , Foot throttle lever 5/32" x 1", Slotted

1шт.

34

A34182

ROD - throttle (adjustable type)

1шт.

35

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - foot throttle rod

1шт.

36

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

1шт.

37

25-115

NUT,5/16"-24, G5

- throttle rod (5/16" NF hex)

1шт.

38

A32586

X

ROD - foot throttle linkage (non-adjustable) (order 1-A34182, 1-25-115, 1-141-3 & 1-213-3)

1шт.

39

A32584

PEDAL - foot throttle

1шт.

40

175-408

SCREW,Phil Truss Head, 1/4" - 20 x 3/4"

- foot pedal (1/4 x 3/4" N.C. ph. tr. hd.)

2шт.

41

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

42

25-104

NUT,1/4"-20, G5

2шт.

43

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Foot pedal stop Hex, 1/4"-20 x 1 1/4", G5

1шт.

44

25-144

JAM NUT,Jam, 1/4"-20, G5

- (1/4" N.C. half hex.)

2шт.

45

A32582

ROD - throttle, rear

1шт.

46

132-26

COTTER PIN

PIN - split (Cotter), 3/32" x 3/4"

2шт.

47

132-66

COTTER PIN

PIN - cotter (5/32 x 5/8")

1шт.

48

A38458

CONTROL

CHOKE ASSY. - (Replaces A36578)

1шт.
