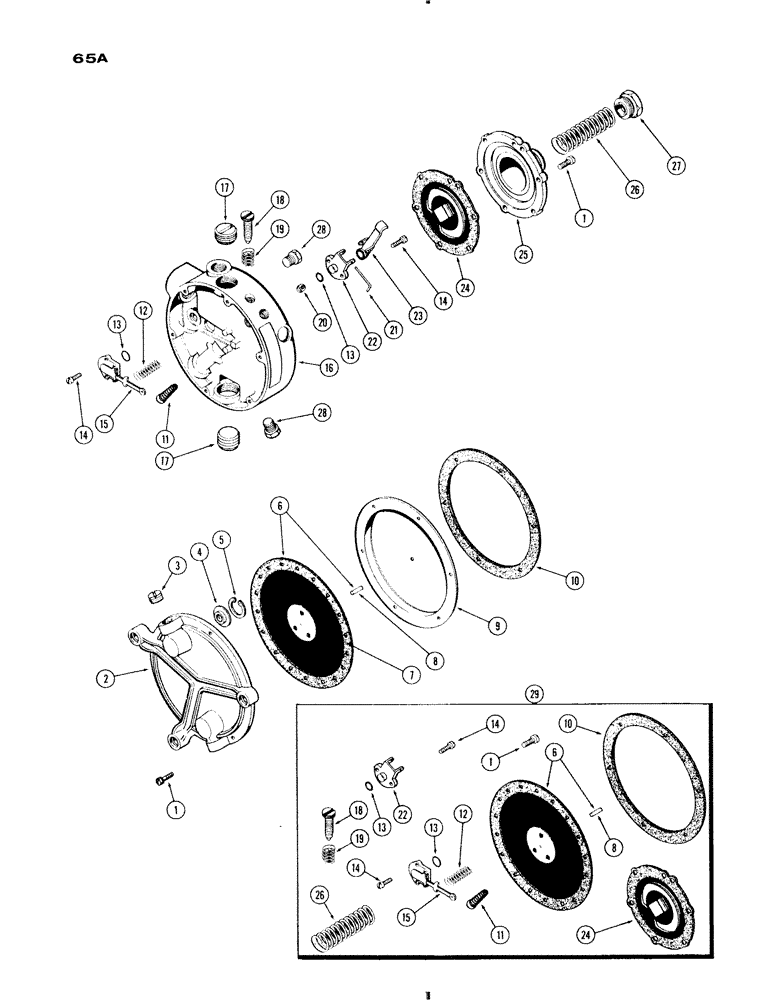

Запчасти Case IH 730 SERIES (065A) - A21231 REGULATOR, 251 L.P. ENGINE, GROVE (03) - FUEL SYSTEM

A21231

REGULATOR ASSY. - eng. fuel, Includes: Ref. 1 - 28

1шт.

1

B50035

SCREW - mtg., frt. & back cover (See ref. 29)

12шт.

2

B50201

PLATE - cover, lower pressure end

1шт.

3

221-1041

PLUG

- pipe, 1/8" slotted. headless

1шт.

4

B50087

VALVE - compensator

1шт.

5

B50086

RING - retaining valve

1шт.

6

B50180

DIAPHRAGM

ASSY. - low pressure (See ref. 7, 8 and 29)

1шт.

7

A40079

DIAPHRAGM

- low pressure

1шт.

8

B50178

PIN - push, diaphragm (See ref. 29)

1шт.

9

B50175

PLATE - partition

1шт.

10

B50177

GASKET - partition plate (See ref. 29)

1шт.

11

B50168

STRAINER - fuel inlet (See ref. 29)

1шт.

12

B50191

SPRING - valve, low pressure (See ref. 29)

1шт.

13

B50179

"O"RING - low & hi-pressure valve (See ref. 29)

2шт.

14

B50029

SCREW - valve mtg., hi & low pressure (See ref. 29)

4шт.

15

B50181

VALVE - low pressure (See ref. 29)

1шт.

16

A25248

HOUSING - regulator

1шт.

17

221-1044

PLUG - pipe, 1/2" slotted, headless

2шт.

18

B50024

SCREW - adjusting, idle (See ref. 29)

1шт.

19

B50022

SPRING - idle adjusting (See ref. 29)

1шт.

20

A40167

SCREW - orifice, regulator

1шт.

21

B50159

PIN - valve lever

1шт.

22

B50176

VALVE - hi pressure (See ref. 29) (Order B50183)

1шт.

23

B50182

LEVER - hi pressure valve

1шт.

24

B50108

DIAPHRAGM ASSY. - high pressure (See ref. 29)

1шт.

25

B50110

COVER - hi pressure end

1шт.

26

B50153

SPRING - hi pressure (See ref. 29)

1шт.

27

B50112

GUIDE - hi pressure spring

1шт.

28

221-1001

PLUG,Sq Hd, 1/8"-27 NPTF

- pipe, 1/8" sq. hd.

2шт.

29

B50052

REPAIR KIT - regulator

1шт.
