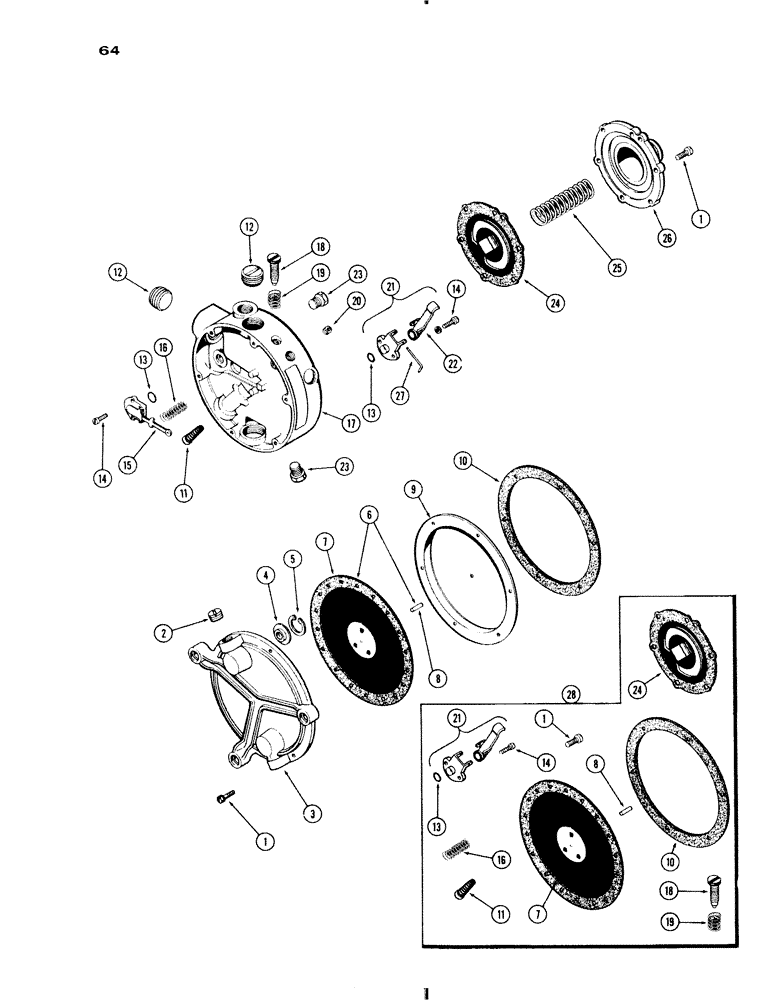

Запчасти Case IH 730 SERIES (064) - A24285 REGULATOR, 251 AND 284 L.P. ENGINES, EXCEPT GROVE (03) - FUEL SYSTEM

A24285

REGULATOR ASSY. - fuel, Includes: Ref. 1 - 27

1шт.

1

B50035

SCREW - mtg., frt. & back cover (See ref. 28)

12шт.

2

B50058

PLUG - back cover plate

1шт.

3

A40169

PLATE - cover, back

1шт.

4

B50087

VALVE - compensator

1шт.

5

B50086

RING - retaining, compensator

1шт.

6

B50180

DIAPHRAGM

ASSY. - low pressure, Includes: Ref. 7 and 8

1шт.

7

A40079

DIAPHRAGM

- low pressure (See ref. 28)

1шт.

8

B50178

PIN - push, diaphragm (See ref. 28)

1шт.

9

B50175

PLATE - partition, diaphragm

1шт.

10

B50177

GASKET - partition plate (See ref. 28)

1шт.

11

B50168

STRAINER - fuel inlet (See ref. 28)

1шт.

12

221-1044

PLUG - pipe, 1/2" slotted, headless

2шт.

13

B50179

"O"RING - low & hi-pressure valve (See ref. 28)

2шт.

14

B50029

SCREW - valve, hi & low pressure (See ref. 28)

4шт.

15

B50181

VALVE - low pressure

1шт.

16

B50191

SPRING - valve, low pressure (See ref. 28)

1шт.

17

A40168

HOUSING - regulator

1шт.

18

B50024

SCREW - adjusting, idle (See ref. 28)

1шт.

19

B50022

SPRING - idle adjusting (See ref. 18)

1шт.

20

A40167

SCREW - orifice

1шт.

21

B50183

VALVE - high pressure (See ref. 28)

1шт.

22

B50182

LEVER - valve, hi-pressure

1шт.

23

221-1001

PLUG,Sq Hd, 1/8"-27 NPTF

- pipe, 1/8" sq. hd.

2шт.

24

B50108

DIAPHRAGM ASSY. - hi pressure (See ref. 28)

1шт.

25

B50153

SPRING - hi-pressure

1шт.

26

B50110

COVER - hi-pressure

1шт.

27

B50159

PIN - valve lever

1шт.

28

A40173

REPAIR KIT - regulator

1шт.
