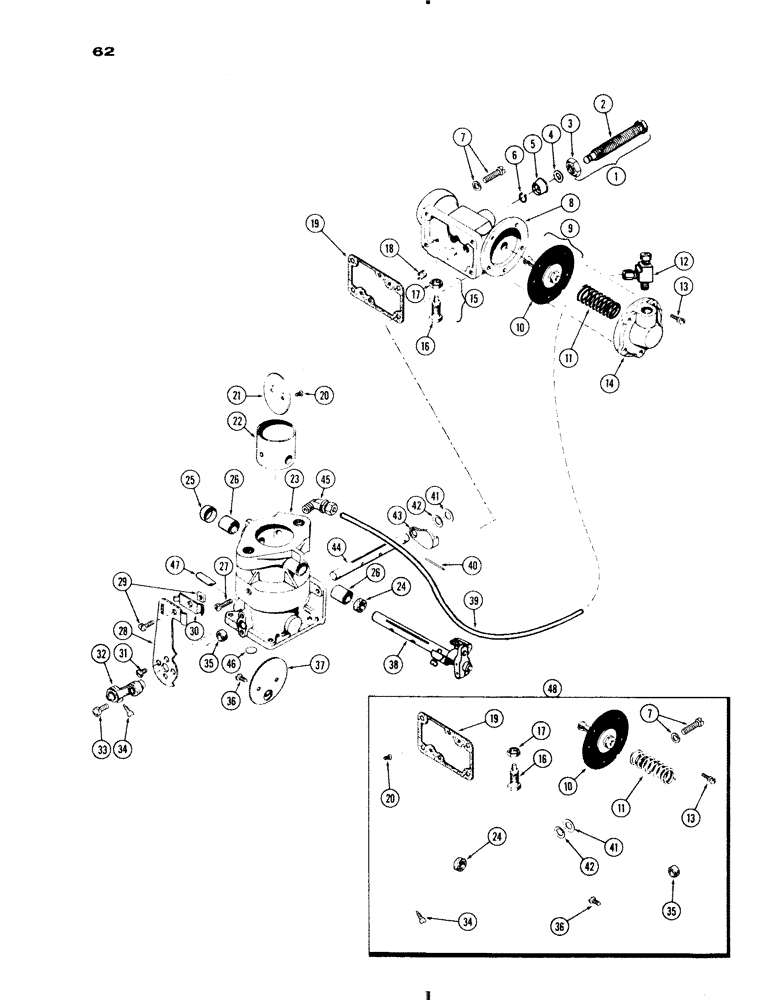

Запчасти Case IH 730 SERIES (062) - A21229 CARBURETOR, 251 L.P. ENGINE, GROVE (03) - FUEL SYSTEM

A21229

STIFFENER

CARBURETOR ASSY. - fuel, Includes: Ref. 1 - 11

1шт.

1

A25250

SCREW ASSY. - fuel adjusting

1шт.

2

B50089

SCREW - adj. fuel

1шт.

3

B50074

LOCKNUT - adj. screw

1шт.

4

B50075

WASHER - spring, adj. screw

1шт.

5

B50088

VALVE - adj. screw

1шт.

6

A7111

SNAP RING,#25, Ext

RING - snap, , grip, adj. screw (Replaces B50073) #25, Ext

1шт.

7

B50043

SCREW ASSY. - mtg.. inlet hsg. (See ref. 48)

4шт.

8

A40344

HOUSING - inlet, gas & economizer (Replaced A25249)

1шт.

9

B50077

DIAPHRAGM ASSY. - economizer, Includes: Ref. 10

1шт.

10

B50147

DIAPHRAGM - economizer (See ref. 48)

1шт.

11

B50146

SPRING - economizer (See ref. 48)

1шт.

12

B50044

TEE - compression, Includes: Ref. 13 - 47

1шт.

13

B50030

SCREW ASSY. - mtg., cover (See ref. 48)

5шт.

14

B50158

COVER - economizer

1шт.

15

A25252

SCREW ASSY. - dist. starting, Includes: Ref. 16 and 17

1шт.

16

A25252

SCREW - adj., starting (See ref. 48) (Replaced B50162)

1шт.

17

B50148

LOCKNUT - starting screw (See ref. 48)

1шт.

18

A40335

ORIFICE - economizer (Replaced B50157)

1шт.

19

B50163

GASKET - inlet hsg. to body (See ref. 48)

1шт.

20

B50143

SCREW - disc., throttle (See ref. 48)

2шт.

21

B50192

DISC - throttle

1шт.

22

B50171

VENTURI - throat

1шт.

23

A25253

BODY ASSY - carburetor

1шт.

24

B50145

SEAL - dust, throttle shaft (See ref. 48)

1шт.

25

B50020

PLUG - brass, 1/2" Welch

1шт.

26

B50202

BUSHING - bearing, throttle

2шт.

27

B50042

SCREW ASSY. - set, body

1шт.

28

B50193

SUPPORT ASSY. - choke tube, Includes: Ref. 29 and 30

1шт.

29

B50194

SCREW ASSY. - choke tube clip

1шт.

30

B50204

CLIP - choke tube

1шт.

31

B50032

SCREW - support, choke

2шт.

32

B50195

LEVER ASSY. - choke, Includes: Ref. 33 and 34

1шт.

33

B50033

SCREW - swivel, choke lever

1шт.

34

F20881

SCREW - set, "B" (See ref. 48) (Replaced B50014)

1шт.

35

B50144

SEAL - dust, choke shaft (See ref. 48)

1шт.

36

B50142

SCREW - disc., choke (See ref. 48)

2шт.

37

B50054

DISC - choke

1шт.

38

B50200

SHAFT & LEVER ASSY. - throttle

1шт.

39

B50109

TUBE - body to inlet cover (copper)

1шт.

40

B50161

PIN - lever, valve

1шт.

41

B50136

WASHER - lever, valve (See ref. 48)

1шт.

42

B50046

WASHER - spring, valve lever (See ref. 48)

1шт.

43

B50160

LEVER - valve

1шт.

44

A40336

SHAFT - choke (Replaced B50055)

1шт.

45

222-616

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

- compression

1шт.

46

B50023

PLUG - 1/2", Welch

1шт.

47

A25251

NOZZLE - balance tube

1шт.

48

B50203

REPAIR KIT - carburetor

1шт.
