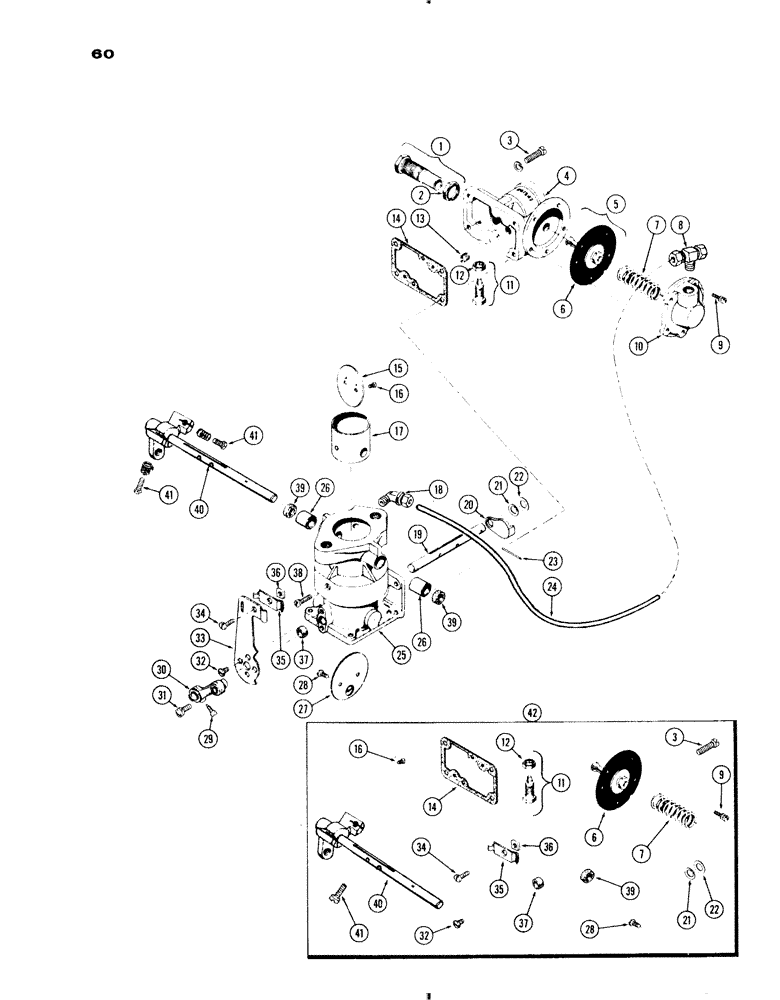

Запчасти Case IH 730 SERIES (060) - A24284 CARBURETOR, 251 AND 284 L.P. ENGINES, EXCEPT GROVE (03) - FUEL SYSTEM

A24284

CARBURETOR ASSY. - fuel, Includes: Ref. 1 - 41

1шт.

1

A40333

SCREW ASSY. - fuel adjusting, Includes: Ref. 2

1шт.

2

B50091

LOCKNUT - adj. screw, fuel

1шт.

3

B50043

SCREW - mtg., economizer to body (See ref. 42)

4шт.

4

A40334

HOUSING - economizer

1шт.

5

B50165

DIAPHRAGM ASSY. - economizer, Includes: Ref. 6

1шт.

6

B50147

DIAPHRAGM - economizer (See ref. 42)

1шт.

7

B50146

SPRING - economizer (yellow) (See ref. 42)

1шт.

8

B50044

FITTING - tee, cover

1шт.

9

B50030

SCREW - mtg., cover to economizer (See ref. 42)

5шт.

10

B50158

COVER - economizer

1шт.

11

A25252

SCREW ASSY. - starting adjustment (See ref. 42), Includes: Ref. 12

1шт.

12

B50148

LOCKNUT - adj. screw, starting (See ref. 42)

1шт.

13

B50157

SCREW - orifice, economizer

1шт.

14

B50163

GASKET - economizer (See ref. 42)

1шт.

15

B50192

DISC - throttle, carb.

1шт.

16

B50143

SCREW - mtg., disc. (See ref. 42)

2шт.

17

B50171

VENTURI - throat, carb.

1шт.

18

222-616

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

FITTING - elbow

1шт.

19

A40336

SHAFT - choke

1шт.

20

B50160

LEVER - valve

1шт.

21

B50046

WASHER - spring, valve lever (See ref. 42)

1шт.

22

B50136

WASHER - valve lever (See ref. 42)

1шт.

23

B50161

PIN - valve lever

1шт.

24

B50109

TUBE - carb. to econ. cover (3/16" copper)

1шт.

25

A40344

BODY ASSY. - carburetor, Includes: Ref. 26

1шт.

26

B50202

BUSHING - shaft, throttle

2шт.

27

B50054

DISC - choke

1шт.

28

B50142

SCREW - mtg., choke disc. (See ref. 42)

2шт.

29

F20881

SCREW - set, choke lever (Replaces B50014)

1шт.

30

A40343

LEVER ASSY. - choke, Includes: Ref. 31

1шт.

31

B50023

SCREW - choke swivel

1шт.

32

A40342

PROTECTOR

SCREW - mtg., choke support (See ref. 42)

2шт.

33

B50193

SUPPORT ASSY. - choke, Includes: Ref. 34 and 35

1шт.

34

A40044

PIPE

SCREW - clamp, support (See ref. 42)

1шт.

35

B50204

CLAMP - support (See ref. 42)

1шт.

36

A40046

NUT - clamp (See ref. 42)

1шт.

37

B50144

SEAL - choke shaft (See ref. 42)

1шт.

38

B50042

SCREW - venturi

1шт.

39

B50145

SEAL - dust, throttle shaft (See ref. 42)

1шт.

40

A40339

SHAFT ASSY. - throttle (See ref. 42)

1шт.

41

A40340

SCREW - throttle stop (See ref. 42)

2шт.

42

B50203

REPAIR KIT - carburetor

1шт.
