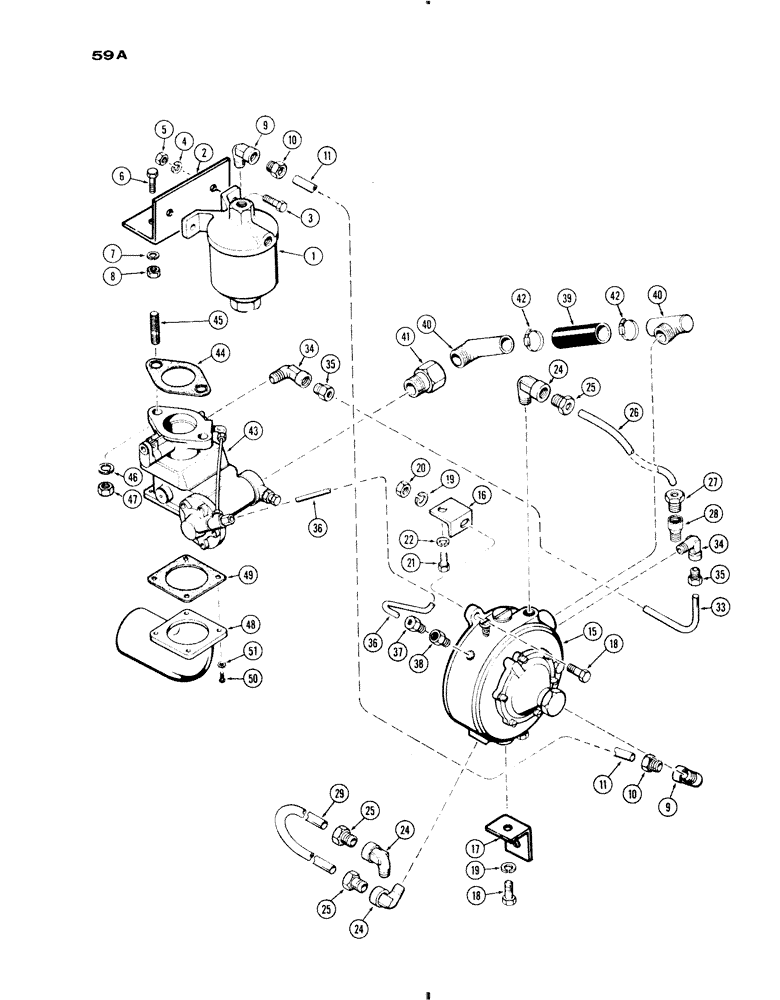

Запчасти Case IH 730 SERIES (059A) - FUEL LINES, 251 L.P. ENGINE, GROVE (03) - FUEL SYSTEM

1

A24535

FILTER

ASSY. - fuel (See Figure 56)

1шт.

2

A33857

SUPPORT - filter

1шт.

3

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Filter to support Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

4

92-5

LOCK WASHER,5/16"

2шт.

5

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

2шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Support Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

2шт.

9

222-437

ELBOW,90 Degree x 1/4" NPT x 9/16"-20

ASSY. - filter outlet tube, Includes: Ref. 10

2шт.

10

222-504

TUBE NUT,9/16"-20

NUT - (For 3/8" O.D. tube)

1шт.

11

A33858

TUBE -, Serial Range: filter-regulator

1шт.

15

A21231

REGULATOR ASSY. - (See Figure 64)

1шт.

16

A33891

STRAP - regulator support

1шт.

17

A21232

BRACKET - regulator support

1шт.

18

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Bracket & support Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

9635082

NUT,5/16" - 18, Gr 5

- (3/8" N.C. hex.)

1шт.

21

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Bracket Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

22

92-5

LOCK WASHER,5/16"

1шт.

24

222-442

ELBOW ASSY. - regulator tubes, Includes: Ref. 25 90º x 3/8" NPT x 11/16"-16

3шт.

25

222-506

TUBE NUT,11/16"-16

NUT - (For 1/2" O.D. tube)

1шт.

26

A21239

TUBE - regulator to water pump

1шт.

27

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

CONNECTOR ASSY. - (in water pump), Includes: Ref. 28

1шт.

28

222-506

TUBE NUT,11/16"-16

NUT - (For 1/2" O.D. tube)

1шт.

29

A21238

TUBE - water, Serial Range: outlet-reg.

1шт.

33

A21237

TUBE - balancer

1шт.

34

222-434

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

ASSY. - balancer tube, Includes: Ref. 35

2шт.

35

222-503

TUBE NUT,1/2"-20

NUT - (For 5/16" O.D. tube)

1шт.

36

A21236

TUBE - economizer

1шт.

37

222-401

CONNECTOR, ELEC

CONNECTOR ASSY. - economizer tube, Includes: Ref. 38

1шт.

38

222-501

TUBE NUT,3/8"-24

NUT - (For 3/16" O.D. tube)

1шт.

39

A21234

HOSE,0.75" ID x 3.50", SAE 20R4 Class SC

- Vapor connection 0.75" ID x 3.50", SAE 20R4 Class SC

1шт.

40

A9155

90 ELBOW

- vapor hose

2шт.

41

A21235

FITTING

ADAPTER - (in carb.)

1шт.

42

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - vapor hose (1-3/16" to 1-3/4")

2шт.

43

A21229

STIFFENER

CARBURETOR ASSY. - (See Figure 62)

1шт.

44

A26434

GASKET

- carburetor

1шт.

45

A10029

STUD - carburetor

2шт.

46

92-6

LOCK WASHER,3/8"

2шт.

47

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N.F. hex.)

2шт.

48

A21240

ELBOW - air horn

1шт.

49

A27539

GASKET

- air horn

1шт.

50

173-118

SCREW,Sl Rnd Hd, #12 - 24 x 5/8"

- horn ret. (1/2 x 5/8" N.C, rd. hd.)

4шт.

51

492-11012

LOCK WASHER,#12

WASHER, LOCK, (ext. skpf.) #12

4шт.
