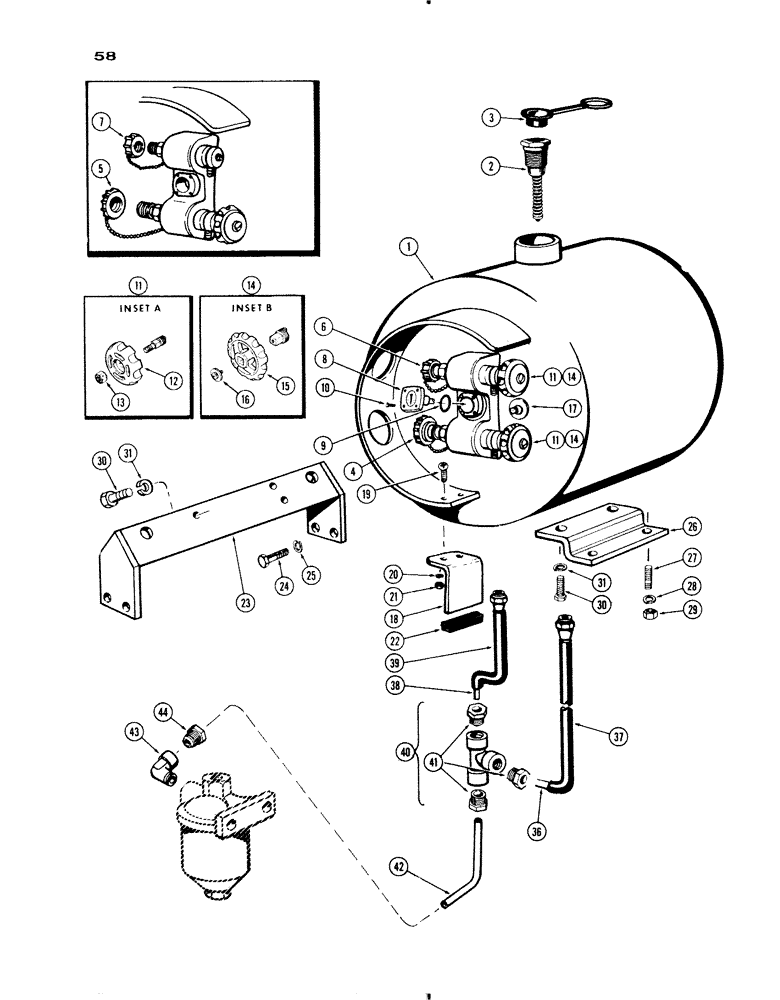

Запчасти Case IH 730 SERIES (058) - FUEL TANK, 251 L. P. ENGINE, GROVE (03) - FUEL SYSTEM

1

A57251

TANK ASSY. - fuel (Replaces A33845), Includes: Ref. 2 - 17

1шт.

2

A20696

SEAL

VALVE ASSY. - safety relief, Includes: Ref. 3

1шт.

3

A20697

WIPER

CAP - weather, safety valve

1шт.

4

A29942

VALVE ASSY. - filler, liquid, Includes: Ref. 5

1шт.

5

A40631

CAP ASSY. - w/chain

1шт.

6

A9320

VALVE ASSY. - vapor return, Includes: Ref. 7

1шт.

7

A40630

CAP ASSY. - w/chain

1шт.

8

A24048

GAUGE ASSY. - fuel, Includes: Ref. 9 and 10

1шт.

9

A20489

GASKET - fuel gauge (1-19/64 x 1-37/64 x 3/32")

1шт.

10

177-133

SCREW - fuel gauge ret. (1/4-28 x 15/16" fill. hd.)

4шт.

11

A57245

VALVE

ASSY. - outlet, liquid & vapor (See inset A)

2шт.

12

A41434

WHEEL - hand

1шт.

13

A41433

LOCK NUT

NUT - lock, hand wheel

1шт.

14

A22947

X

VALVE ASSY. - outlet, liquid & vapor (See inset B)

2шт.

15

B52058

WHEEL - hand

1шт.

16

B52057

SCREW - hand wheel ret.

1шт.

17

A29941

GAUGE - fixed, liquid level

1шт.

18

A33855

GUARD - manifold

1шт.

19

77-516

BOLT (SPREADER),M16 x 75mm, Cl 8.8

SCREW - guard (5/16 x 1" N.C. truss hd.)

2шт.

20

92-5

LOCK WASHER,5/16"

2шт.

21

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

2шт.

22

A33863

MOULDING - valve guard

1шт.

23

A33859

SUPPORT - fuel tank, front

1шт.

24

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

Front support Hex, 5/8"-11 x 1 1/4", G5, Full Thd

4шт.

25

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

26

A33862

SUPPORT - fuel tank, rear

1шт.

27

A7576

STUD - rear support

2шт.

28

92-8

LOCK WASHER,1/2"

2шт.

29

25-118

NUT,1/2"-20, G5

- (1/2" N.C. hex.)

2шт.

30

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

Tank to supports Hex, 5/8"-11 x 1 1/4", G5, Full Thd

4шт.

31

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

36

A33847

TUBE - outlet vapor, Serial Range: valve-tee

1шт.

37

A33849

LOOM - vapor tube

1шт.

38

A33850

TUBE - outlet liquid, Serial Range: valve-tee

1шт.

39

A33852

LOOM - liquid tube

1шт.

40

222-564

TEE ASSY - fuel line junction, Includes: Ref. 41

1шт.

41

222-504

TUBE NUT,9/16"-20

NUT - (For 3/8" O.D. tube)

3шт.

42

A33853

TUBE -, Serial Range: tee-filter

1шт.

43

222-437

ELBOW,90 Degree x 1/4" NPT x 9/16"-20

ASSY. - filter, Includes: Ref. 44

1шт.

44

222-504

TUBE NUT,9/16"-20

NUT - (For 3/8" O.D. tube)

1шт.
