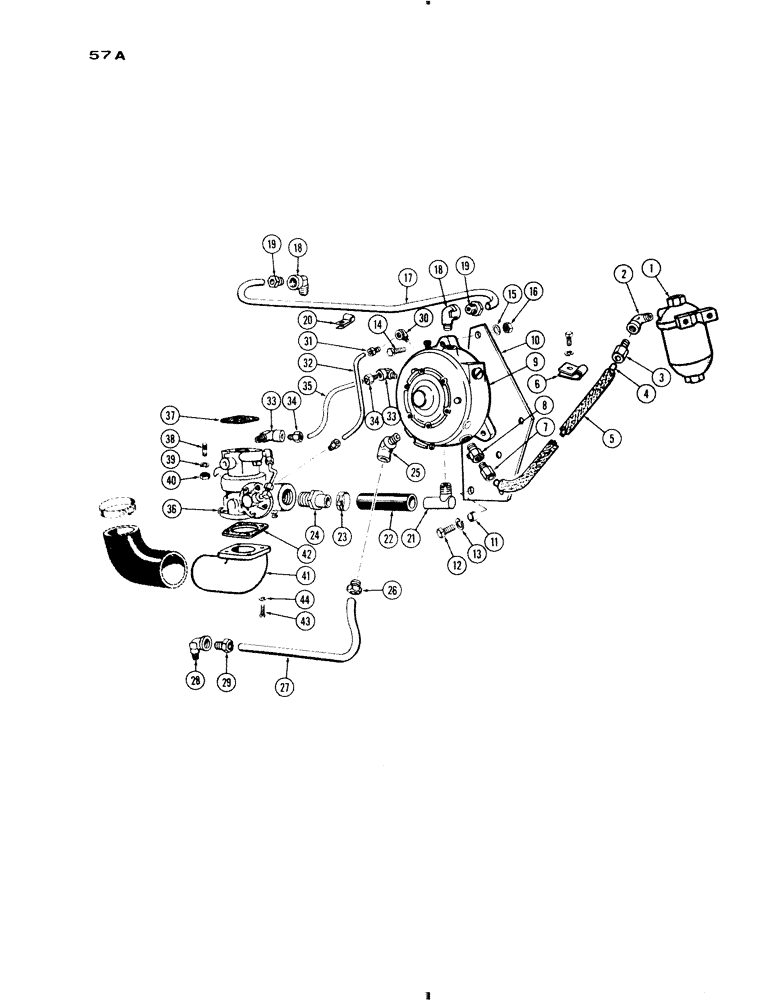

Запчасти Case IH 730 SERIES (057A) - FUEL LINES, 251 AND 284 L.P. ENGINES, EXCEPT GROVE (03) - FUEL SYSTEM

1

A24535

FILTER

ASSY. - fuel (See Figure 56)

1шт.

2

222-437

ELBOW,90 Degree x 1/4" NPT x 9/16"-20

- fuel line (In Filter), Includes: Ref. 3

1шт.

3

222-504

TUBE NUT,9/16"-20

NUT - (For 3/8" O.D. tube)

1шт.

4

A33035

TUBE -, Serial Range: filter-regulator

1шт.

5

A8703

LOOM - reg. tube

1шт.

6

A26697

CLIP - reg. tube

1шт.

7

222-407

HYD CONNECTOR,1/4" NPT x 9/16"-20

CONNECTOR - fuel line (in reg.), Includes: Ref. 8

1шт.

8

222-504

TUBE NUT,9/16"-20

NUT - (For 3/8" O.D. tube)

1шт.

9

A24285

REGULATOR ASSY. - (See Figure 64)

1шт.

10

A24290

PLATE - reg. mtg.

1шт.

11

B18290

SPACER - mtg. plate

4шт.

12

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Plate Hex, 3/8"-16 x 2 1/4", G5

4шт.

13

92-6

LOCK WASHER,3/8"

4шт.

14

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

Regulator Hex, 5/16"-18 x 1 1/8", G5

3шт.

15

92-5

LOCK WASHER,5/16"

3шт.

16

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

3шт.

17

A24289

TUBE - reg. to water pump

1шт.

18

222-442

ELBOW ASSY. - water tube, Includes: Ref. 19 90º x 3/8" NPT x 11/16"-16

2шт.

19

222-506

TUBE NUT,11/16"-16

NUT - (For 1/2" O.D. tube)

1шт.

20

A26696

NO LONGER SERVICED

CLIP - water tube

1шт.

21

A9155

90 ELBOW

- carb. hose

1шт.

22

A9156

HOSE,0.75" ID x 4.50"

- reg. to carb 0.75" ID x 4.50"

1шт.

23

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-1/8" clamp)

2шт.

24

A11791

ADAPTER - hose

1шт.

25

222-470

ELBOW ASSY. - water tube, Includes: Ref. 26 45º x 3/8" NPT x 11/16"-16

1шт.

26

222-506

TUBE NUT,11/16"-16

NUT - (For 1/2" O.D. tube)

1шт.

27

A24288

TUBE - water outlet

1шт.

28

222-442

ELBOW - water tube, Includes: Ref. 29 90º x 3/8" NPT x 11/16"-16

1шт.

29

222-506

TUBE NUT,11/16"-16

NUT - (For 1/2" O.D. tube)

1шт.

30

222-431

ELBOW,90 Degree x 1/8" NPT x 3/8"-24

ASSY. - economizer tube, Includes: Ref. 31

1шт.

31

222-501

TUBE NUT,3/8"-24

NUT - (For 3/16" O.D. tube)

1шт.

32

A24286

TUBE - economizer

1шт.

33

222-434

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

ASSY. - balance tube, Includes: Ref. 34

2шт.

34

222-503

TUBE NUT,1/2"-20

NUT - (For 5/16" O.D. tube)

1шт.

35

A24287

TUBE - balance

1шт.

36

A24284

CARBURETOR ASSY. - (See Figure 60)

1шт.

37

A26434

GASKET

-, Serial Range: carb.-manifold

1шт.

38

A10029

STUD - carb. (3/8" N.C./N.F. x 1-3/4")

2шт.

39

92-6

LOCK WASHER,3/8"

2шт.

40

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N.F. hex.)

2шт.

41

A21240

ELBOW - carb. air horn

1шт.

42

A27539

GASKET

- air horn elbow

1шт.

43

173-118

SCREW,Sl Rnd Hd, #12 - 24 x 5/8"

- air horn (#12-24 x 5/8" rd. hd.)

4шт.

44

492-11012

LOCK WASHER,#12

WASHER, LOCK, #12

4шт.
