Запчасти Case IH 730 SERIES (056) - FUEL TANK, 251 AND 284 L. P. ENGINES, EXCEPT GROVE (03) - FUEL SYSTEM

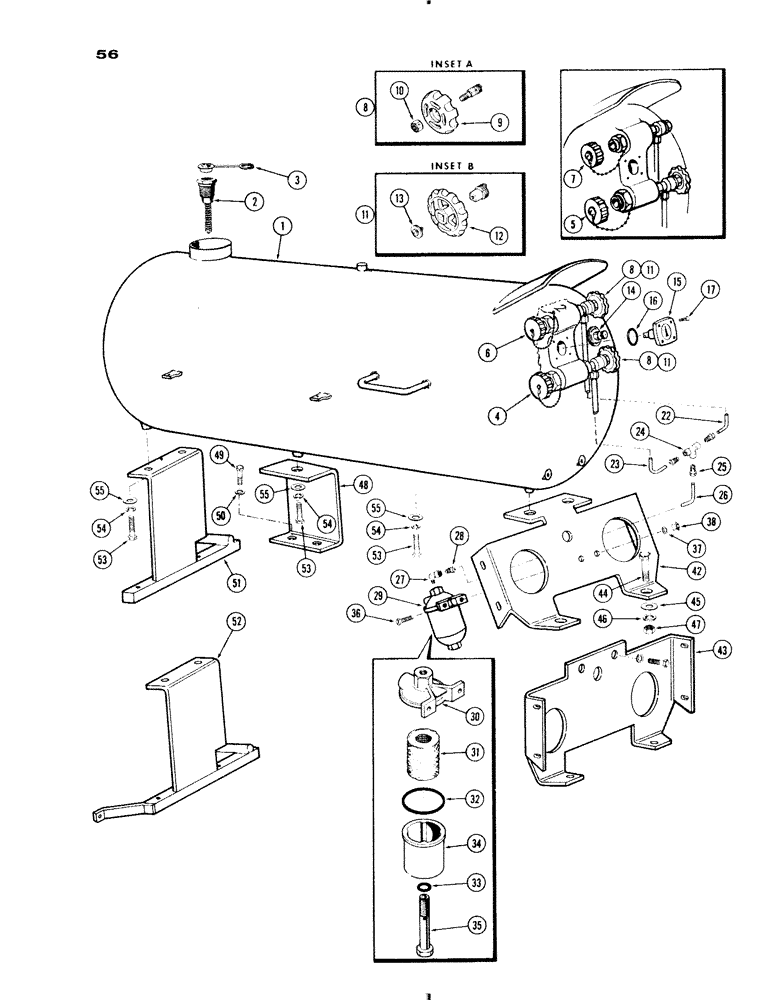

Схема запчастей Case IH 730 SERIES - (056) - FUEL TANK, 251 AND 284 L. P. ENGINES, EXCEPT GROVE (03) - FUEL SYSTEM
14
23
16
11
32
42
54
29
26
35
47
49
22
55
43
55
51
1
45
53
10
8
37
13
11
26
38
8
6
9
17
46
48
30
25
31
8
44
54
55
24
36
11
33
54
53
34
3
52
12
27
15
7
50
4
53
2
5

Артикул

Название

Примечание

Количество

1

A32134

TANK ASSY. - fuel, Includes: Ref. 2 - 17

1шт.

2

A20696

SEAL

VALVE ASSY. - safety relief, Includes: Ref. 3

1шт.

3

A20697

WIPER

CAP - weather, safety valve

1шт.

4

A29942

VALVE - filler, liquid, Includes: Ref. 5

1шт.

5

A40631

CAP ASSY. - w/chain

1шт.

6

A9320

VALVE - vapor return, Includes: Ref. 7

1шт.

7

A40630

CAP ASSY. - w/chain

1шт.

8

A57245

VALVE

ASSY. - outlet, liquid & vapor (See inset A), Includes: Ref. 9 and 10

2шт.

9

A41434

WHEEL - hand

1шт.

10

A41433

LOCK NUT

NUT - lock, hand wheel

1шт.

11

A22947

X

VALVE - outlet, liquid & vapor (See inset B), Includes: Ref. 12 and 13

2шт.

12

B52058

WHEEL - hand

1шт.

13

B52057

SCREW - hand wheel ret.

1шт.

14

A29941

GAUGE - fixed liquid level

1шт.

15

A57025

GAUGE ASSY. - fuel, Includes: Ref. 16 and 17

1шт.

16

A20489

GASKET - fuel gauge (1-19/64 x 1-37/64 x 3/32")

1шт.

17

177-133

SCREW - fuel gauge ret. (1/4-28 x 15/16" fill. hd.)

4шт.

22

A33229

TUBE - outlet vapor, Serial Range: valve-tee

1шт.

23

A33230

TUBE - outlet liquid, Serial Range: valve-tee

1шт.

24

222-564

TEE ASSY. - fuel line junction, Includes: Ref. 25

1шт.

25

222-504

TUBE NUT,9/16"-20

NUT - (For 3/8" O.D. tube)

3шт.

26

A33034

TUBE -, Serial Range: tee-filter

1шт.

27

222-437

ELBOW,90 Degree x 1/4" NPT x 9/16"-20

ASSY. - (at filter inlet), Includes: Ref. 28

1шт.

28

222-504

TUBE NUT,9/16"-20

NUT - (For 3/8" O.D. tube)

1шт.

29

A24535

FILTER

ASSY. - fuel, Includes: Ref. 30 - 35

1шт.

30

A24536

COVER - filter

14шт.

31

A24616

KIT

ELEMENT KIT, Includes: Ref. 32 and 33

1шт.

32

A24539

GASKET

- body, upper

1шт.

33

A24538

GASKET

- body, lower

1шт.

34

A24537

BODY - filter, element hsg.

1шт.

35

A24541

BOLT - body ret.

1шт.

36

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Filter Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

37

92-5

LOCK WASHER,5/16"

2шт.

38

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

2шт.

42

A32126

SUPPORT - rear (hood sides & filter)

1шт.

43

A32127

SUPPORT - rear (inst. panel)

1шт.

44

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Rear support Hex, 3/4"-10 x 2", G5

2шт.

45

195-109

WASHER,3/4"

- (13/16 x 2 x 5/32")

2шт.

46

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

47

25-1012

NUT,3/4"-10, G5

2шт.

48

A32128

SUPPORT - side

1шт.

49

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5, Side support

2шт.

50

92-7

LOCK WASHER,7/16"

2шт.

51

A57791

SUPPORT - front (Gen. Purp. & Hi-Cir.) (Replaces A33031)

1шт.

52

A32132

SUPPORT - front (4 whl. & West)

1шт.

53

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

Tank to supports Hex, 5/8"-11 x 1", G5, Full Thd

6шт.

53

164-597

BOLT - (5/8" N.C. Butt. hex. sckt. hd)

1шт.

54

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

55

195-105

WASHER,7/16"

- (11/16 x 1-3/4 x 9/64")

6шт.

56

A20650

TUBE

3/8, not illustrated

1шт.

57

A20651

TUBE

5/16, not illustrated

1шт.
