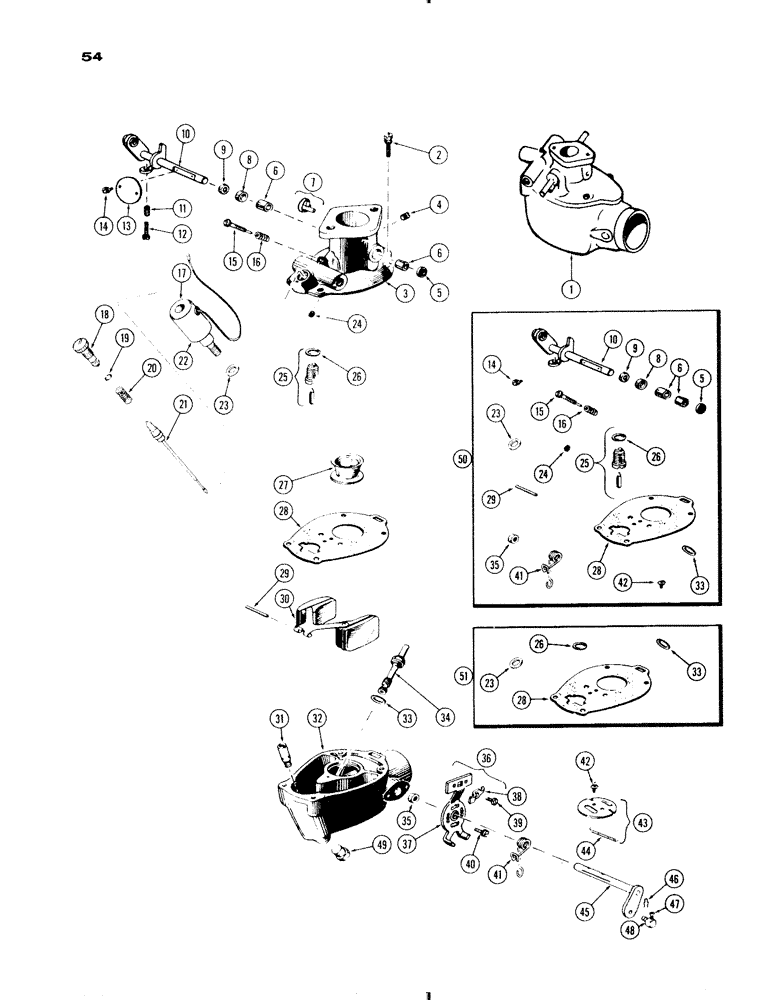

Запчасти Case IH 730 SERIES (054) - A33890 CARBURETOR, 251 SPARK IGNITION, GROVE (03) - FUEL SYSTEM

1

A33890

CARBURETOR ASSY. - eng. fuel, Includes: Ref. 2 - 49

1шт.

2

B51684

SCREW - mtg., throttle, Serial Range: bowl-bowl

4шт.

3

B51908

BODY ASSY. - throttle, Includes: Ref. 4 - 14

1шт.

4

B51696

PLUG - pipe, 5/16" N.F., headless

1шт.

5

B51850

RETAINER CUP

PLUG - cup, throttle shaft (See ref. 50)

1шт.

6

B51858

BUSHING

- throttle shaft (See ref. 50)

2шт.

7

A40320

STOP ASSY. - throttle

1шт.

8

B51806

PACKING

- throttle shaft (See ref. 50)

1шт.

9

B51851

RETAINER

- shaft packing (See ref. 50)

1шт.

10

B51665

SHAFT ASSY. - throttle (See ref. 50), Includes: Ref. 11 and 12

1шт.

11

B51742

SPRING

- throttle stop screw

1шт.

12

B51680

SCREW - adj., throttle stop

1шт.

13

B51668

FLY - throttle shaft

1шт.

14

B51702

SCREW,#6 - 32 x 1/4"

- mtg., fly to shaft (See ref. 50)

2шт.

15

B51789

NEEDLE

- adj., idle (See ref. 50)

1шт.

16

B51744

SPRING

- adj. needle, idle (See ref. 50)

1шт.

17

A40296

SOLENOID ASSY. - fuel shut-off, Includes: Ref. 18 - 23

1шт.

18

A40284

SCREW - adj., solenoid

1шт.

19

A40286

O-RING,0.15" ID x 9" OD x 0.073"

"O"RING - adj. screw

1шт.

20

A40287

SPRING - tension, adj. screw

1шт.

21

A40290

JET - solenoid

1шт.

22

NSS

NOT SOLD SEPARAT

BODY ASSY. - solenoid (Order A40296)

1шт.

23

B51723

GASKET

- solenoid (See ref. 50 & 51)

1шт.

24

B51828

JET

- idle, carb. (See ref. 50)

1шт.

25

B51914

VALVE

ASSY. - float (See ref. 50), Includes: Ref. 26

1шт.

26

B51703

GASKET

- float valve seat (See ref. 50 & 51)

1шт.

27

B51817

VENTURI

- throat (1-1/16")

1шт.

28

B51704

GASKET

- throttle body to bowl (See ref. 50 & 51)

1шт.

29

B51778

SHAFT

- float, carb. (See ref. 50)

1шт.

30

B51773

FLOAT

- carburetor

1шт.

31

B51781

SEAT - solenoid jet

1шт.

32

NSS

NOT SOLD SEPARAT

BOWL ASSY. - carburetor (Order A33890)

1шт.

33

B51724

GASKET

- nozzle, main (See ref. 50 & 51)

1шт.

34

B51822

NOZZLE - main

1шт.

35

B51802

PACKING

- choke shaft (See ref. 50)

1шт.

36

B51771

BRACKET ASSY. - choke, Includes: Ref. 37 - 39

1шт.

37

NSS

NOT SOLD SEPARAT

BRACKET - choke (Order B51771)

1шт.

38

B51765

CLIP

- choke bracket

1шт.

39

B51695

SCREW - mtg., Serial Range: clip-bracket

1шт.

40

B51686

SCREW - mtg., Serial Range: bracket-bowl

2шт.

41

B51733

SPRING - return, choke (See ref. 50)

1шт.

42

B51702

SCREW,#6 - 32 x 1/4"

- mtg., choke fly (See ref. 50)

2шт.

43

B51762

VALVE

FLY ASSY. - choke, Includes: Ref. 44

1шт.

44

B51743

SPRING

- valve, choke fly

1шт.

45

B51750

SHAFT ASSY. - choke, Includes: Ref. 46 - 48

1шт.

46

B51877

SPLIT PIN

PIN - cotter, swivel

1шт.

47

B51698

SCREW,0.164" - 32 x 5/16"

- swivel

1шт.

48

B51764

PIVOT

SWIVEL - choke shaft

1шт.

49

B51887

PLUG

- drain, bowl

1шт.

50

B51934

KIT

SERVICE KIT - carb.

1шт.

51

A42469

KIT

GASKET KIT - carb. (Replaces B51725)

1шт.
