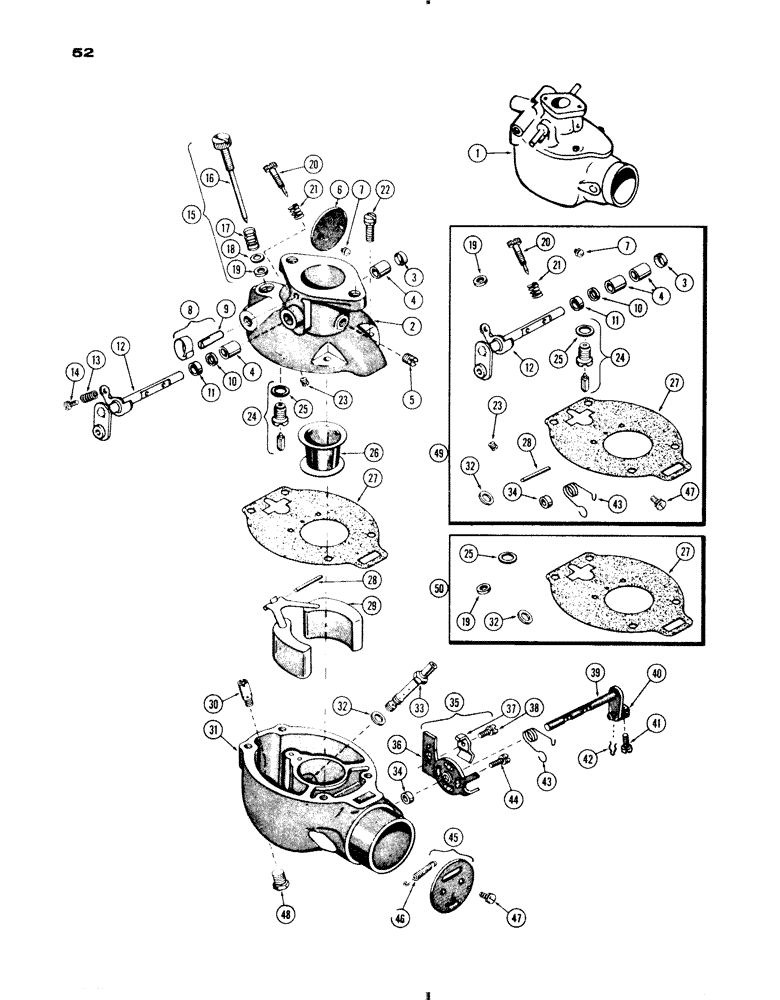

Запчасти Case IH 730 SERIES (052) - A24305 CARBURETOR, 251 AND 284 SPARK IGNITION, EXCEPT GROVE (03) - FUEL SYSTEM

1

A182122

CARBURETOR

ASSY. - fuel (730-830 Series) (Replaces A24305), Includes: Ref. 2 - 50

1шт.

2

A40303

BODY ASSY. - throttle, Includes: Ref. 3 - 14

1шт.

3

B51850

RETAINER CUP

PLUG - cup, throttle shaft (See ref. 49)

1шт.

4

B51858

BUSHING

- throttle shaft (See ref. 49)

2шт.

5

B51696

PLUG - pipe, 5/16" N.F. headless

1шт.

6

B51668

FLY - throttle, (22deg.) 3/64" offset

1шт.

7

B51702

SCREW,#6 - 32 x 1/4"

- fly, throttle (See ref. 49)

2шт.

8

B53939

STOP ASSY. - throttle, Includes: Ref. 9

1шт.

9

NSS

NOT SOLD SEPARAT

PIN - throttle stop (Order B53939)

1шт.

10

B51806

PACKING

- throttle shaft (See ref. 29)

1шт.

11

B51851

RETAINER

- packing (See ref. 49)

1шт.

12

B53951

SHAFT ASSY. - throttle (See ref. 49), Includes: Ref. 13 and 14

1шт.

13

B51742

SPRING

- throttle stop screw

1шт.

14

B51680

SCREW - adj., throttle stop

1шт.

15

A42375

NEEDLE

ASSY. - high speed adjusting (Replaces B51796), Includes: Ref. 16 - 19

1шт.

16

NSS

NOT SOLD SEPARAT

NEEDLE - adjusting, high speed (Order A42375)

1шт.

17

B51732

VALVE SPRING

SPRING - high speed needle

1шт.

18

B51870

WASHER

- needle spring

1шт.

19

B51723

GASKET

- high speed needle (See ref. 49 & 50)

1шт.

20

B51789

NEEDLE

- adjusting, idle (See ref. 49)

1шт.

21

B51744

SPRING

- idle needle (See ref. 49)

1шт.

22

B51684

SCREW - mtg. throttle, Serial Range: body-bowl

1шт.

23

B51828

JET

- idle, carb. (See ref. 49)

1шт.

24

B51914

VALVE

ASSY. - float (See ref. 49)

1шт.

25

B51703

GASKET

- seat, float valve (See ref. 49 & 50), Includes: Ref. 25

1шт.

26

B51817

VENTURI

- throat (1-1/16")

1шт.

27

B51704

GASKET

- throttle body to bowl (See ref. 49 & 50)

1шт.

28

B51778

SHAFT

- float, carb. (See ref. 49)

1шт.

29

B51773

FLOAT

- carburetor

1шт.

30

B51781

SEAT - high speed needle

1шт.

31

A24305

CARBURETOR

BOWL ASSY. - carburetor (Replaces A40299)

1шт.

32

B51724

GASKET

- nozzle (See ref. 49 & 50)

1шт.

33

B51822

NOZZLE - main

1шт.

34

B51802

PACKING

- choke shaft (See ref. 49), Includes: Ref. 36 - 38

1шт.

35

A40301

BRACKET ASSY. - choke

1шт.

36

B51768

BRACKET - choke (Replaces B59382)

1шт.

37

B51765

CLIP

- choke brkt.

1шт.

38

B51695

SCREW - mtg., Serial Range: clip-brkt.

1шт.

39

A40300

PIN

SHAFT ASSY. - choke, Includes: Ref. 40 - 42

1шт.

40

B51764

PIVOT

SWIVEL - choke shaft lever

1шт.

41

B51698

SCREW,0.164" - 32 x 5/16"

- choke swivel

1шт.

42

B51877

SPLIT PIN

PIN - cotter, swivel

1шт.

43

B51738

SPRING - return, choke (See ref. 49)

1шт.

44

B51686

SCREW - mtf., Serial Range: bracket-bowl

2шт.

45

B51762

VALVE

FLY ASSY. - choke, Includes: Ref. 46

1шт.

46

B51743

SPRING

- valve, choke

1шт.

47

B51702

SCREW,#6 - 32 x 1/4"

- mtg., choke fly to shaft (See ref. 49)

2шт.

48

B51887

PLUG

- drain, bowl

1шт.

49

A40304

KIT

SERVICE KIT - carb.

1шт.

50

A42469

KIT

GASKET KIT - (Replaces B51725)

1шт.
