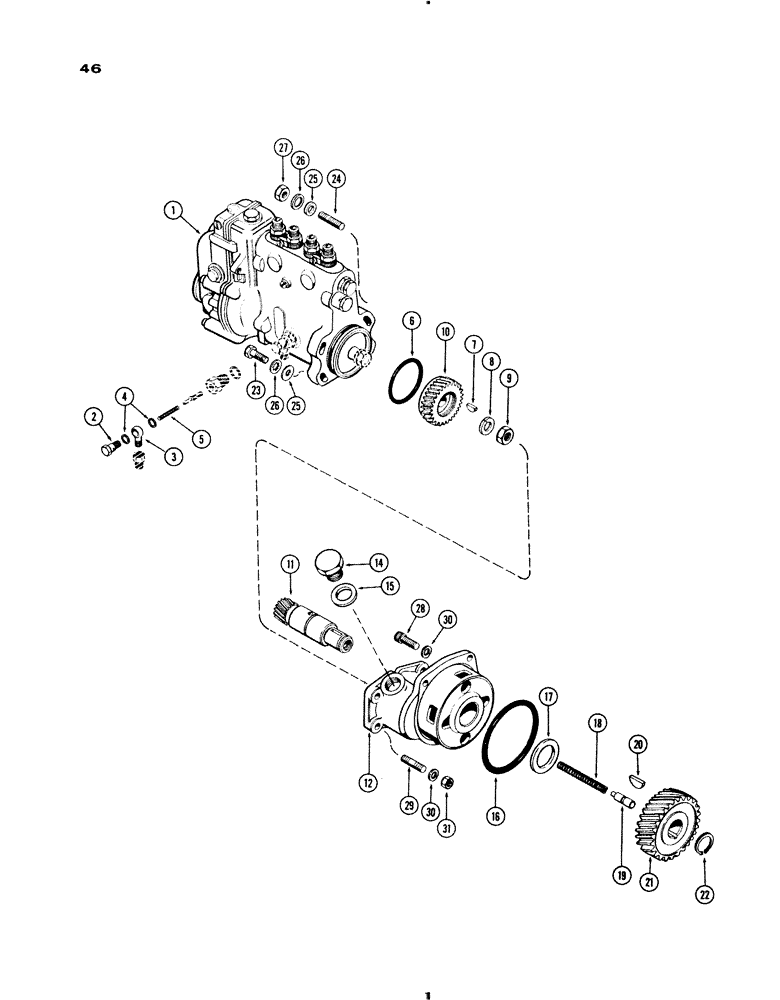

Запчасти Case IH 730 SERIES (046) - INJECTION PUMP AND DRIVE, 267 AND 301 DIESEL ENGINES (03) - FUEL SYSTEM

1

A22634

PUMP ASSY. - injection (1700 RPM) (730 std. trans.) (Bosch PES4A80C420LS2054), Includes: Ref. 2 - 9

1шт.

1

A22635

PUMP

ASSY. - injection (1900 RPM) (730 torque conv.) (Bosch PES4A80C420LS2054), Includes: Ref. 2 - 9

1шт.

1

A22632

PUMP ASSY. - injection (1700 RPM) (830 std. trans.) (Bosch PES4A85C420LS2054), Includes: Ref. 2 - 9

1шт.

1

A22633

PUMP ASSY. - injection (1900 RPM) (830 torque conv.) (Bosch PES4A85C42LS2054), Includes: Ref. 2 - 9

1шт.

2

A25192

BANJO BOLT

BOLT - lube oil fitting

1шт.

3

A25191

FITTING

- oil lube line (Banjo Type)

1шт.

4

A22381

WASHER

- banjo fitting

2шт.

5

A25190

SPRING

- oil lube port

1шт.

6

A42056

O-RING,2.598" ID x 2.834" OD x 0.118"

"O" RING - pump to bag

1шт.

7

A20933

KEY

- drive gear

1шт.

8

A25188

WASHER

- gear lock

1шт.

9

A25189

NUT - gear ret

1шт.

10

A21139

GEAR

- inj. pump

1шт.

11

A20622

GEAR

PINION - pump gear drive

1шт.

12

A21136

HOUSING ASSY. - drive pinion

1шт.

14

A21140

PLUG

- timing window

1шт.

15

A58613

SEALING WASHER

GASKET - plug (Replaces A27947)

1шт.

16

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - housing

1шт.

17

A27864

WASHER

- thrust

1шт.

18

A27853

SPRING

- plunger tension

1шт.

19

A27852

PLUNGER

- pinion thrust

1шт.

20

126-66

WOODRUFF KEY

KEY - drive gear (#141 Woodruff)

1шт.

21

A20899

GEAR WHEEL

GEAR - inj. pump drive

1шт.

22

A27576

SNAP RING,#98, Ext

RING - snap, , drive gear #98, Ext

1шт.

23

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- pump, lower(3/8 x 1-1/2" N.C. hex)

2шт.

24

A20664

STUD - pump, upper (3/8" N.F. x 1-7/8")

2шт.

25

A57470

WASHER

- (13/32 x 11/16 x 16 Ga.)

4шт.

26

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

27

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N.F. hex)

2шт.

28

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Housing Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

28

61-620

HEX SOC SCREW,3/8"-16 x 1 1/4"

BOLT - housing (3/8 x 1-1/4" N.C., 12 PT. Hd.)

1шт.

29

A26554

STUD - housing (3/8" N.C./N.F. x 1-9/16")

1шт.

30

92-6

LOCK WASHER,3/8"

3шт.

31

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N.F. hex.)

1шт.
