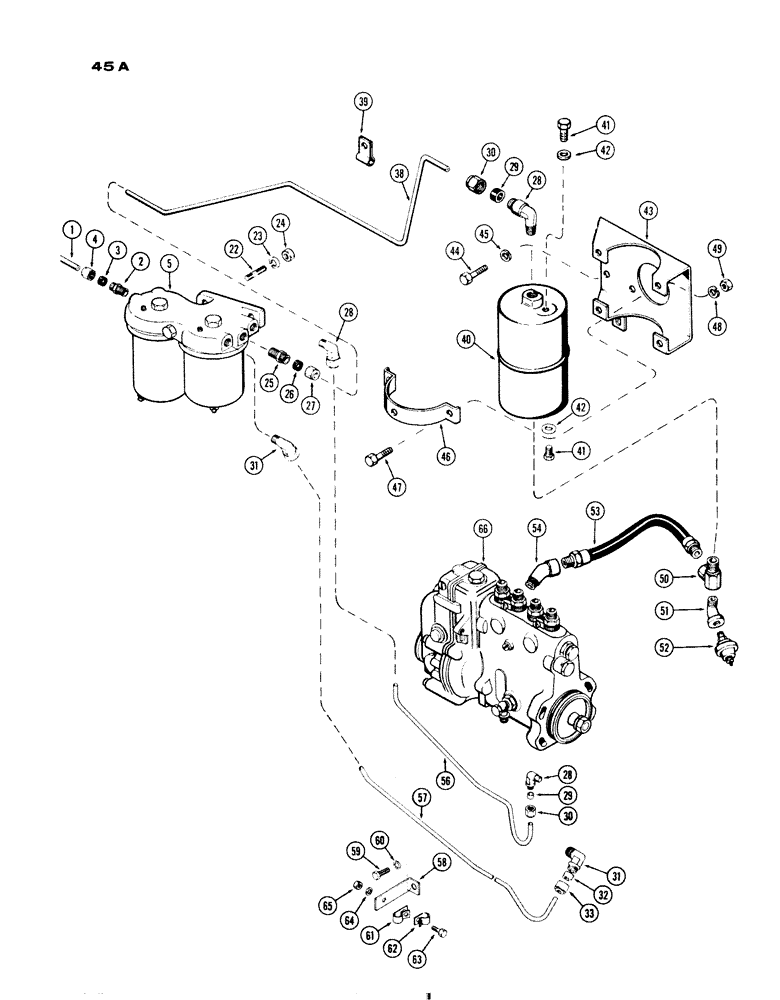

Запчасти Case IH 730 SERIES (045A) - FUEL INJECTION FILTER SYST., 267 & 301 DSL ENGINES, 3 STAGE FILTER SYST, USED PRIOR ENG S/N 2206716 (03) - FUEL SYSTEM

1

A22617

TUBE - valve to primary filter

1шт.

2

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

CONNECTOR ASSY. 3/8" O.D. tube, 1/4" P.T., Includes: Ref. 3 and 4

1шт.

3

222-104

SLEEVE,3/8" Tube

- (for 3/8" O.D.tube)

1шт.

4

222-114

NUT,5/8"-24

NUT - (for 3/8" O.D. tube)

1шт.

5

A40435

FILTER

ASSY. - 1st & 2nd stage (See Figure 45C)

1шт.

22

A26554

STUD - filter (3/8" N.C./N.F. x 1-9/16")

2шт.

23

92-6

LOCK WASHER,3/8"

2шт.

24

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N.F. hex)

2шт.

25

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSY. - 5/16" O.D. tube, 1/4" P.T., Includes: Ref. 26 and 27

1шт.

26

222-103

SLEEVE,5/16" Tube

1шт.

27

222-113

TUBE NUT,9/16"-24

NUT - (for 5/16" O.D. tube)

1шт.

28

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - 5/16" O.D. tube, 1/4" P.T., Includes: Ref. 29 and 30

3шт.

29

222-103

SLEEVE,5/16" Tube

1шт.

30

222-113

TUBE NUT,9/16"-24

NUT - (for 5/16" O.D. tube)

1шт.

31

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY. - 3/8" O.D. tube, 1/4" P.T., Includes: Ref. 32 and 33

2шт.

32

222-104

SLEEVE,3/8" Tube

- (for 3/8" O.D. tube)

1шт.

33

222-114

NUT,5/8"-24

NUT - (for 3/8" O.D. tube)

1шт.

38

A22253

TUBE

- 2nd stage to final stage filter

1шт.

39

A7922

CLIP

- tube retaining

1шт.

40

A57228

FILTER

ASSY. - final stage (Replaces A27983), Includes: Ref. 41 and 42

1шт.

41

A114-2

BOLT - drain & bleed (1/4 x 1/2" N.F. hex)

2шт.

42

A41600

GASKET

- drain & bleed plug

2шт.

43

A33617

BRACKET - filter mounting

1шт.

44

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Bracket Hex, 3/8"-16 x 3/4", G5, Full Thd

3шт.

45

92-6

LOCK WASHER,3/8"

3шт.

46

A21144

CLAMP

- filter

2шт.

47

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Clamp Hex, 5/16"-18 x 7/8", G5, Full Thd

4шт.

48

92-5

LOCK WASHER,5/16"

4шт.

49

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

4шт.

50

A20539

FITTING

UNION - hose & pressure switch

1шт.

51

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

brass 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

52

A13794

TRANSMITTER

SWITCH - fuel pressure

1шт.

53

A21070

HOSE,9.53mm ID x 203.2mm L

- Final stage filter to inj. pump 0.38" ID x 8.00"

1шт.

54

217-16

ELBOW,45 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- 1/4" P.T., 45deg. brass

1шт.

56

A20650

TUBE

- filter to pump (3/8" O.D. tube)

1шт.

57

A20651

TUBE

- pump to filter (5/16" O.D. tube)

1шт.

58

A20656

BRACKET - tube clips

1шт.

59

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Bracket Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

60

92-5

LOCK WASHER,5/16"

1шт.

61

A20688

CLIP

- tube retaining (used w/A20650 tube)

1шт.

62

A27814

X

CLIP - tube retaining (used w/A20651 tube)

1шт.

63

75-412

SCREW,Rd, 1/4" x 3/4"

- clip (1/4 x 3/4" N.C. rd. hd.)

1шт.

64

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

65

25-104

NUT,1/4"-20, G5

1шт.

66

PUMP ASSY. - injection (See Figure 46)

1шт.
