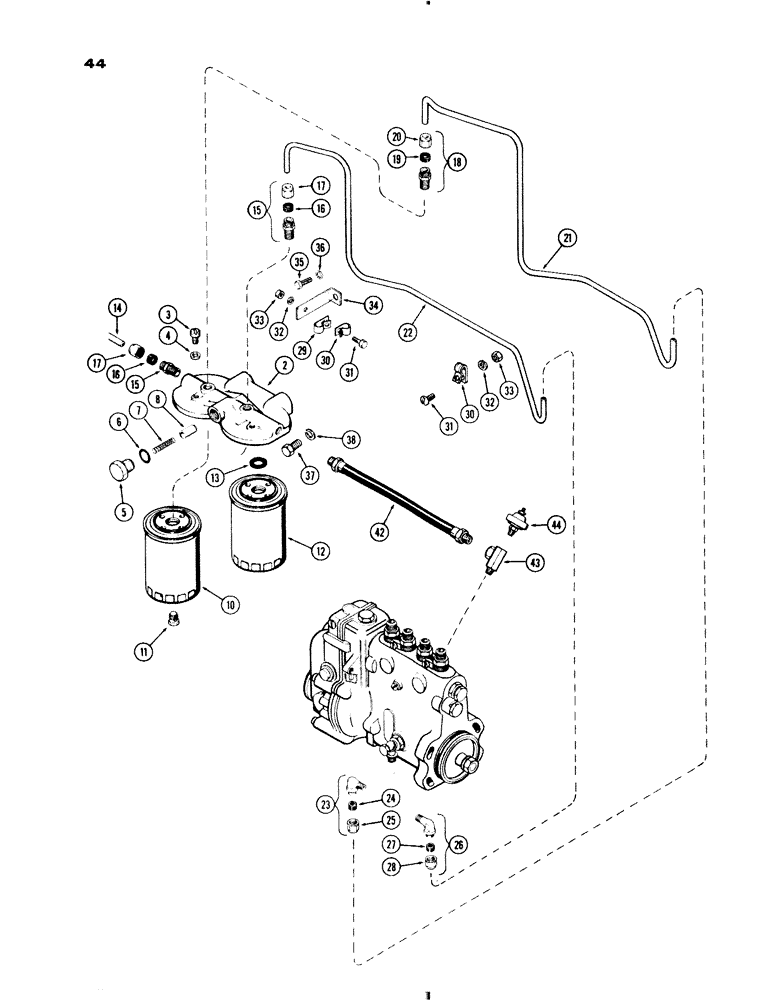

Запчасти Case IH 730 SERIES (044) - FUEL INJECTION FILTER SYST., 267 & 301 DIESEL ENG., 2 STAGE FILTER SYSTEM, 1ST USED ENG. S/N 2206716 (03) - FUEL SYSTEM

A60032

HEAD

ASSY. - 1st & 2nd stage filter, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

3

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed (#10-32 x 5/16" fill hd.)

2шт.

4

A20662

GASKET

WASHER - bleed screw (3/16 x 3/8 x 3/64" fiber)

2шт.

5

A24916

PLUG

- relief valve

1шт.

6

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - valve plug (1/2 x 11/16 x3/32")

1шт.

7

A24918

SPRING

- relief valve

1шт.

8

A24917

PLUNGER

- relief valve

1шт.

NLS

NO LONGER SERVICED

ELEMENT KIT - spin-on filters, Includes: Ref. 10 - 13

1шт.

10

NSS

NOT SOLD SEPARAT

ELEMENT ASSY. - 1st stage filter (Order A41745)

1шт.

11

221-1661

PLUG

- filter drain

1шт.

12

NSS

NOT SOLD SEPARAT

ELEMENT ASSY. - 2nd stage filter (Order A41745), Includes: Ref. 13

1шт.

13

A42315

GASKET

- 2nd stage filter

1шт.

14

A57864

LINE - fuel tank to 1st stage filter

1шт.

15

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

CONNECTOR ASSY. - 3/8" tube, 1/4" P.T. (1st stage & fuel tank line), Includes: Ref. 16 and 17

2шт.

16

222-104

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

17

222-114

NUT,5/8"-24

NUT - for 3/8" tube

1шт.

18

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSY. - 5/16" tube, 1/4" P.T. (2nd stage), Includes: Ref. 19 and 20

1шт.

19

222-103

SLEEVE,5/16" Tube

1шт.

20

222-113

TUBE NUT,9/16"-24

NUT - for 5/16" tube

1шт.

21

A57862

TUBE

- 1st stage filter to pump (3/8" O.D. tube)

1шт.

22

A57863

TUBE

- pump to 2nd stage filter (5/16" O.D. tube)

1шт.

23

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY. - 3/8" tube, 1/4" P.T. (1st stage), Includes: Ref. 24 and 25

1шт.

24

222-104

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

25

222-114

NUT,5/8"-24

NUT - for 3/8" tube

1шт.

26

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - 5/16" tube, 1/4" P.T. (2nd stage), Includes: Ref. 27 and 28

1шт.

27

222-103

SLEEVE,5/16" Tube

1шт.

28

222-113

TUBE NUT,9/16"-24

NUT - for 5/16" tube

1шт.

29

A20688

CLIP

- 1st stage tube (for 3/8" O.D. tube)

1шт.

30

A27814

X

CLIP - 2nd stage tube (for 5/16" O.D. tube)

1шт.

31

75-410

SCREW,Rd, 1/4" - 20 x 5/8"

- clips, 1/4 x 5/8" N.C. rd. hd.

1шт.

32

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

33

25-104

NUT,1/4"-20, G5

1шт.

34

A20656

BRACKET - tube clips

1шт.

35

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Bracket Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

36

92-5

LOCK WASHER,5/16"

1шт.

37

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Filter head Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

38

92-6

LOCK WASHER,3/8"

2шт.

42

A57861

HOSE

- 2nd, Serial Range: stage-pump

1шт.

43

A20539

FITTING

UNION -, Serial Range: hose-pump

1шт.

44

A13794

TRANSMITTER

SWITCH - fuel pressure

1шт.
