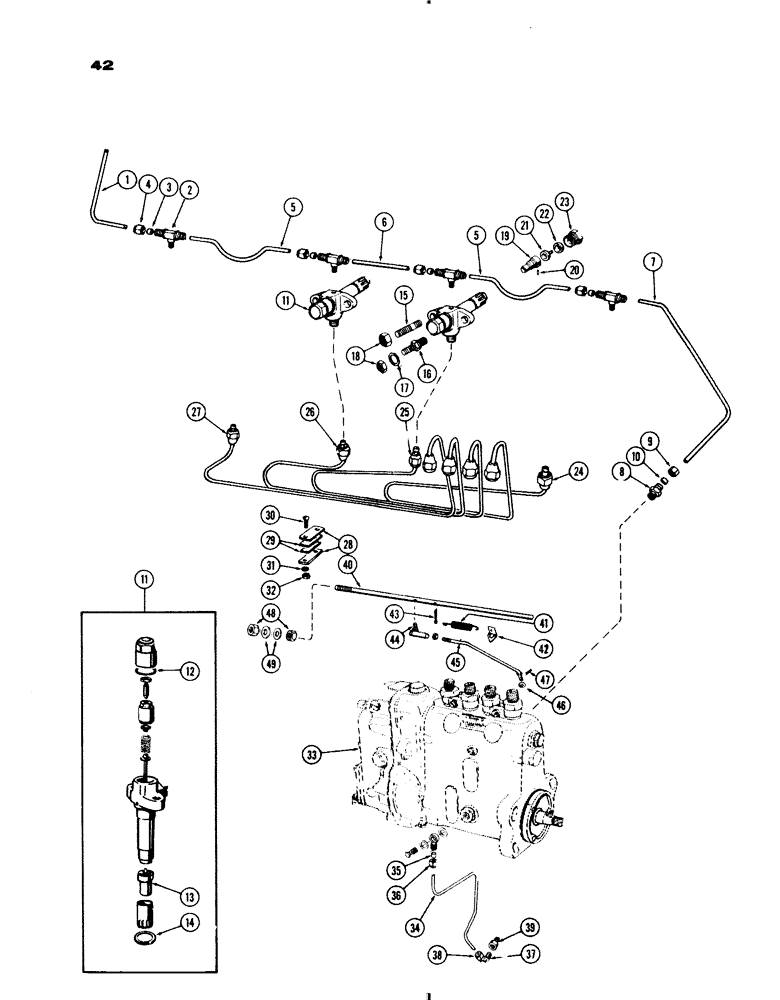

Запчасти Case IH 730 SERIES (042) - FUEL INJECTION LINES AND INJECTORS, THROTLE LINKAGE, 267 AND 301 DIESEL ENGINES (03) - FUEL SYSTEM

1

A24919

TUBE

- leak-off (to fuel tank)

1шт.

2

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

ASSY. - leak-off lines, Includes: Ref. 3 and 4

4шт.

3

222-102

SLEEVE,1/4" Tube

1шт.

4

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" O.D. tube)

1шт.

5

A27981

TUBE

- leak-off, outer

2шт.

6

A20162

TUBE

- leak-off, center

1шт.

7

A22186

TUBE

- leak-off line (to no. 1 inj?

1шт.

8

A28098

VALVE

ASSY. - check, leak-off line, Includes: Ref. 9 and 10

1шт.

9

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" O.D. tube)

1шт.

10

222-102

SLEEVE,1/4" Tube

1шт.

11

A8013

NOZZLE INJECTION

INJECTOR ASSY. - nozzle, Includes: Ref. 12 - 14

4шт.

12

A31062

GASKET

- injector cap

2шт.

13

A31159

NOZZLE INJECTION

NOZZLE ASSY. - injector, Includes: Ref. 14

1шт.

14

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

GASKET - nozzle seat

1шт.

15

A27929

STUD

- nozzle holder

4шт.

16

A10678

STUD

- nozzle holder

4шт.

17

A10679

GASKET

- holder stud

4шт.

18

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N.F. hex)

8шт.

19

A22978

BODY

- powrcel

4шт.

20

A11810

PIN,3.19mm OD x 6.99mm L

- body locating

4шт.

21

A22975

CAP

- powrcel

4шт.

22

A11812

CLAMP

- powrcel

4шт.

23

A11813

PLUG

SCREW - powrcel ret.

4шт.

24

A20501

TUBE

- inj. No. 1 cyl.

1шт.

25

A20502

TUBE

- inj. No. 2 cyl.

1шт.

26

A20503

TUBE

- inj. No. 3 cyl.

1шт.

27

A20504

TUBE

- inj. No. 4 cyl.

1шт.

28

A28046

CLAMP

- injection tubes

2шт.

29

A28047

CUSHION

- injection tube clamps

2шт.

30

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- clamp (#10 x 1" N.C., rd. hd.)

2шт.

31

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

32

129-7

NUT,Hex, #10 - 24

- (#10 N.C. hex.)

2шт.

33

NSS

NOT SOLD SEPARAT

PUMP ASSY. - injection (See Figure 46)

1шт.

34

A21786

TUBE - inj. pump to oil gallery

1шт.

35

222-102

SLEEVE,1/4" Tube

1шт.

36

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" O.D. tube)

1шт.

37

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSY. - oil tube, Includes: Ref. 38 and 39

1шт.

38

222-102

SLEEVE,1/4" Tube

1шт.

38

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" O.D. tube)

1шт.

39

221-1052

PLUG

BUSHING - reducer (3/8" to 1/8") (in block)

1шт.

40

A34101

ROD

- throttle, front, linkage

1шт.

41

A22619

SPRING

- throttle return, linkage

1шт.

42

A22620

CLIP

- return spring anchor, throttle linkage

1шт.

43

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , Throttle linkage 1/8" x 3/4"

1шт.

44

A10326

BALL JOINT

JOINT - ball, throttle link

1шт.

45

A33953

ROD

LINK - throttle rod

1шт.

46

195-15

WASHER,#12

- (1/4" small flat), throttle linkage

1шт.

47

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), , Throttle linkage 1/16" x 1/2"

1шт.

48

25-116

NUT,Hex, 3/8"-24, G5

- rod (3/8" N.F. hex), throttle linkage

2шт.

49

95-6

WASHER,3/8"

- (7/16 x 1-1/8 x 1/16"), throttle linkage

2шт.
