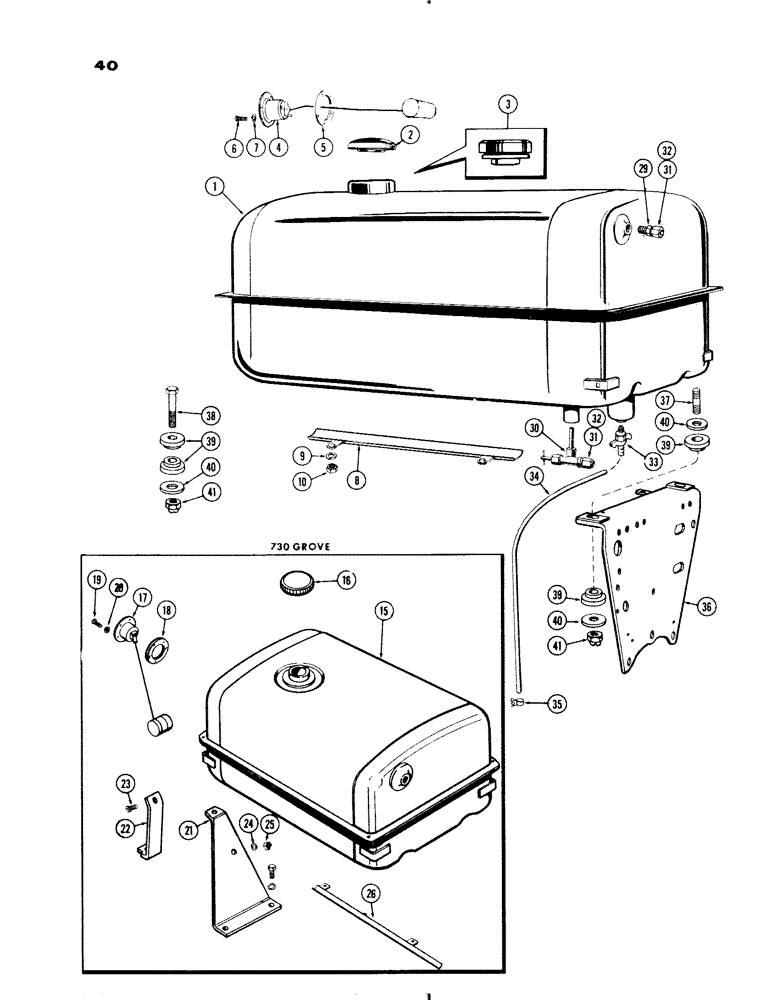

Запчасти Case IH 730 SERIES (040) - FUEL TANK, 267 AND 301 DIESEL ENGINES (03) - FUEL SYSTEM

1

A32114

TANK - fuel

1шт.

2

A32119

CAP

ASSY. fuel tank filler

1шт.

3

A32120

CAP

ASSY. - lock, w/keys (opt. w/Ref. 2) (keys to be made locally)

1шт.

4

A23481

SENDER UNIT

UNIT - sending, fuel gauge

1шт.

5

A11822

GASKET

- sending unit

1шт.

6

174-96

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- sending unit (#10 x 7/16" N.F., rd. hd.)

5шт.

7

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

8

A32121

CONDUIT - wire

2шт.

9

92-5

LOCK WASHER,5/16"

4шт.

10

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex)

4шт.

15

A36561

TANK

- fuel, 730 grove

1шт.

16

A32119

CAP

ASSY. - fuel tank filler, 730 grove

1шт.

17

A23480

SENDER UNIT

UNIT - sending, fuel gauge, 730 grove

1шт.

18

A11822

GASKET

- sending unit, 730 grove

1шт.

19

174-96

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- sending unit (#10 x 7/16" N.F. rd. hd.), 730 grove

5шт.

20

92-3

LOCK WASHER,#10

WASHER, LOCK, , 730 grove #10

5шт.

21

A23221

SUPPORT - fuel tank, rear, 730 grove

1шт.

22

A23222

BRACE - rear support, 730 grove

1шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Support to brace, 730 grove Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

24

92-6

LOCK WASHER,3/8"

730 grove 3/8"

1шт.

25

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex), 730 grove

1шт.

26

A20411

CONDUIT - wire, R.H., 730 grove

1шт.

26

A33842

CONDUIT - wire, L.H., 730 grove

1шт.

29

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSY. - leak-pff line (in fuel tank) (incl. Refs. 31 & 32), used all 730 & 830

1шт.

30

A7313

VALVE

ASSY. - fuel shut-off and outlet (incl, Refs. 31 & 32), used all 730 & 830

1шт.

31

222-102

SLEEVE,1/4" Tube

Used all 730 & 830's 1/4" Tube

1шт.

32

222-102

SLEEVE,1/4" Tube

NUT - (for 1/4" O.D. tube), Used all 730 & 830's

1шт.

33

217-107

VALVE

- drain, fuel tank, used all 730 & 830

1шт.

34

A22987

HOSE - drain (1/4" I.D. x 26"), used all 730 & 830

1шт.

35

A27042

CLIP - drain tube retainer, used all 730 & 830

1шт.

36

A11405

SUPPORT - fuel tank, front, used all 730 & 830

1шт.

37

A33227

STUD - fuel tank (3/8" N.C. x 2-11/16"), used all 730 & 830

1шт.

38

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Mtg., rear (730-830 except grove), used all 730 & 830 Hex, 3/8"-16 x 2 1/4", G5

2шт.

39

A7336

CUSHION

BUSHING - fuel tank cushion (rubber), used all 730 & 830

1шт.

40

F62051

WASHER

- (13/32 x 1-1/2" x 12 ga.), used all 730 & 830

1шт.

41

131-352

LOCK NUT,3/8"-16, GA

NUT - (3/8" N.c. self-locking), used all 730 & 830

1шт.
