(038) - AIR CLEANERS AND PRE-CLEANERS, VARIOUS TYPE ENGINES

Запчасти Case IH 730 SERIES (038) - AIR CLEANERS AND PRE-CLEANERS, VARIOUS TYPE ENGINES (02) - ENGINE

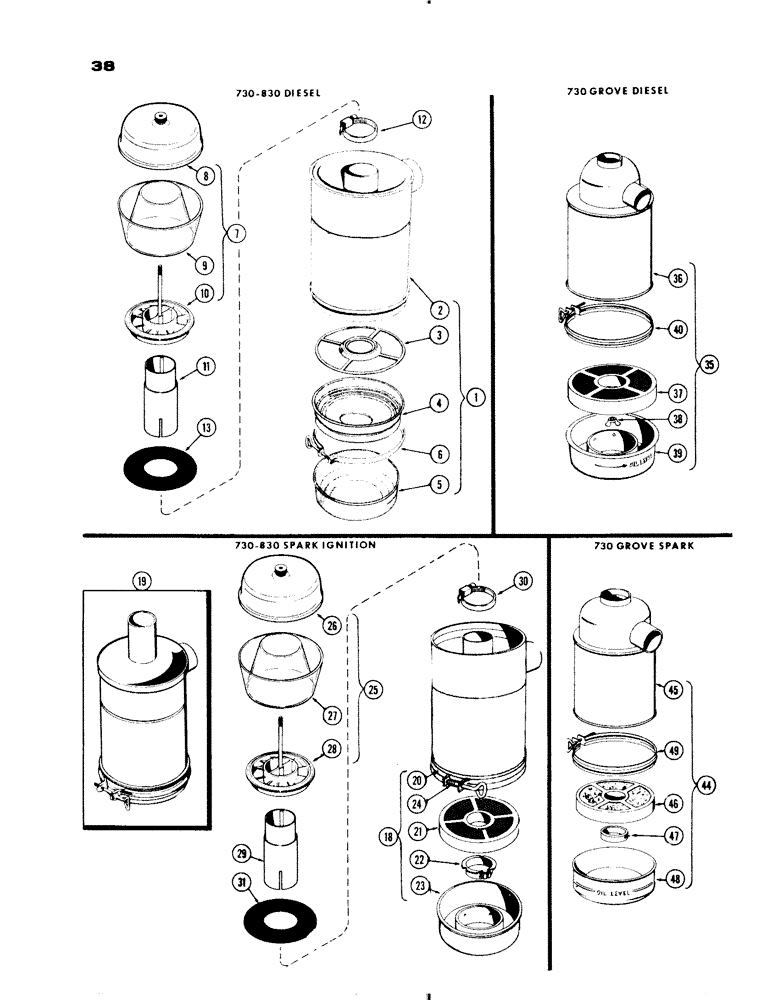

Схема запчастей Case IH 730 SERIES - (038) - AIR CLEANERS AND PRE-CLEANERS, VARIOUS TYPE ENGINES (02) - ENGINE
23
30
4
49
1
8
25
12
7
21
3
24
19
39
13
20
48
45
36
5
2
22
40
38
9
31
10
29
11
47
6
46
28
44
27
37
26
35
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A23804

CLEANER

ASSY. - air, Includes: Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - (Order A23804)

1шт.

3

A24178

SCREEN

1шт.

4

A24179

CUP - oil, inner

1шт.

5

R22420

CUP

- oil, outer (Replaces A24177)

1шт.

6

A30865

CLAMP

ASSY. - oil cup ret.

1шт.

7

A64589

PRECLEANER

PRE-CLEANER ASSY., Includes: Ref. 8 - 10

1шт.

8

73187

COVER

ASSY. - w/nut

1шт.

9

365413R1

BOWL

BODY - (clear plastic)

1шт.

10

NSS

NOT SOLD SEPARAT

BASE - (for 2-1/2" O.D. tube)

1шт.

11

A24392

EXTENSION

- pre-cleaner (2-1/2" O.D. x 6")

1шт.

12

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - extension (2-5/16" to 3-1/4" clamp)

1шт.

13

A24393

SHIELD

- extension (2-1/8 x 4-7/8 x 1/8" rubber)

1шт.

18

A24311

CLEANER ASSY. - air (incl. Refs. 20 thru 24), (251 & 284) spark ignition engs (except grove)

1шт.

19

A24567

CLEANER ASSY. - air (incl. Refs. 20 thru 24) (Extension A24437 not used w/this air cleaner), (251 & 284) spark ignition engs (except grove)

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - (Order A24311 or A24567), (251 & 284) spark ignition engs (except grove)

1шт.

21

A8295

SCREEN, (251 & 284) spark ignition engs (except grove)

1шт.

22

A8298

CLAMP ASSY. - screen, (251 & 284) spark ignition engs (except grove)

1шт.

23

A8296

CUP - oil, (251 & 284) spark ignition engs (except grove)

1шт.

24

A8297

CLAMP

ASSY. - oil cup, (251 & 284) spark ignition engs (except grove)

1шт.

25

A24439

CLEANER

PRE-CLEANER ASSY., Includes: Ref. 26 - 28, (251 & 284) spark ignition engs (except grove)

1шт.

26

73187

COVER

ASSY. - w/nut, (251 & 284) spark ignition engs (except grove)

1шт.

27

365413R1

BOWL

BODY - (clear plastic), (251 & 284) spark ignition engs (except grove)

1шт.

28

NSS

NOT SOLD SEPARAT

BASE - (for 2-1/4" O.D. tube), (251 & 284) spark ignition engs (except grove)

1шт.

29

A24437

EXTENSION

- pre-cleaner (2-1/4" O.D. x 5"), (251 & 284) spark ignition engs (except grove)

1шт.

30

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

- extension, (251 & 284) spark ignition engs (except grove) #36, 1.81/2.75 Type F Worm

1шт.

31

A24438

SHIELD

- extension (1-15/16 x 4-7/8 x 1/8" rubber), (251 & 284) spark ignition engs (except grove)

1шт.

35

A21432

CLEANER

ASSY. - air, Includes: Ref. 36 - 40, (267) diesel grove

1шт.

36

NSS

NOT SOLD SEPARAT

BODY - (Order A21432), (267) diesel grove

1шт.

37

A22194

ELEMENT

SCREEN, (267) diesel grove

1шт.

38

129-404

WING NUT,1/4"-20

NUT - screen ret. (1/4" N.C. wing), (267) diesel grove

1шт.

39

A22193

CUP - oil, (267) diesel grove

1шт.

40

A30865

CLAMP

ASSY. - oil cup ret., (267) diesel grove

1шт.

44

A11826

CLEANER ASSY. - air, Includes: Ref. 45 - 49, (251) spark ignition grove

1шт.

45

NSS

NOT SOLD SEPARAT

BODY - (Order A11826), (251) spark ignition grove

1шт.

46

A8295

SCREEN, (251) spark ignition grove

1шт.

47

A8298

CLAMP ASSY. - screen ret., (251) spark ignition grove

1шт.

48

A8296

CUP - oil, (251) spark ignition grove

1шт.

49

A8297

CLAMP

ASSY. - oil cup ret., (251) spark ignition grove

1шт.
