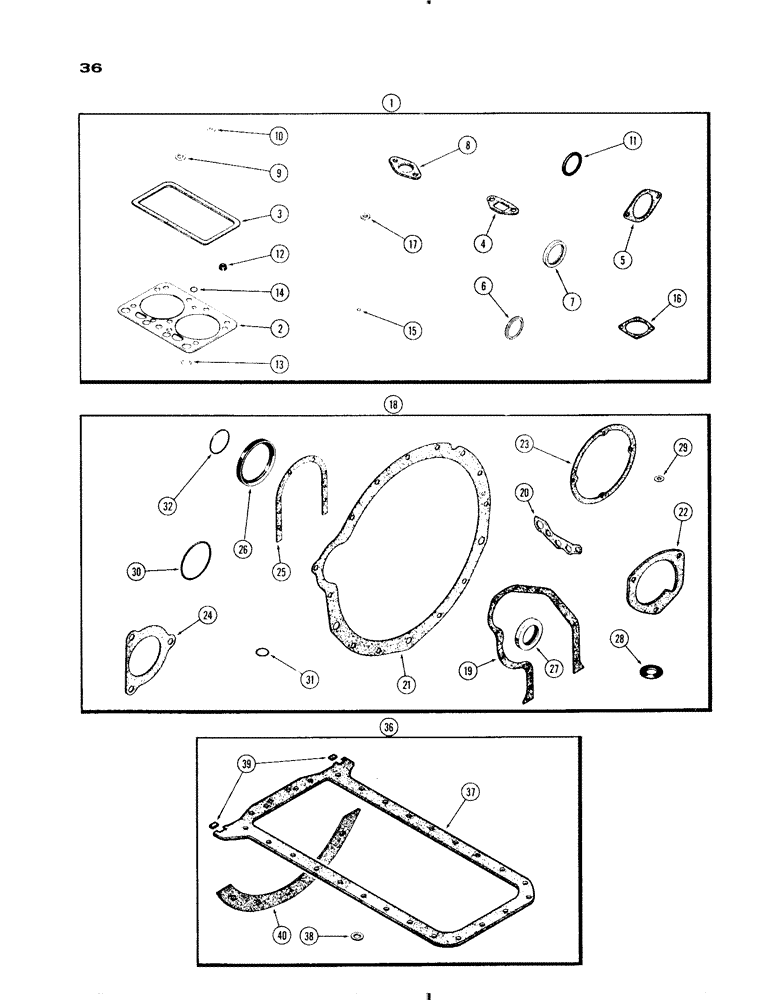

Запчасти Case IH 730 SERIES (036) - ENGINE GASKET KITS, MODEL 730, 251 SPARK IGNITION ENGINE (02) - ENGINE

1

A40899

KIT

GASKET KIT - valve grind, Replaced A40341)

1шт.

For complete engine overhaul, order: [1] A40899, [1] A40349 and [1] A40347

1шт.

2

A23118

GASKET

- cylinder head

2шт.

3

A57595

CYLINDER HEAD GASKET

- cyl. head cover (Replaces A27972)

2шт.

4

A27905

GASKET

- water manifold

4шт.

5

A28113

GASKET

- thermostat housing

1шт.

6

A27909

GASKET

- exhaust manifold

4шт.

7

A7363

MANIFOLD GASKET

- intake manifold

2шт.

8

A26434

GASKET

- carburetor

1шт.

9

A23685

GASKET

- breather tube (not used w/Grove)

2шт.

10

A23684

GASKET

GASKET - cover studs

4шт.

11

A30954

GASKET

SEAL - thermostat

1шт.

12

A10726

SEAL

SHIELD - oil, intake valve stem

4шт.

13

A7669

RING

- cyl. head water passage

4шт.

14

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - cyl. head oil passage

2шт.

15

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker shaft oil tube

2шт.

16

A27539

GASKET

- carburetor elbow (L.P. Gas)

1шт.

17

A34133

GASKET

- breather tube

2шт.

A21035

GASKET

- thermostat hsg. (Not Applicable)

1шт.

A21034

SEAL

GASKET - thermostat (Not appicable)

1шт.

18

A40349

KIT

GASKET KIT - cylinder block

1шт.

For complete engine overhaul, order: [1] A40899, [1] A40349 and [1] A40347

1шт.

19

A33018

GASKET

- timing gear cover

1шт.

20

A21084

GASKET

- oil filter base

1шт.

21

A11649

GASKET

- cyl. block (used w/torque conv.)

1шт.

22

A57596

GASKET

- water pump (Replaces A27899)

1шт.

23

A27867

GASKET

- timing gear cap

1шт.

24

A27933

GASKET

- starter

1шт.

25

A32830

GASKET

- rear seal retainer

1шт.

26

A23085

OIL SEAL

- oil, crankshaft, rear

1шт.

27

A57342

SEAL

- oil, crankshaft, front (Replaces A23433)

1шт.

28

A7292

SEAL

- oil. governor shaft

1шт.

29

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - oil pump

2шт.

30

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - hyd. pump hole cover

1шт.

31

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - distributor

1шт.

32

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O" RING - flywheel (used w/std. trans.)

1шт.

36

A40347

GASKET

KIT - oil pan

1шт.

For complete engine overhaul, order: [1] A40899, [1] A40349 and [1] A40347

1шт.

37

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A40347)

1шт.

38

A58608

GASKET

- drain plug (Replaces A27927)

1шт.

39

A33017

OIL PAN GASKET SET

- rear corner (used w/torq. conv.)

2шт.

40

A57966

GASKET

- torque convertor (lower half only)

1шт.
