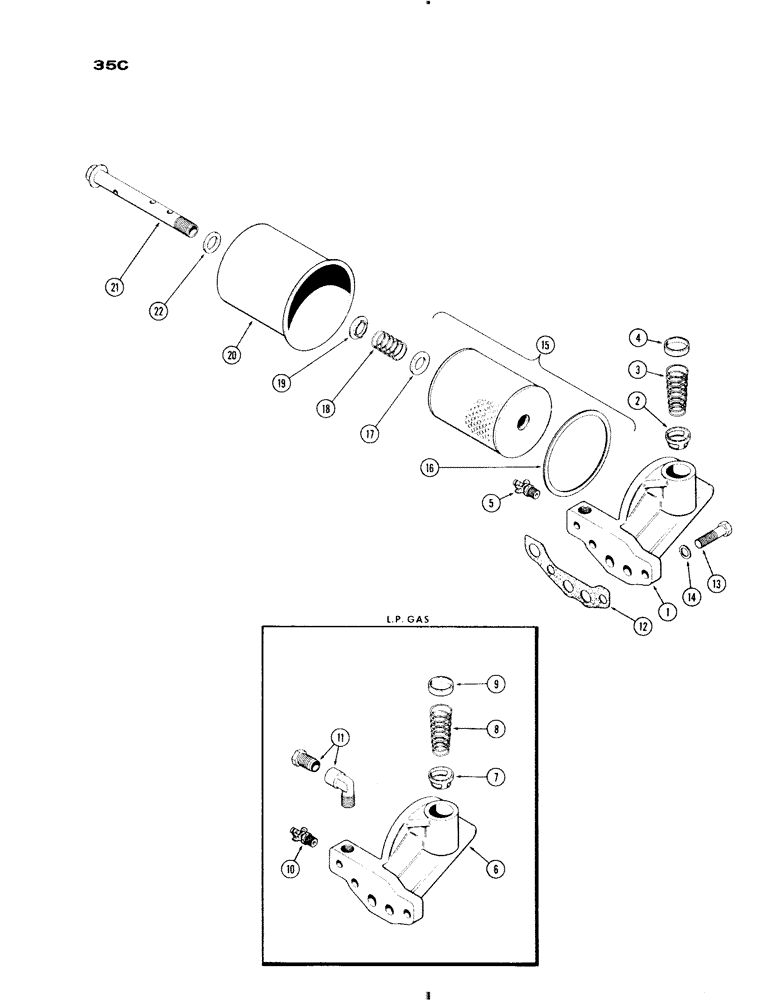

Запчасти Case IH 730 SERIES (035C) - OIL FILTER, 251 AND 284 SPARK IGNITION ENGINES (02) - ENGINE

1

A23469

BASE

ASSY. - oil filter (Gasoline), Includes: Ref. 2 - 5

1шт.

2

A21090

VALVE

- relief, oil

1шт.

3

A21091

VALVE SPRING

SPRING - relief valve

1шт.

4

41-1620

PLUG,Cup, 1 1/4", Stainless

- relief valve

1шт.

5

A23656

COCK, DRAIN

VALVE - drain, base

1шт.

6

A23471

BASE ASSY. - oil filter (LP-Gas), Includes: Ref. 7 - 11

1шт.

7

A21090

VALVE

- relief, oil

1шт.

8

A21091

VALVE SPRING

SPRING - relief valve

1шт.

9

41-1620

PLUG,Cup, 1 1/4", Stainless

- relief valve

1шт.

10

A23656

COCK, DRAIN

VALVE - drain, base

1шт.

11

222-442

ELBOW - 1/2" tube x 3/8" P.T. 90º x 3/8" NPT x 11/16"-16

1шт.

12

A21084

GASKET

- mounting, filter base

1шт.

13

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

13

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- (1/2 x 1-3/4" N.C., hex.)

1шт.

14

92-8

LOCK WASHER,1/2"

2шт.

15

A21475

ENGINE OIL FILTER

ELEMENT KIT - oil filter, Includes: Ref. 16 and 17

1шт.

16

A21473

GASKET

- mounting, filter shell

1шт.

17

A21474

GASKET

- bolt, inner

1шт.

18

A21478

SPRING

- retainer, element

1шт.

19

A21477

RETAINER

- spring

1шт.

20

A21471

SHELL

- element, filter

1шт.

21

A21476

BOLT

- mtg., filter shell & element

1шт.

22

A21479

GASKET

- bolt, outer

1шт.
