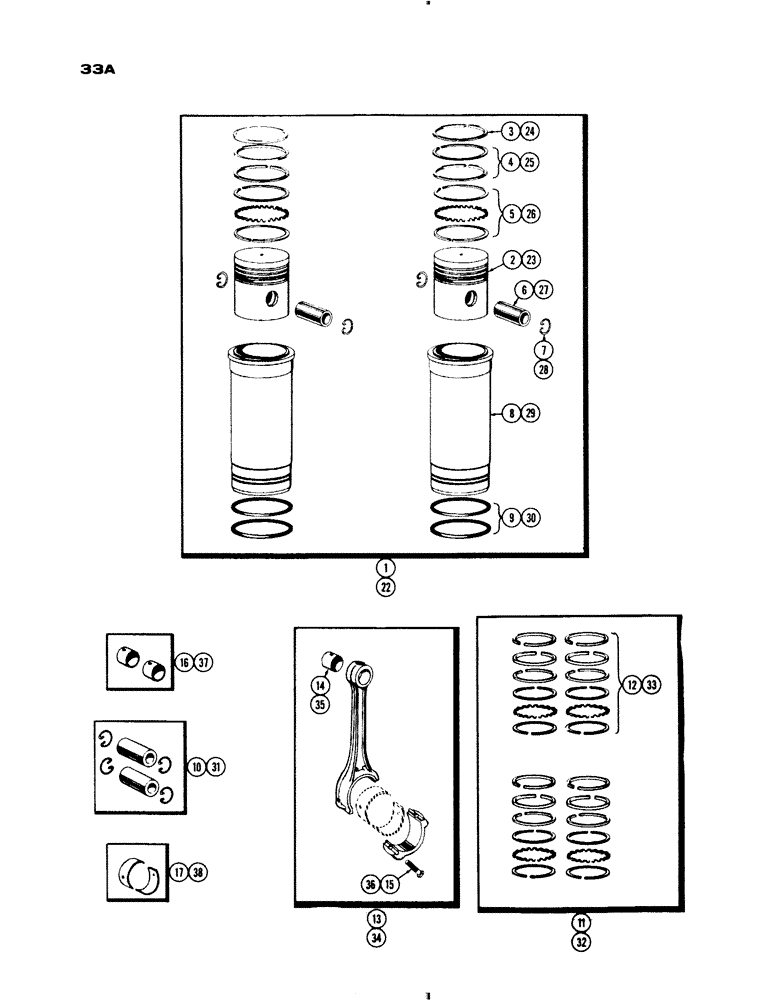

Запчасти Case IH 730 SERIES (033A) - PISTON ASSY AND CONNECTING RODS, 251 & 284 SPARK IGNIT ENG, MDL 730 W/4" BORE, MDL 830 W/4-1/4" BORE (02) - ENGINE

1

A40356

KIT

PISTON & SLEEVE KIT - (Set of 2), Includes: Ref. 2 - 9

2шт.

2

A33536

PISTON

- cylinder

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (1st Groove) (Order ref. 12)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression (2nd & 3rd Groove) (Order ref. 12)

4шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (4th Groove) (Order ref. 12)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 10)

2шт.

7

A27844

RING

- snap, piston pin ret.

4шт.

8

A23657

SLEEVE

- piston (cylinder liner)

2шт.

9

A23315

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

"O" RING - sleeve packing

4шт.

10

A21723

PIN

KIT - w/ret. rings (Set of 2)

2шт.

11

A41840

RING

KIT - re-ring (Set of 4) (Replaced A8095), Includes: Ref. 12

1шт.

12

A41838

KIT

RING KIT - re-ring (Set of 1) (Replaced A40366)

4шт.

13

A28657

ROD, CONNECTING

ROD ASSY. - connecting, Includes: Ref. 14 and 15

4шт.

14

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 16)

1шт.

15

A27848

SPECIAL BOLT,1/2" - 20 x 2 3/16"

- conn. rod cap

2шт.

16

A21721

BUSHING

KIT - piston pin (Set of 2)

2шт.

17

A20393

LINING

INSERT ASSY. - conn. rod brg. (std.)

4шт.

17

A20569

JOURNAL

INSERT ASSY. - conn. rod brg. (-.002")

4шт.

17

A20571

BEARING LINER

INSERT ASSY. - conn. rod brg. (-.010")

4шт.

17

A20573

KIT

INSERT ASSY. - conn. rod brg. (-.020")

1шт.

17

A20576

LINING

INSERT ASSY. - conn. rod brg. (-.030")

4шт.

22

A23667

SET

PISTON & SLEEVE KIT - (set of 2), model 830 w/ 4 1/4" bore, Includes: Ref. 23 - 30

2шт.

23

A20800

PISTON ASSY.

PISTON - cylinder, model 830 w/ 4 1/4" bore

2шт.

24

NSS

NOT SOLD SEPARAT

RING - compression (1st Groove) (Order ref. 33), model 830 w/ 4 1/4" bore

2шт.

25

NSS

NOT SOLD SEPARAT

RING - compression (2nd & 3rd Groove) (Order ref. 33), model 830 w/ 4 1/4" bore

4шт.

26

NSS

NOT SOLD SEPARAT

RING - oil control (4th Groove) (Order ref 33), model 830 w/ 4 1/4" bore

2шт.

27

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 31), model 830 w/ 4 1/4" bore

2шт.

28

A27844

RING

- snap, piston pin retaning, model 830 w/ 4 1/4" bore

4шт.

29

A23659

PLUG,Cup, 1 5/8"

SLEEVE - piston (cylinder liner), model 830 w/ 4 1/4" bore

2шт.

30

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - sleeve packing, model 830 w/ 4 1/4" bore

4шт.

31

A21724

KIT

PIN KIT - w/ret. rings (set of 2), model 830 w/ 4 1/4" bore

2шт.

32

A21582

RING, SET

RING KIT - re-ring (set of 4), model 830 w/ 4 1/4" bore

1шт.

33

A40367

PISTON RING SET

RING KIT - re-ring (set of 1), model 830 w/ 4 1/4" bore

4шт.

34

A28657

ROD, CONNECTING

ROD ASSY. connecting, model 830 w/ 4 1/4" bore, Includes: Ref. 35 and 36

4шт.

35

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 37), model 830 w/ 4 1/4" bore

1шт.

36

A27848

SPECIAL BOLT,1/2" - 20 x 2 3/16"

- conn. rod cap, model 830 w/ 4 1/4" bore

2шт.

37

A21721

BUSHING

KIT - (set of 2), model 830 w/ 4 1/4" bore

2шт.

38

A20393

LINING

INSERT ASSY. - conn. rod brg. (std.), model 830 w/ 4 1/4" bore

4шт.

38

A20569

JOURNAL

INSERT ASSY. - conn. rod brg. (-.002"), model 830 w/ 4 1/4" bore

4шт.

38

A20571

BEARING LINER

INSERT ASSY. - conn. rod brg. (-.010"), model 830 w/ 4 1/4" bore

4шт.

38

A20573

KIT

INSERT ASSY. - conn. rod brg. (-.020"), model 830 w/ 4 1/4" bore

4шт.

38

A20576

LINING

INSERT ASSY. - conn. rod brg. (-.030"), model 830 w/ 4 1/4" bore

4шт.
