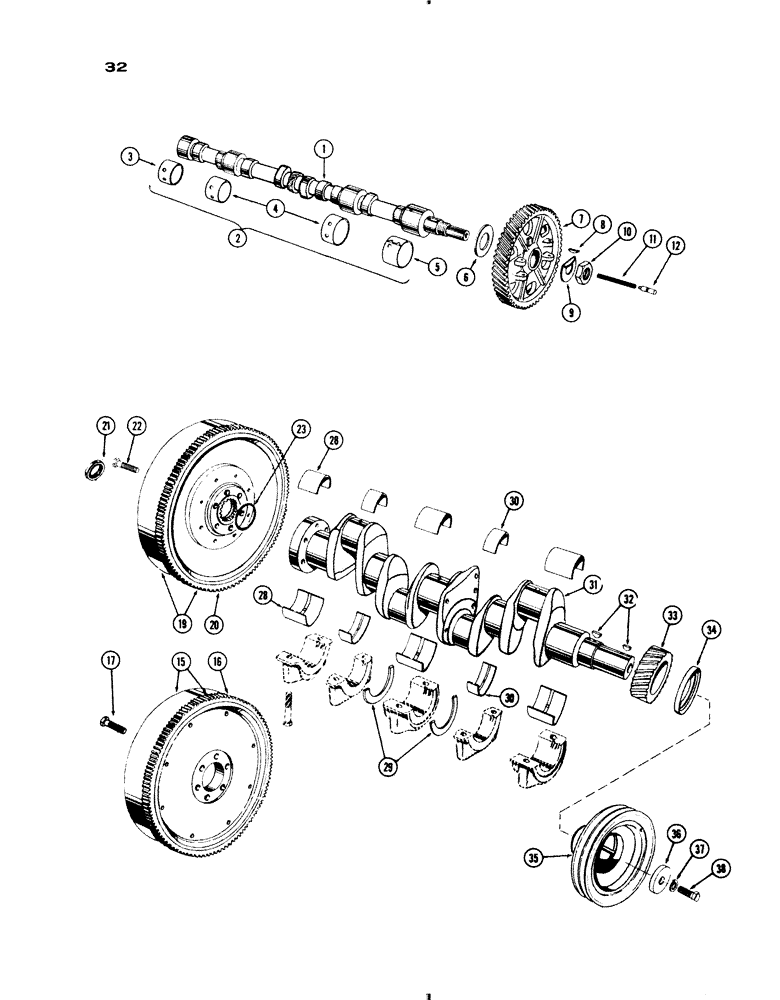

Запчасти Case IH 730 SERIES (032) - CAMSHAFT, CRANKSHAFT AND FLYWHEEL, 251 AND 284 SPARK IGNITION ENGINES (02) - ENGINE

1

A23501

CAMSHAFT

- engine

1шт.

2

A23577

KIT

BUSHING KIT - camshaft (set of 4), Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, rear (1-5/32" wide)

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, intermediate (1-7/16" wide)

2шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, front (1-21/32" wide)

1шт.

6

A21017

WASHER

- thrust, camshaft

1шт.

7

A26328

GEAR

- camshaft

1шт.

8

126-28

WOODRUFF KEY,#18, 1/4" x 1 1/8"

Gear to camshaft #18, 1/4" x 1 1/8"

1шт.

9

A26444

LOCK WASHER

- tab, camshaft nut lock

1шт.

10

A26445

NUT

- camshaft

1шт.

11

P0027853A

LARGE PIN

- thrust plunger

1шт.

12

A27852

PLUNGER

- thrust

1шт.

15

A20878

FLYWHEEL ASSY. - eng. (w/torque conv.), crankshaft, Includes: Ref. 16

1шт.

16

A20875

GEAR, RING

GEAR - ring, flywheel, crankshaft

1шт.

17

A11549

STEP BOLT

BOLT - (Used w/ref. 15) (9/16 x 1-17/32" N.F. spec.), crankshaft & flywheel

2шт.

17

A11550

BOLT (SPREADER)

BOLT - (Used w/ref. 15) (5/8 x 1-1/2" N.F. spec), crankshaft & flywheel

4шт.

19

A20876

FLYWHEEL ASSY. - eng. (w/std. trans.), crankshaft, Includes: Ref. 20

1шт.

20

A20875

GEAR, RING

GEAR - ring, flywheel, crankshaft

1шт.

21

A28237

BALL BEARING,34.99mm ID x 62mm OD x 14mm W

BEARING - pilot, flywheel, crankshaft

1шт.

22

A7136

HEX SOC SCREW,Sl Hex, 9/16" - 18 x 2 5/32"

BOLT - (Use w/ref. 19) (9/16 x 2-5/32" N.F. spec.), crankshaft & flywheel

2шт.

22

A7137

HEX SOC SCREW,Sl Hex, 5/8" - 18 x 2 1/8"

BOLT - (Use w/ref. 19) (5/8 x 2-1/8" N.F. spec), crankshaft & flywheel

4шт.

23

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O" RING - flywheel (Use w/ref. 19)92-3/4 x 3 x 1/8"), crankshaft

1шт.

28

A28687

LINING

LINER KIT - crankshaft brg. (Wide, std. size), flywheel

3шт.

28

A7182

KIT

LINER KIT - crankshaft brg. (Wide, -.002"), flywheel

3шт.

28

A7188

BEARING LINER

LINER KIT - crankshaft brg. (Wide, -.010"), flywheel

3шт.

28

A42193

LINER

KIT - crankshaft brg. (Wide, -.020") (Replaces A7194), flywheel

3шт.

28

A7200

KIT

LINER KIT - crankshaft brg. (Wide, -.030"), flywheel

3шт.

29

A27835

WASHER

- thrust, crankshaft (std.), flywheel

2шт.

29

A7204

WASHER

- thrust, crankshaft (+.006"), flywheel

2шт.

30

A20394

LINING

LINER KIT - crankshaft brg. (Narrow, std. size), flywheel

2шт.

30

A20579

LINING

LINER KIT - crankshaft brg. (Narrow, -.002"), flywheel

2шт.

30

A20582

LINING

LINER KIT - crankshaft brg. (Narrow, -.010"), flywheel

2шт.

30

A20585

KIT

LINER KIT - crankshaft brg. (Narrow, -.020"), flywheel

2шт.

30

A20588

KIT

LINER KIT - crankshaft brg. (Narrow, .030"), flywheel

2шт.

31

A22578

CRANKSHAFT - engine (Order A42802 kit), flywheel

1шт.

32

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Crankshaft gear and fan drive pulley, Flywheel #C, 5/16" x 1 1/8", HT

2шт.

33

A27837

GEAR

- crankshaft, flywheel

1шт.

34

A57342

SEAL

- oil, front (2-5/8 x 3-5/8 x 1/2") (replaces A23433), crankshaft & flywheel

1шт.

35

A23644

PULLEY

- drive, fan, crankshaft & flywheel

1шт.

36

A27905

GASKET

WASHER - drive pulley screw (replaces A23229), crankshaft & flywheel

1шт.

37

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Crankshaft & flywheel 5/8"

1шт.

38

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Drive pulley, Crankshaft & flywheel Hex, 5/8"-18 x 1 1/2", G5

1шт.
