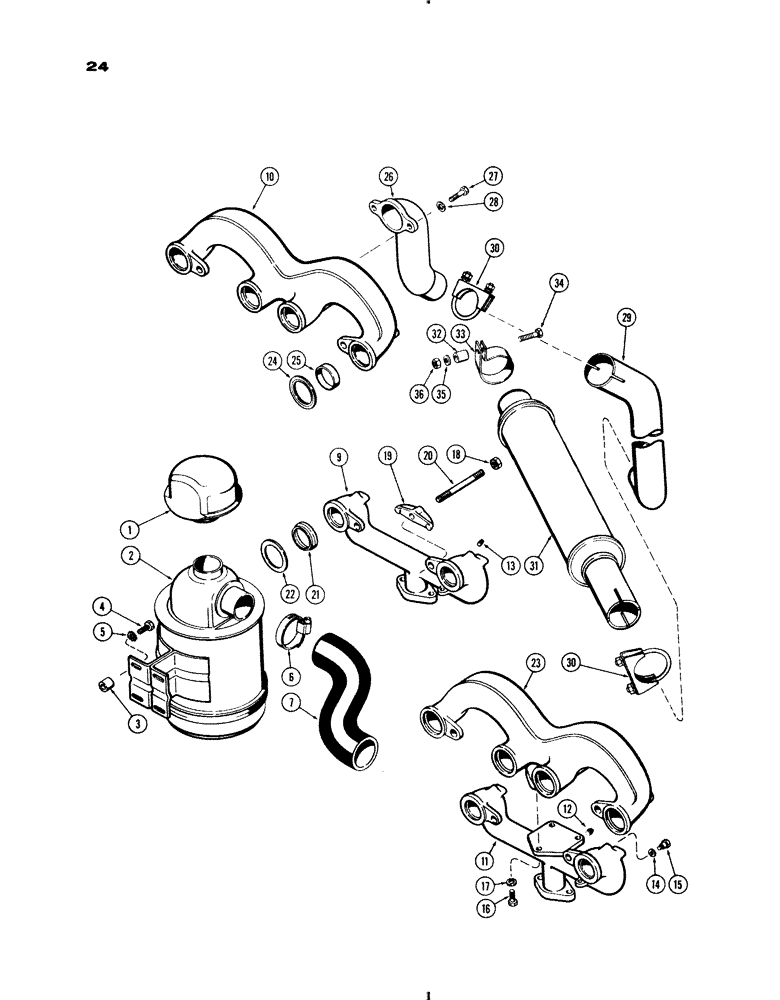

Запчасти Case IH 730 SERIES (024) - AIR CLEANER, MANIFOLD AND MUFFLER, 251 SPARK IGNITION, GROVE (02) - ENGINE

1

A21430

CAP

PRE-SCREENER - air

1шт.

2

A11826

CLEANER ASSY. - air (Repairs, Figure 38)

1шт.

3

B18083

BUSHING

SPACER - (use w/13-624 bolt) (3/8" pipe x 3/4")

1шт.

3

C3690S

SPACER - (use w/13-632 bolt) (3/8" pipe x 1-1/4")

1шт.

4

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N.C., hex.) (use w/B18083 spacer)

1шт.

4

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

(Use w/A30965 spacer) Hex, 3/8"-16 x 2", G5

1шт.

5

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - (3/8" int./ext. skpf.)

4шт.

6

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose (2-5/16" to 3-1/4")

2шт.

7

A21429

INTAKE AIR HOSE,2.25" x 7.94", SAE 10R4 Class SC 715

- Cleaner to carburetor 2.25" x 7.94", SAE 10R4 Class SC 715

1шт.

9

A20900

MANIFOLD - intkae (LP Gas)

1шт.

10

A21245

MANIFOLD - exhaust (LP Gas), muffler

1шт.

11

A18508

MANIFOLD

- intake (Gasoline), Includes: Ref. 12, muffler

1шт.

12

221-1013

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - manifold, muffler

1шт.

13

221-11

PLUG,Sq Hd, 1/8"-27

- (1/8" P.T. sq. hd.), muffler & manifold

2шт.

14

A20778

GASKET - int. manifold boss, muffler

1шт.

15

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

Muffler & manifold Hex, 5/16"-18 x 1/2", G5, Full Thd

1шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Muffler & manifold Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

17

92-6

LOCK WASHER,3/8"

muffler & manifold 3/8"

3шт.

18

25-117

NUT,7/16"-20, G5

- (7/16" N.F., hex.), muffler & manifold

4шт.

19

A24368

CLAMP

- retainer, nt. & exh. manifold, muffler

4шт.

20

A27911

STUD

- manifold (7/16" N.C./N.F. x 6"), muffler

4шт.

21

A21634

FERRULE

- manifold, intake, muffler

2шт.

22

A7363

MANIFOLD GASKET

- manifold, intake, muffler

2шт.

23

A20811

MANIFOLD - exhaust (Gasoline), muffler

1шт.

24

A27909

GASKET

- manifold, exhaust, muffler

4шт.

25

A21635

FERRULE

- manifold, exhaust, muffler

4шт.

26

A33870

ELBOW - manifold, exhaust, muffler

1шт.

27

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Muffler & manifold Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

28

92-8

LOCK WASHER,1/2"

muffler & manifold 1/2"

2шт.

29

A33872

PIPE - exhaust, muffler & manifold

1шт.

30

A13240

CLAMP,2-5/8" ID

ASSY. - exhaust pipe, muffler & manifold

2шт.

31

A24314

MUFFLER

- exhaust, muffler

1шт.

32

04265B

SPACER - mtg., muffler clamp, muffler

1шт.

33

A8593

CLAMP

ASSY. - muffler, manifold

1шт.

34

13-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

Muffler manifold Hex, 5/16"-18 x 2 3/4", G5

1шт.

35

92-5

LOCK WASHER,5/16"

muffler & manifold 5/16"

1шт.

36

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C., hex.), muffler & manifold

1шт.
