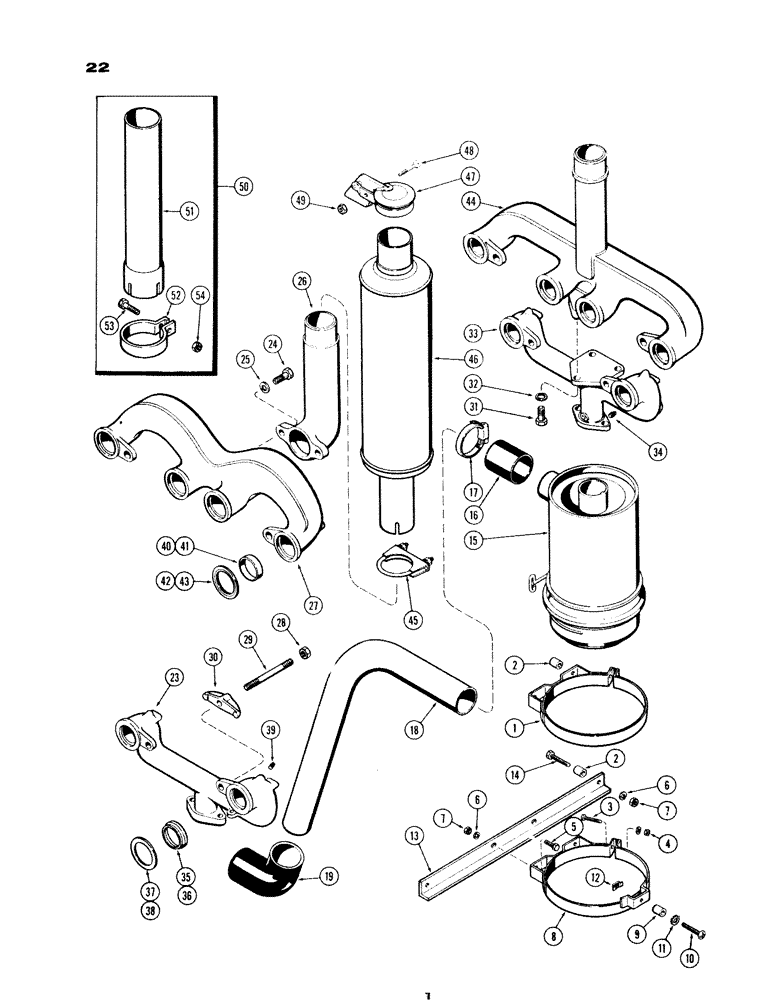

Запчасти Case IH 730 SERIES (022) - AIR CLEANER, MANIFOLD AND MUFFLER, 251 AND 284 SPARK IGNITION, EXCEPT GROVE (02) - ENGINE

1

A16504

BAND ASSY. - air cleaner, upper

1шт.

2

C3692S

SPACER - upper band & lower support

4шт.

3

75-424

SCREW

- (1/4 x 1-1/2" N.C., rd. hd.)

2шт.

4

24-224

NUT - (1/4" N.C., sq.)

2шт.

5

13-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

- (3/8 x 1-7/8" N.C., hex.)

4шт.

6

92-6

LOCK WASHER,3/8"

6шт.

7

25-106

NUT,3/8"-16, G5

- (3/8" N.C., hex.)

6шт.

8

A24308

BAND ASSY. - air cleaner, lower

1шт.

9

C3690S

SPACER - lower band, front

1шт.

10

175-442

SCREW,Phil Truss Hd, 1/4" - 20 x 1 3/4"

- (1/4 x 1-3/4" N.C., Truss hd.)

1шт.

11

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - (1/4" int./ext. skpf.)

1шт.

12

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - speed, 1/4" N.C., Tinnerman

1шт.

13

A23805

SUPPORT - lower ban, cleaner

1шт.

14

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

15

A24311

CLEANER ASSY. - air (Repair, Figure 38)

1шт.

16

A20197

HOSE ASSY.

HOSE -, Serial Range: cleaner-tube

1шт.

17

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose (2-5/16" to 3-1/4")

4шт.

18

A24309

TUBE

-, Serial Range: cleaner-carburetor

1шт.

19

A24310

HOSE

-, Serial Range: tube-carburetor

1шт.

23

A20900

MANIFOLD - intake (LP Gas), muffler

1шт.

24

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Manifold & muffler Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

25

92-8

LOCK WASHER,1/2"

manifold & muffler 1/2"

2шт.

26

A32110

ELBOW - manifold, exhaust (L.P. Gas), muffler

1шт.

27

A21245

MANIFOLD - exhaust (LP GAS), muffler

1шт.

28

25-117

NUT,7/16"-20, G5

- (7/16" N.C. hex.), manifold & muffler

4шт.

29

A27911

STUD

- manifolds (7/16" N.C./N.F. x 6"), muffler

4шт.

30

A24368

CLAMP

- retainer, int. & exh. manifold, muffler

4шт.

31

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Manifold & muffler Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

32

92-6

LOCK WASHER,3/8"

manifold & muffler 3/8"

3шт.

33

A18508

MANIFOLD

ASSY. - intake (Gasoline), muffler

1шт.

34

221-1013

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe (used on manifolds w/tapped holes), manifold & muffler

2шт.

35

A21634

FERRULE

- manifold, int. (730) (1-11/16" O.D. offset), muffler

2шт.

36

A20814

BUSHING,39.69mm ID x 42.93mm OD x 12.7mm L

FERRULE - manifold, int. (830) (1-11/16" O.D., straight), muffler

2шт.

37

A7363

MANIFOLD GASKET

- manifold, int. (730) (1-17/32" I.D. x 2-1/4" O.D.), muffler

2шт.

38

A29943

GASKET

- manifold, int. (830 series), muffler

2шт.

39

221-11

PLUG,Sq Hd, 1/8"-27

- (1/8" P.T. wq. hd.), manifold & muffler

2шт.

40

A21635

FERRULE

- manifold, exh. (730) (1-7/8" O.D., off-set), muffler

4шт.

41

A11837

FERRULE

- manifold, exh. (830) (1-7/8" O.D. straight), muffler

4шт.

42

A27909

GASKET

- manifold, exh. (730) (1-25/32" I.D. x 2-1/2" O.D.), muffler

4шт.

43

A11889

GASKET

- manifold, exh. (830) (1-29/32" I.D. x 2-5/8" O.D.), muffler

4шт.

44

A20867

MANIFOLD

- exhaust (Gasoline), muffler

1шт.

45

A13240

CLAMP,2-5/8" ID

ASSY. - muffler, manifold

1шт.

46

A24314

MUFFLER

- exhaust, manifold

1шт.

47

A33742

CAP

ASSY. - weather, muffler, manifold, Includes: Ref. 48 and 49

1шт.

48

11-532

X

BOLT - (5/16 x 2" N.C. carr.), manifold & muffler

1шт.

49

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C., hex.), manifold & muffler

1шт.

50

A33389

NO LONGER SERVICED

EXTENSION KIT - muffler, manifold, Includes: Ref. 51 - 54

1шт.

51

A33390

EXTENSION

TUBE - center, extension, muffler, manifold

1шт.

52

A33391

CLAMP

- tube, extension, manifold & muffler

1шт.

53

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

Manifold & muffler Hex, 5/16"-18 x 1 1/4", G5

1шт.

54

9635082

NUT,5/16" - 18, Gr 5

Manifold & muffler 5/16"-18, G5

1шт.
