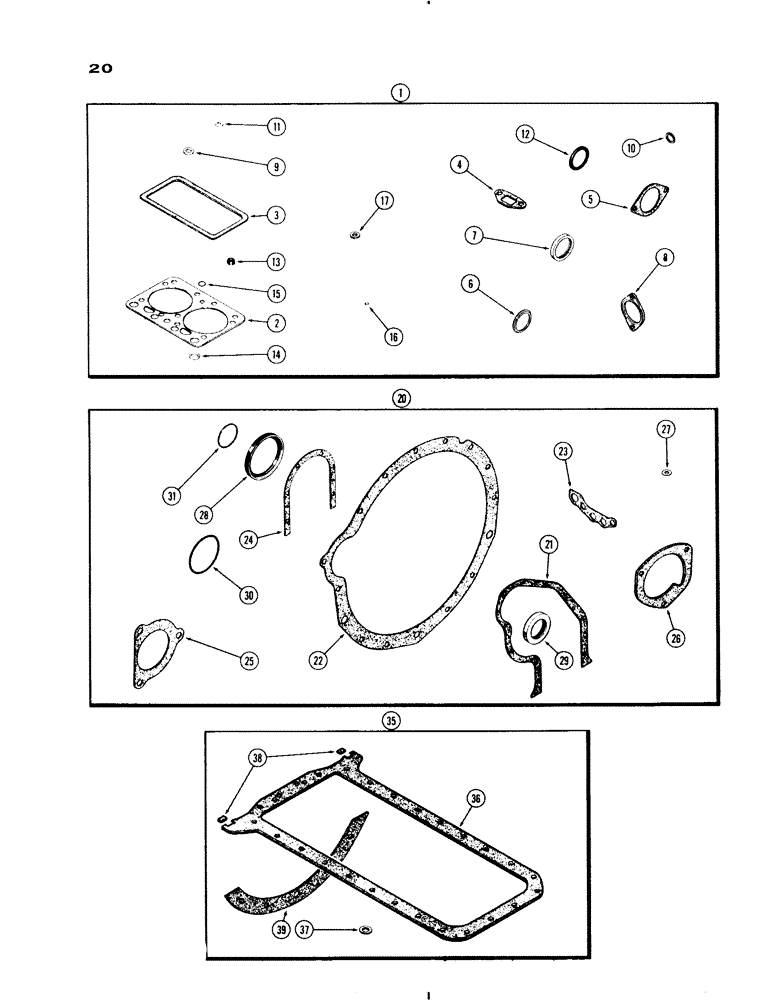

Запчасти Case IH 730 SERIES (020) - ENGINE GASKET KITS, MODEL 730, 267 DIESEL ENGINE (02) - ENGINE

1

A40346

KIT

GASKET KIT - valve grind, Includes: Ref. 2 - 17

1шт.

For complete engine overhaul, order (1) A40346, (1) A40348 and (1) A40347.

1шт.

2

A23118

GASKET

- cylinder head

2шт.

3

A57595

CYLINDER HEAD GASKET

- cyl. head cover (Replaces A27972)

2шт.

4

A27905

GASKET

- water manifold

4шт.

5

A28113

GASKET

- thermostat housing

1шт.

6

A11889

GASKET

- exhaust manifold

4шт.

7

A11888

MANIFOLD GASKET

- intake manifold

2шт.

8

A21055

MANIFOLD GASKET

- intake manifold elbow (Grove only)

1шт.

9

A23685

GASKET

- breather tube (not used w/Grove)

2шт.

10

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

GASKET - injector nozzle

4шт.

11

A23684

GASKET

GASKET - cover studs

4шт.

12

A30954

GASKET

SEAL - thermostat

1шт.

13

A10726

SEAL

SHIELD - oil, intake valve stem

4шт.

14

A7669

RING

- cyl. head water passage

4шт.

15

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - cyl. head oil passage

2шт.

16

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker shaft oil tube

2шт.

17

A34133

GASKET

- breather tube

2шт.

20

A189517

KIT

GASKET KIT - cylinder block (Replaces A40348), Includes: Ref. 21 - 31

1шт.

For complete engine overhaul, order (1) A40346, (1) A40348 and (1) A40347.

1шт.

21

A33018

GASKET

- timing gear cover

1шт.

22

A11649

GASKET

- cyl. block (used w/torque conv.)

1шт.

23

A21084

GASKET

- oil filter base

1шт.

24

A32830

GASKET

- rear oil seal retainer

1шт.

25

A27933

GASKET

- starter

1шт.

26

A57596

GASKET

- water pump (Replaces A27899)

1шт.

27

G49401

SHIM,.005" Thk

Balancer (Replaces A22670) .005" Thk

4шт.

27

G49402

SHIM,.010" Thk

Balancer (Replaces A22671) .010" Thk

4шт.

28

A23085

OIL SEAL

-oil, crankshaft, rear

1шт.

29

A57342

SEAL

- oil, crankshaft, front (Replaces A23433)

1шт.

30

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - fuel pump housing

1шт.

31

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O" RING - flywheel (used w/std. trans.)

1шт.

35

A189516

KIT

GASKET KIT - oil pan (Replaces A40347), Includes: Ref. 36 - 39

1шт.

For complete engine overhaul, order (1) A40346, (1) A40348 and (1) A40347.

1шт.

36

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order ref. 35)

1шт.

37

A58608

GASKET

- drain plug (Replaces A27927)

1шт.

38

A33017

OIL PAN GASKET SET

- rear corner (used w/torq. conv.)

2шт.

39

A57966

GASKET

- torque converter (lower half only)

1шт.
