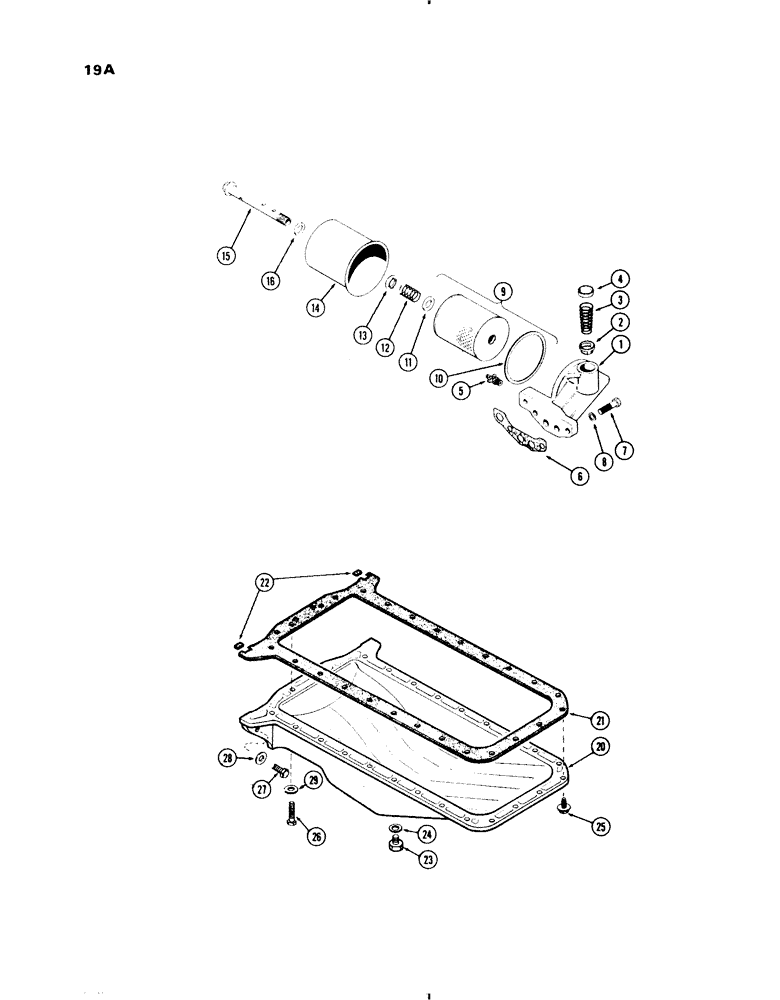

Запчасти Case IH 730 SERIES (019A) - OIL FILTER, 267 AND 301 DSL ENGINES, OIL PAN MDL 730 FOR 267 DSL ENG, MDL 830 FOR 301 DSL ENG (02) - ENGINE

1

A23469

BASE

ASSY. - oil filter, Includes: Ref. 2 - 5

1шт.

2

A21090

VALVE

- relief, filter

1шт.

3

A21091

VALVE SPRING

SPRING - relief valve

1шт.

4

41-1620

PLUG,Cup, 1 1/4", Stainless

- relief valve

1шт.

5

A23656

COCK, DRAIN

VALVE - drain, base

1шт.

6

A21084

GASKET

- filter base

1шт.

7

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

7

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- (1/2 x 1-3/4" N.C., hex.)

1шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

A21475

ENGINE OIL FILTER

ELEMENT KIT - oil filter, Includes: Ref. 10 and 11

1шт.

10

A21473

GASKET

- filter shell

1шт.

11

A21474

GASKET

- bolt, inner

1шт.

12

A21478

SPRING

- retainer, element

1шт.

13

A21477

RETAINER

- spring

1шт.

14

A21471

SHELL

- oil filter

1шт.

15

A21476

BOLT

- retainer, shell & element

1шт.

16

A21479

GASKET

- bolt, outer

1шт.

20

A57399

PAN

- oil (Replaces A33015), 730 (267) & 830 (301) diesel engines

1шт.

21

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A40347) (See Figure 20), 730 (267) & 830 (301) diesel engines

1шт.

22

A33017

OIL PAN GASKET SET

- rear corners (used w/torq. conv.), oil pan 730 (267) & 830 (301) diesel engines

2шт.

23

A14280

PLUG

- drain, oil pan, 730 (267) & 830 (301) diesel engines

1шт.

24

A27927

OIL PAN GASKET SET

- drain plug, oil pan 730 (267) & 830 (301) diesel engines

1шт.

25

193-527

WASHER,Hex, 3/8" - 16 x 1 1/4"

BOLT - (3/8 x 1-1/4" N.C. hex. sems), oil pan 730 (267) & 830 (301) diesel engines

1шт.

25

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - (3/8 x 1-1/2" N.C. hex. sems) (used w/torq. conv.), oil pan 730 (267) & 830 (301) diesel engines

4шт.

26

A57436

BOLT

- (3/8 x 5-3/4" N.C. hex.), oil pan 730 (267) & 830 (301) diesel engines

2шт.

27

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Oil pan 730 (267) & 830 (301) diesel engines Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

27

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(Used w/std. trans.), oil pan 730 (267) & 830 (301) diesel engines Hex, 1/2"-13 x 2", G5

2шт.

27

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- (1/2 x 2-1/4" N.C. hex.), oil pan 730 (267) & 830 (301) diesel engines

1шт.

28

A11648

WASHER - (used w/std. trans.) (19/32 x 1-1/2" x 10 Ga.), oil pan 730 (267) & 830 (301) diesel engines

1шт.

29

A22317

WASHER

- (25/64 x 11/16 x 18 Ga. copper), oil pan 730 (267) & 830 (301) diesel engines

2шт.
