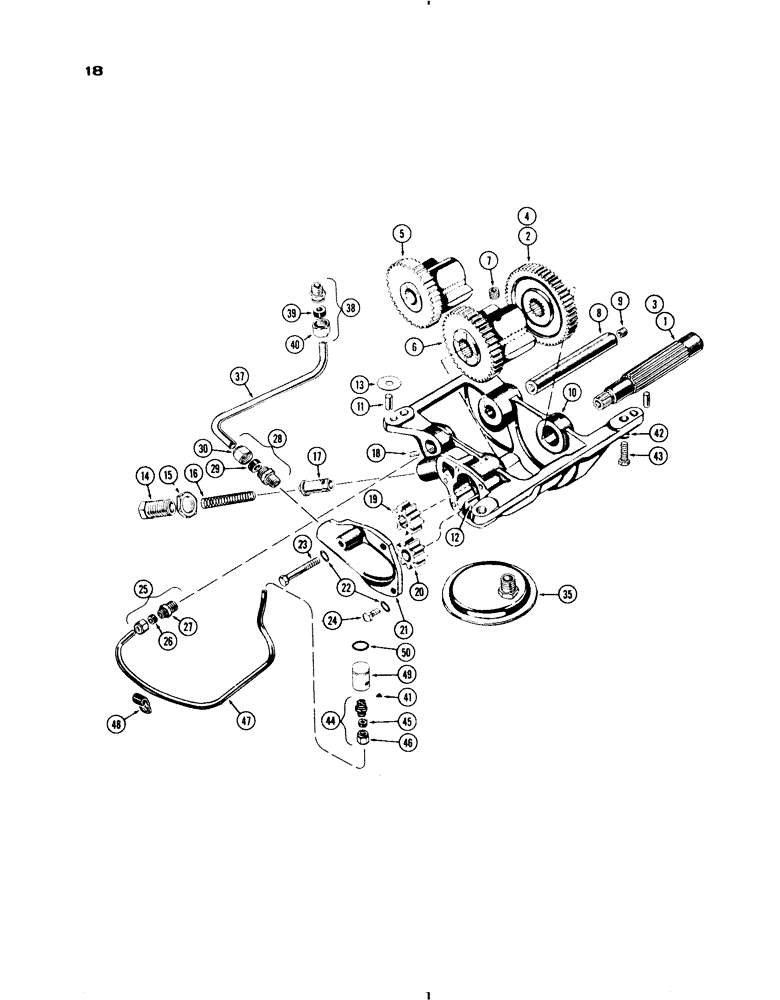

Запчасти Case IH 730 SERIES (018) - BALANCER AND OIL PUMP, 267 AND 301 DIESEL ENGINES (02) - ENGINE

A62235

BALANCER

ASSY. - w/oil pump (Incl. Refs. 1 & 2 & 5 thru 30) (1st used eng. ser. no. 2209603) (Replaces A57960), Includes: Ref. 1 - 27

1шт.

A22540

BALANCER

ASSY. - w/oil pump (incl. Refs. 3 thru 30) (Used prior to eng. ser. no. 2209603) (Order A62235), Includes: Ref. 1 - 27

1шт.

1

A57957

SHAFT

- drive, counterweight, w/out sleeve (Used w/A57960 Balancer Assy.)

1шт.

2

A57958

GEAR

- drive, counterweight , (w/partial internal spline) (Used w/A57960 Balancer Assy.)

1шт.

3

A22558

SHAFT

ASSY. - drive, counterweight (w/sleeve) (Used w/A22540 Balancer) (Order A57957 & A57958)

1шт.

4

A22562

X

GEAR - drive, counterweight (w/full internal spline) (Used w/A22540 Balancer Assy.)

1шт.

5

A62236

WEIGHT

COUNTERWEIGHT ASSY. - driven (Replaces A22546)

1шт.

6

A62238

WEIGHT

OUNTERWEIGHT - drive (Splined) (Replaces A22561)

1шт.

7

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, (3/8 x 3/8" N.C. cup pt., sckt. hd.)

1шт.

8

A22563

SHAFT

- stationary

1шт.

9

221-841

PLUG

- (1/4" P.T. hex. sckt. hd.)

1шт.

10

A22541

HOUSING ASSY. - balancer, Includes: Ref. 11 and 12

1шт.

11

A8134

PIN

- dowel, hsg. (3/8 x 3/4")

2шт.

12

A22543

SHAFT

- stub, oil pump gear

1шт.

13

G49401

SHIM,.005" Thk

Housing to cylinder block (Replaces A22670) .005" Thk

1шт.

13

G49402

SHIM,.010" Thk

Housing to cylinder block (Replaces A22671) .010" Thk

1шт.

14

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

SCREW - adj., oil pump relief

1шт.

15

A27858

NUT

- adj, screw

1шт.

16

A23598

VALVE SPRING

SPRING - relief, oil pump

1шт.

17

A22566

PLUNGER

- relief, oil pump

1шт.

18

178-40

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, (5/16 x 3/8" cone pt., hex. sckt.)

1шт.

19

A22564

GEAR

- drive, oil pump (splined)

1шт.

20

A22555

GEAR

ASSY. - oil pump, w/bushing

1шт.

21

A22565

COVER ASSY

COVER - outlet, oil pump

1шт.

22

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

5шт.

23

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Cover Hex, 5/16"-18 x 2", G5

2шт.

24

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Cover Hex, 5/16"-18 x 7/8", G5, Full Thd

3шт.

25

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSY. - oil gallery tube

1шт.

26

222-102

SLEEVE,1/4" Tube

1шт.

27

87017024

TUBE NUT,1/2"-24

NUT - (For 1/4" O.D. tube)

1шт.

28

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY. - oil pump tube, Includes: Ref. 29 and 30

1шт.

29

222-106

SLEEVE,5/8" Tube

- (For 5/8" O.D. tube)

1шт.

30

222-116

TUBE NUT,1"-18

NUT - (For 5/8" O.D. tube)

1шт.

35

A22590

FILTER SCREEN

SCREEN ASSY. - oil inlet

1шт.

37

A22595

TUBE

- oil, Serial Range: pump-filter

1шт.

38

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY. - oil pump tube, Includes: Ref. 39 and 40

1шт.

39

222-106

SLEEVE,5/8" Tube

- (For 5/8" O.D. tube)

1шт.

40

222-116

TUBE NUT,1"-18

NUT - (For 5/8" O.D. tube)

1шт.

41

A22593

SET SCREW,1/4" - 18 x 7/8"

- set, Serial Range: plug-block

1шт.

42

92-8

LOCK WASHER,1/2"

4шт.

43

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Housing Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

44

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

CONNECTOR ASSY. - oil gallery tube, Includes: Ref. 45 and 46

1шт.

45

222-102

SLEEVE,1/4" Tube

- (For 1/2" O.D. tube)

1шт.

46

87017024

TUBE NUT,1/2"-24

NUT - (For 1/4" O.D. tube)

1шт.

47

A22596

TUBE

- oil gallery to balancer shaft

1шт.

48

A20541

CLIP

- oil tube

1шт.

49

A57075

PLUG

- oil gallery, cyl. block (used w/Ref. 50)

1шт.

49

A22592

PLUG

- oil gallery, cyl. block (not mach. for "O"ring)

1шт.

50

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING -lug (1-3/16 x 1-7/16 x 1/8") (used w/A57075)

1шт.
