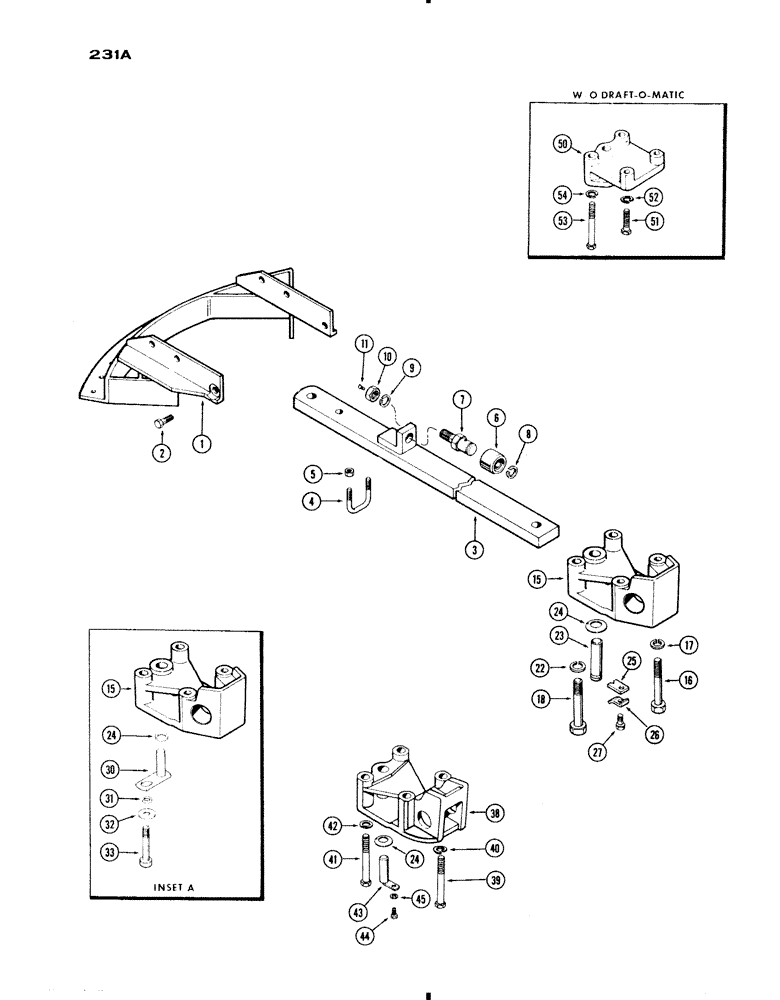

Запчасти Case IH 730 SERIES (231A) - DRAWBAR, 730 GROVE (09) - CHASSIS/ATTACHMENTS

1

A33435

SUPPORT - swinging drawbar

1шт.

2

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Support Hex, 3/4"-10 x 2", G5

4шт.

2

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

Support Hex, 3/4"-10 x 2 1/4", G5

2шт.

3

A33916

DRAWBAR

1шт.

4

A32945

BOLT

"U" BOLT - drawbar clamp

1шт.

5

25-108

NUT,1/2"-13, G5

- "U" bolt (1/2" N.C. hex.)

2шт.

6

A27010

ROLLER

- drawbar

1шт.

7

A32946

BOLT

- drawbar roller

1шт.

8

A27012

RING

- snap, roller bolt ret.

1шт.

9

92-18

LOCK WASHER,1 1/8"

1 1/8"

1шт.

10

129-131

NUT,1 1/8"-12, G5

- roller bolt (1-1/8" N.F. hex.)

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.)

1шт.

15

A57956

BRACKET

- drawbar (Used w/Draft-O-Matic), Start Serial: 8348489

1шт.

16

15-1080

X

BOLT - bracket (5/8 x 5" N.C. hex.)

2шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

18

15-1284

BOLT

- bracket (3/4 x 5-1/4" N.C. hex.)

2шт.

22

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

23

A34110

PIN

- drawbar pivot (Order 1-A57929, 1-!57932, 1-15-1288, 1-15-1280 & 1-95-12) (See Inset A)

1шт.

24

A35270

WASHER

- anti-rattle (spring type)

1шт.

25

A57524

STRAP

- pivot pin ret. (Replaces A34111)

1шт.

26

A34091

LOCK - pivot pin (Use 92-6 washer for repairs)

1шт.

27

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Pivot pin Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

30

A57932

PIN

- pivot, drawbar (See Inset A)

1шт.

31

A57929

SPACER

- pivot pin (25/32 x 1-1/8 x 7/32")

1шт.

32

95-12

WASHER,3/4"

- (13/16 x 2 x 5/32")

1шт.

33

15-1288

BOLT - bracket (3/4 x 5-1/2" N.C. hex.) (Used w/D-O-M)

1шт.

33

15-1280

BOLT

- bracket (3/4 x 5" N.C hex.) (Used w/out D-O-M)

1шт.

38

A33406

BRACKET - drawbar (Used w/Draft-O-Matic), Serial Range: -8348489

1шт.

39

15-1076

BOLT - (5/8 x 4-3/4" N.C. hex.)

2шт.

40

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

41

13-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

- brkt. (3/4 x 4-3/4" N.C. hex.)

2шт.

42

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

43

A32211

X

PIN - drawbar pivot (Order 1-A57929, 1-A57932, 1-15-1288, 1-15-1280 & 1-95-12) (See Inset A)

1шт.

44

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Pivot pin Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

45

92-6

LOCK WASHER,3/8"

1шт.

50

A57201

BRACKET

- drawbar (used w/out draft-o-matic) (Replaces A33005)

1шт.

51

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- (5/8 x 2-3/4" N.C. hex.)

2шт.

52

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

53

13-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

- (3/4 x 4-3/4" N.C. hex.)

2шт.

54

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.
