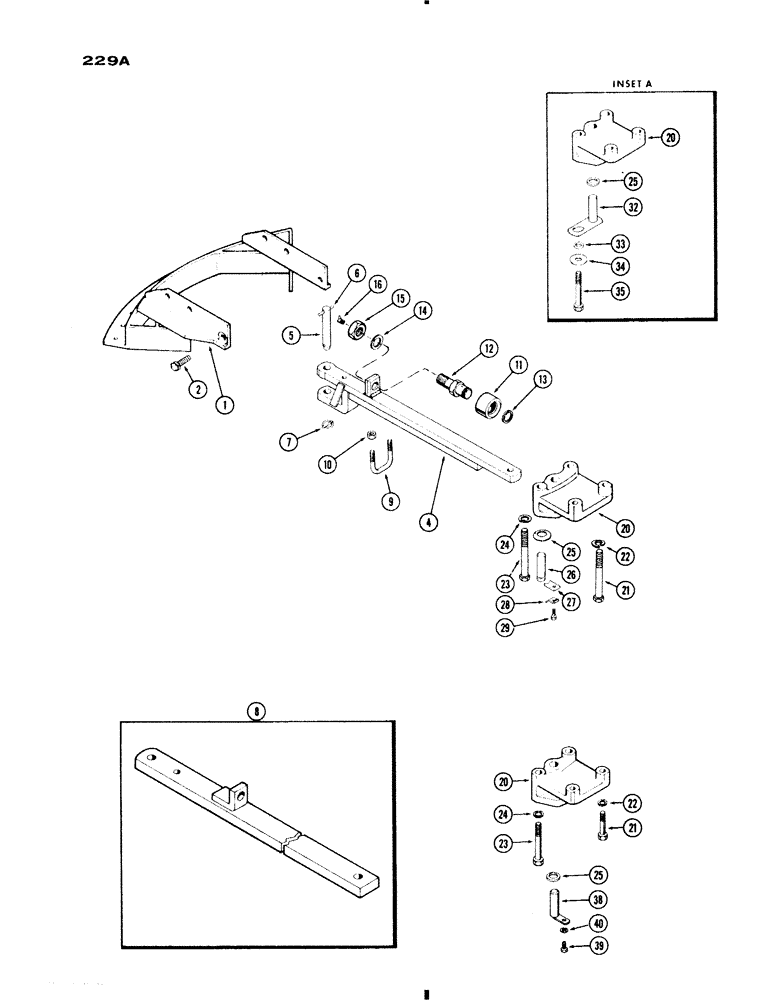

Запчасти Case IH 730 SERIES (229A) - DRAWBAR, WESTERN (09) - CHASSIS/ATTACHMENTS

1

A33435

SUPPORT - drawbar

1шт.

2

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

Support Hex, 3/4"-10 x 1 3/4", G5

2шт.

2

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Support Hex, 3/4"-10 x 2", G5

4шт.

4

A57419

DRAWBAR, Start Serial: 8330833

1шт.

5

A57998

PIN

ASSY. - drawbar (clevis end) (used w/A57419 drawbar), Includes Ref. 6 and 7

1шт.

6

135-817

GROOVED PIN,3/8" x 3 1/4", Type E

PIN - handle (3/8 x 3-1/4" roll)

1шт.

7

A30338

PIN

- klick

1шт.

8

A33916

DRAWBAR

, Serial Range: -8330833

1шт.

9

A32945

BOLT

"U" BOLT - drawbar clamp

1шт.

10

25-108

NUT,1/2"-13, G5

- "U" bolt (1/2" N.C. hex.)

2шт.

11

A27010

ROLLER

- drawbar

1шт.

12

A32946

BOLT

- drawbar roller

1шт.

13

A27012

RING

- snap, roller bolt ret.

1шт.

14

92-18

LOCK WASHER,1 1/8"

1 1/8"

1шт.

15

129-131

NUT,1 1/8"-12, G5

- roller bolt (1-1/8" N.F. hex.)

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.

20

A57201

BRACKET

- drawbar (replaces A33005)

1шт.

21

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- (5/8 x 2-3/4" N.C. hex.)

2шт.

22

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

23

13-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

- (3/4 x 4-3/4" N.C. hex.)

2шт.

24

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

25

A35270

WASHER

- anti-rattle (spring type)

1шт.

26

A34110

PIN

- drawbar pivot (Order 1-A57929. 1-A57932, 1-15-1280 & 1-95-12) (See Inset A)

1шт.

27

A57524

STRAP

- pivot pin retaining (replaces A34111)

1шт.

28

A34091

LOCK - pivot pin (Use 92-6 washer for repairs)

1шт.

29

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Pivot pin Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

32

A57932

PIN

- pivot, drawbar (See Inset A)

1шт.

33

A57929

SPACER

- pivot pin (25/32 x 1-1/8 x 7/32")

1шт.

34

95-12

WASHER,3/4"

- (13/16 x 2 x 5/32")

1шт.

35

15-1280

BOLT

- bracket (3/4 x 5" N.C. hex.)

1шт.

38

A32211

X

PIN - drawbar pivot (Order 1-A57929, 1-A57932, 1-15-1280 & 1-95-12) (See Inset A)

1шт.

39

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Pivot pin Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

40

92-6

LOCK WASHER,3/8"

1шт.
