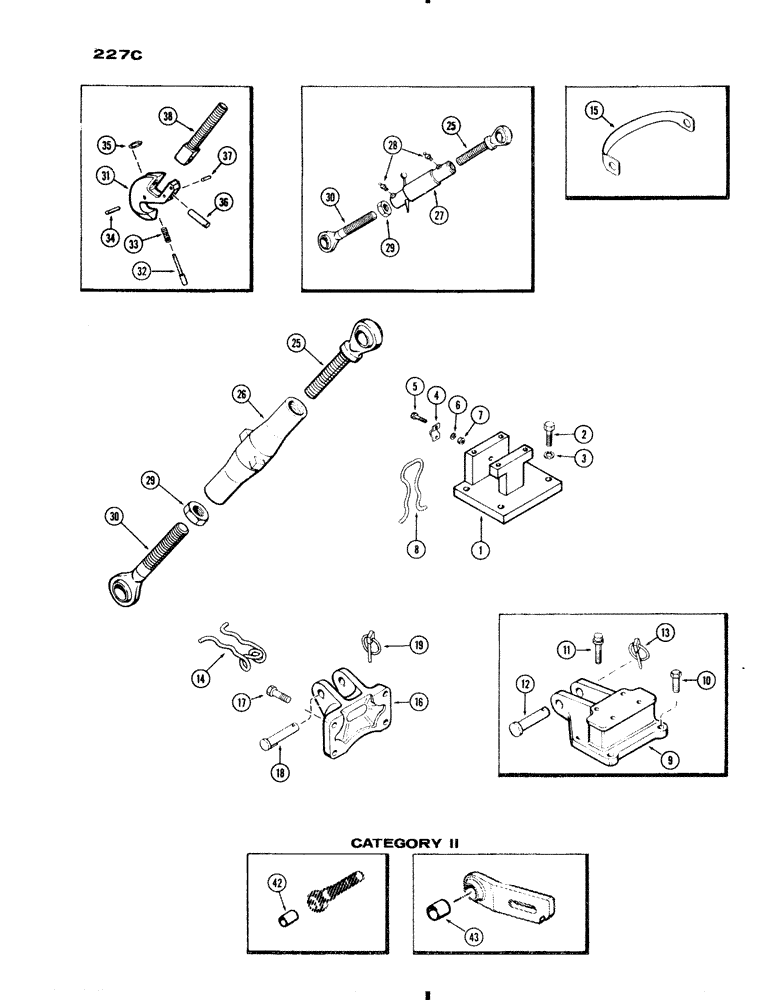

Запчасти Case IH 730 SERIES (227C) - THREE POINT HITCH, UPPER LIFT LINK AND SUPPORT (09) - CHASSIS/ATTACHMENTS

1

A57985

BRACKET - upper link & seat, Start Serial: 8358425

1шт.

2

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Bracket Hex, 5/8"-11 x 1 1/2", G5, Full Thd

4шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

A57983

RETAINER - turnbuckle transport clip

1шт.

5

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Retainer Hex, 1/4"-20 x 1 1/4", G5

2шт.

6

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

25-104

NUT,1/4"-20, G5

2шт.

8

A57982

CLIP - turnbuckle transport

1шт.

9

A33504

BRACKET - upper link & seat, Serial Range: -8351547

1шт.

10

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Bracket Hex, 5/8"-11 x 2", G5

2шт.

11

166-115

12 PT SCREW,Flg, 5/8" - 11 x 2", Gr 8

- bracket (5/8 x 2" N.F. 12 pt. hd.)

2шт.

12

A33432

PIN

- upper link

1шт.

13

A33509

PIN,11.18mm OD

ASSY. - click

1шт.

14

A34242

CLIP

- mast ret. (spring clip)

1шт.

15

A33719

STRAP

- mast ret. (plastic) (order A34242)

1шт.

16

A32255

BRACKET - upper link mounting

1шт.

17

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

Mounting bracket Hex, 5/8"-11 x 1 3/4", G5, Full Thd

4шт.

18

A33432

PIN

- mounting bracket

1шт.

19

A33509

PIN,11.18mm OD

ASSY. - klick

1шт.

25

A34196

LIFT LINK END ASSY,1 1/4" - 12 x 6 1/2"

- upper link, front

1шт.

26

A57498

TURNBUCKLE

- upper link adjusting (1st used trans. ser. no. 2229995)

1шт.

27

A32260

TURNBUCKLE - upper link adjusting (Order A57498) (used prior to trans. ser. no. 2229995)

1шт.

28

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.) (used w/A32260)

2шт.

29

25-1520

NUT

- turnbuckle lock (1-1/4" N.F. hex. jam)

1шт.

30

A34198

LIFT LINK END ASSY,1 1/4" - 12 x 6 1/2"

- upper link, rear

1шт.

1st used Trans. Ser. No. 8259583

1шт.

31

NS

NOT SERVICED

CLAW - upper link, rear (Order A34198)

1шт.

Used prior to Trac. Ser. No. 8259583

1шт.

32

NS

NOT SERVICED

PIN - claw lock (Order A34198)

1шт.

Used prior to Trac. Ser. No. 8259583

1шт.

33

NS

NOT SERVICED

SPRING - claw lock (Order A34198)

1шт.

Used prior to Trac. Ser. No. 8259583

1шт.

34

NS

NOT SERVICED

PIN - lock guide (Order A34198)

1шт.

Used prior to Trac. Ser. No. 8259583

1шт.

35

NS

NOT SERVICED

RING - pull, lock pin (Order A34198)

1шт.

Used prior to Trac. Ser. No. 8259583

1шт.

36

NS

NOT SERVICED

PIN - claw hinge (Order A34198)

1шт.

Used prior to Trac. Ser. No. 8259583

1шт.

37

NS

NOT SERVICED

PIN - hinge pin ret. (Order A34198)

1шт.

Used prior to Trac. Ser. No. 8259583

1шт.

38

NS

NOT SERVICED

LINK - claw (Order A34198)

1шт.

Used prior to Trac. Ser. No. 8259583

1шт.

42

A33499

ADAPTER

- upper (Cat. I to Cat. II hitch pins)

1шт.

43

A33498

ADAPTER

- lower (Cat. I to Car. II hitch pins)

2шт.
