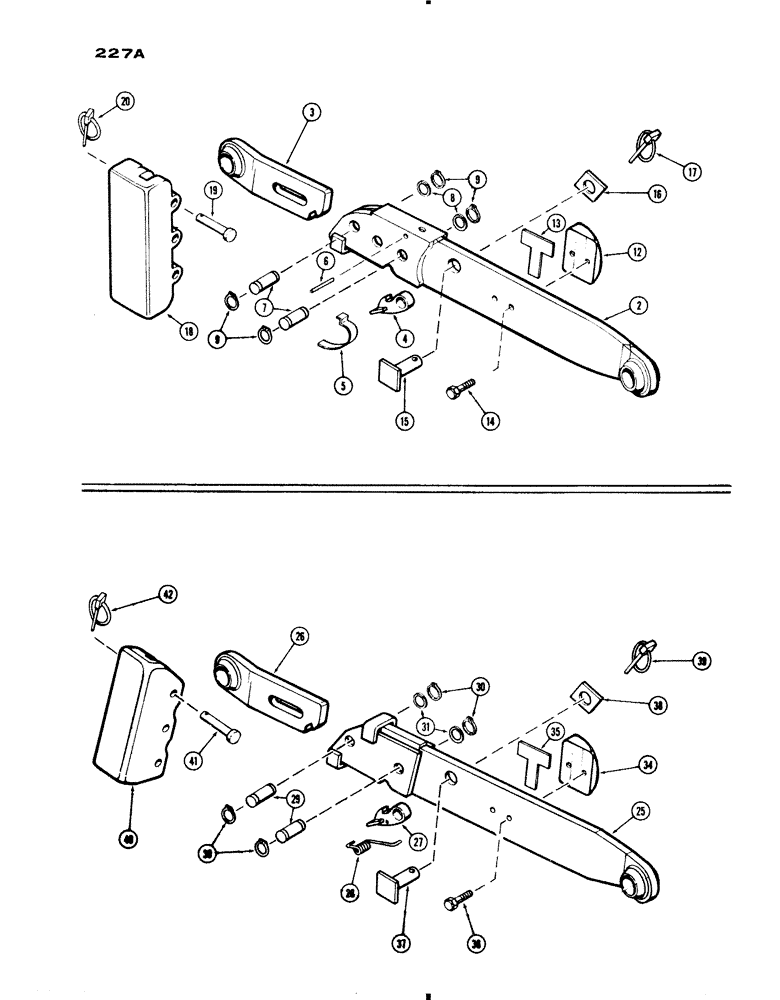

Запчасти Case IH 730 SERIES (227A) - THREE POINT HITCH, USED BEFORE AND AFTER TRAC. S/N 8328400 (09) - CHASSIS/ATTACHMENTS

A57732

ARM

ASSY. - draft, right hand (1st used trac. ser. no. 8348489), Includes: Ref. 2 - 9

1шт.

A57190

ARM ASSY. - draft, right hand (Used prior to trac. ser. no. 8348489), Includes: Ref. 2 - 9

1шт.

A57733

ARM

ASSY. - draft, left hand (1st used trac. ser. no. 8348489), Includes: Ref. 2 - 9

1шт.

A57191

ARM

ASSY. - draft, left hand (Used prior to trac. ser. no. 8348489), Includes: Ref. 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

ARM - (Order A57732, A57733, A57190 or A57191)

1шт.

3

A57196

LINK

ASSY. - folding, right hand

1шт.

3

A57197

LINK

ASSY. - folding, left hand

1шт.

4

A57199

LATCH

- folding link

1шт.

5

A57200

SPRING

- folding link latch

1шт.

6

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

PIN, 1/4" x 1 3/8", Slotted

1шт.

7

A33530

PIN,19.05mm OD x 50.01mm L

- latch & folding link

2шт.

8

A34059

WASHER

- latch pin (inside) (3/4 x 1-1/8 x 20 Ga.)

2шт.

9

A33531

SNAP RING,#75, Ext

RING - snap, , latch pin #75, Ext

4шт.

12

A32973

BLOCK

- draft arm sway

2шт.

13

A33959

SHIM,.0598" Thk

Sway block .0598" Thk

1шт.

14

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Sway block Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

15

A32252

PIN

- yoke retaining

2шт.

16

A32253

BLOCK

- yoke pin

2шт.

17

A33509

PIN,11.18mm OD

ASSY. - klick

2шт.

18

A60419

STOP

- draft arm sway (Replaces A32964) (Order A62428)

2шт.

19

A32965

PIN,15.88mm OD x 74.61mm L

- stop retaining

4шт.

20

A33497

LINCH PIN,4.76mm OD Pin

PIN ASSY. - klick

4шт.

A34263

ARM ASSY. - draft, L.H. (Replaces A34063) (Order A57191), Includes: Ref. 25 - 31, Serial Range: -8328400

1шт.

A34262

ARM ASSY. - draft, R.H. (Replaces A34062) (Order A57190), Includes: Ref. 25 - 31, Serial Range: -8328400

1шт.

25

NSS

NOT SOLD SEPARAT

ARM - (Order A57191 or A57190), Serial Range: -8328400

1шт.

26

A34055

LINK

- folding, left hand (Order A57197), Serial Range: -8328400

1шт.

26

A34054

LINK

- folding, right hand (Order A57196), Serial Range: -8328400

1шт.

27

A34118

LATCH

- folding link, Serial Range: -8328400

1шт.

28

A32972

SPRING

- latch, Serial Range: -8328400

1шт.

29

A33530

PIN,19.05mm OD x 50.01mm L

- latch & folding link, Serial Range: -8328400

2шт.

30

A33531

SNAP RING,#75, Ext

RING - snap, , pin #75, Ext, Serial Range: -8328400

4шт.

31

A34059

WASHER

- latch pin (3/4 x 1-1/8" x 20 Ga.), Serial Range: -8328400

2шт.

34

A32973

BLOCK

- draft arm sway, Serial Range: -8328400

2шт.

35

A33959

SHIM,.0598" Thk

Block .0598" Thk, Serial Range: -8328400

1шт.

36

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Sway block Hex, 1/2"-13 x 1 1/2", G5, Full Thd, Serial Range: -8328400

4шт.

37

A32252

PIN

- yoke retaining, Serial Range: -8328400

2шт.

38

A32253

BLOCK

- yoke pin, Serial Range: -8328400

2шт.

39

A33509

PIN,11.18mm OD

ASSY. - klick, Serial Range: -8328400

2шт.

40

A32964

STOP

- draft arm sway (Order A60419), Serial Range: -8328400

2шт.

41

A32965

PIN,15.88mm OD x 74.61mm L

- stop retaining, Serial Range: -8328400

4шт.

42

A33497

LINCH PIN,4.76mm OD Pin

PIN ASSY. - klick, Serial Range: -8328400

4шт.
