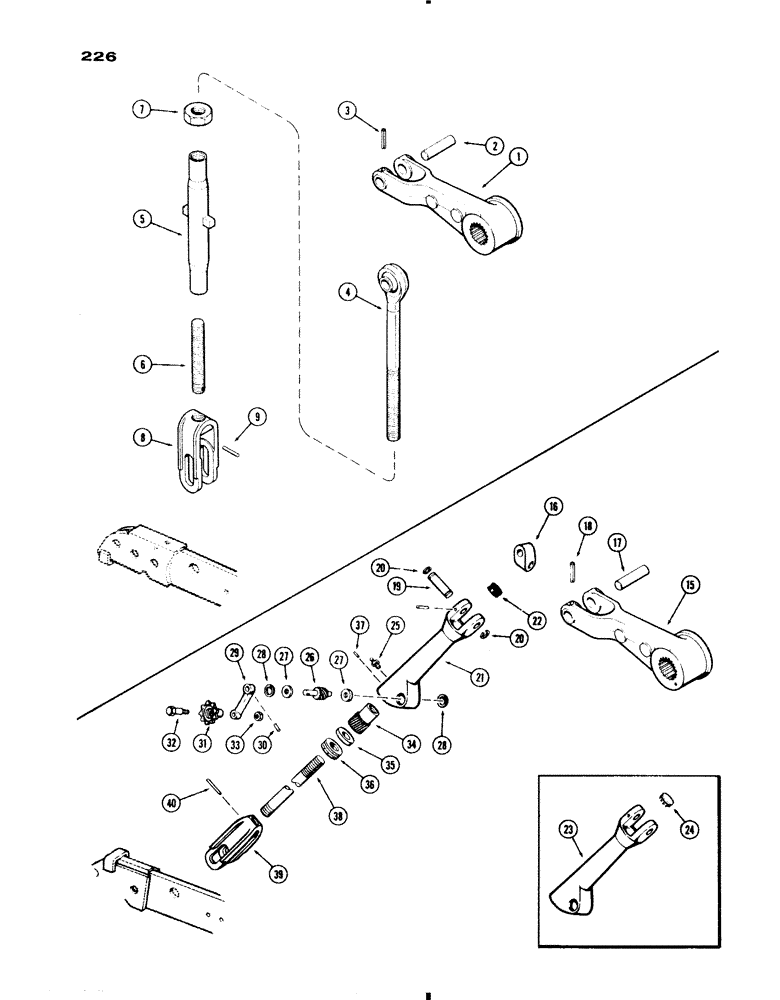

Запчасти Case IH 730 SERIES (226) - THREE POINT HITCH, LIFT LINKS, USED BEFORE AND AFTER TRANS. S/N 2229995 (09) - CHASSIS/ATTACHMENTS

1

A57494

ARM

- rockshaft, lift links

2шт.

2

A32268

PIN

- upper, Serial Range: link-arm

2шт.

3

138-2047

PIN,1/4" x 1 7/8", Coiled

2шт.

4

A57908

LINK

ASSY. - upper

2шт.

5

A57491

TURNBUCKLE

- lift link adjustment

2шт.

6

A57496

LINK

- lower

2шт.

7

129-371

NUT,Jam, 1 1/8"-12, G5, LH

- lock, lower link (1-1/8" N.F. jam, L.H. thread)

2шт.

8

A32251

YOKE

- lift link

2шт.

9

138-158

LOCK PIN,5/16" x 1 5/8", Slotted

PIN, , link to yoke 5/16" x 1 5/8", Slotted

2шт.

15

A33376

ARM - rockshaft, lift links, used prior to trans. s/n 222999

2шт.

16

A32269

BLOCK - swivel, lift link, used prior to trans. s/n 222999

2шт.

17

A32268

PIN

- swivel block to arm, used prior to trans. s/n 222999

2шт.

18

138-2016

PIN,1/4" x 1 7/8", Coiled

Used prior to trans. S/N 222999 1/4" x 1 7/8", Coiled

2шт.

19

A33951

PIN - swivel block to housing, used prior to trans. s/n 222999

2шт.

20

F7135

RING, SNAP

RING - snap, pin retaining, used prior to trans. s/n 222999

4шт.

21

A34912

HOUSING

ASSY. - lift link, upper (uses rubber plug), used prior to trans. s/n 222999, Includes: Ref. 22, Start Serial: 8321717

2шт.

22

A34908

PLUG

- housing (rubber), used prior to trans. s/n 222999

1шт.

23

A34251

HOUSING - lift link, upper (For 1/8" roll pin) (Order A34912) (uses button plug), used prior to trans. s/n 222999, Serial Range: 8284457-8321717

2шт.

23

N1047064

SUPPORT

HOUSING - lift link, upper (For 3/32" roll pin) (Order 1-A34912, 1-A34252 & 1 of 138-2026), used prior to trans. s/n 222999, Serial Range: -8284457

2шт.

24

205-36

HOLE PLUG BUTTON,7/8"

PLUG - housing ( button type), used prior to trans. s/n 222999 7/8"

2шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.), used prior to trans. s/n 222999

2шт.

26

A32273

WORM

- level gear drive, used prior to trans. s/n 222999

2шт.

27

A34811

PLUG

- thrust, worn shaft (Replaces A32976), used prior to trans. s/n 222999

2шт.

28

A21145

SNAP RING,1.25, Int, #125

RING - snap, 1.25", Int, #125, plug, used prior to trans. s/n 222999

4шт.

29

A32248

ARM

- worm crank, used prior to trans. s/n 222999

2шт.

30

138-2015

PIN,1/4" x 7/8", Coiled

arm ret., used prior to trans. s/n 222999 1/4" x 7/8", Coiled

2шт.

31

A33494

KNOB

- crank handle, used prior to trans. s/n 222999

2шт.

32

A33495

BOLT

BOLT - knob pivot, used prior to trans. s/n 222999

2шт.

33

131-706

LOCK NUT

NUT - (3/8" N.F. hex.), used prior to trans. s/n 222999

2шт.

34

A32975

POINT

GEAR - lift link leveling, used prior to trans. s/n 222999

2шт.

35

B15878

WASHER

- thrust, leveling gear, used prior to trans. s/n 222999

2шт.

36

A34252

PLUG

- thrust, leveling gear (For 1/8" roll pin), used prior to trans. s/n 222999, Start Serial: 8284457

2шт.

36

A32272

PLUG

- thrust, leveling gear (For 3/32" roll pin), used prior to trans. s/n 222999, Start Serial: 8284457

2шт.

37

138-2026

PIN,1/8" x 3/4", Coiled

used w/A34252 plug, used prior to trans. s/n 222999 1/8" x 3/4", Coiled, Start Serial: 8284457

2шт.

37

138-2020

PIN,3/32" x 1/4", Coiled

(used w/A32272 plug), used prior to trans. s/n 222999 3/32" x 1/4", Coiled, Serial Range: -8284457

2шт.

Ref: #38 No Cross Holes on this shaft.

1шт.

38

A32250

SHAFT - lift link, lower, used prior to trans. s/n 222999

2шт.

39

A32251

YOKE

- lift link, lower, used prior to trans. s/n 222999

2шт.

40

138-158

LOCK PIN,5/16" x 1 5/8", Slotted

PIN, , yoke to shaft, used prior to trans. s/n 222999 5/16" x 1 5/8", Slotted

2шт.
