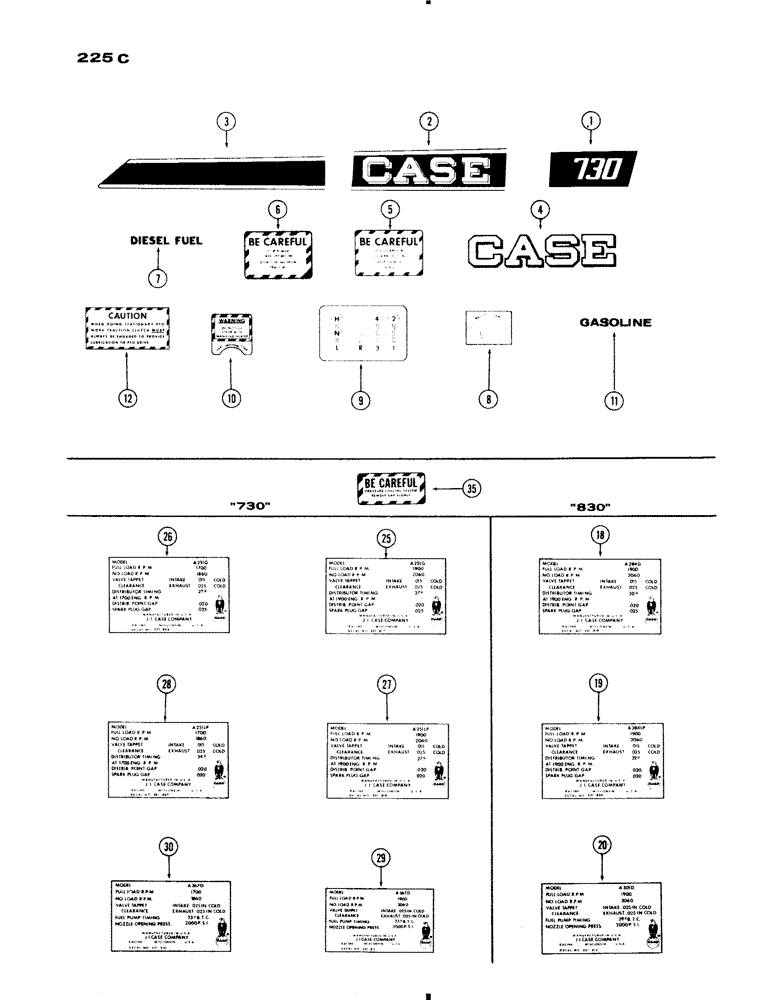

Запчасти Case IH 730 SERIES (225C) - DECALS, 730 GROVE, 830 ENGINE DATA, 730 ENGINE DATA, (09) - CHASSIS/ATTACHMENTS

A33962

KIT

DECAL KIT, Includes: Ref. 1 - 12

1шт.

1

321-400

DECAL

"730" - grille cap, right hand

1шт.

1

321-401

DECAL

"730" - grille cap, left hand

1шт.

2

321-408

DECAL

"CASE" - hood, right hand

1шт.

2

321-409

DECAL

"CASE" - hood, left hand

1шт.

3

321-798

DECAL

"BORDER" - fuel tank, right hand

1шт.

3

321-799

DECAL

"BORDER" - fuel tank, left hand

1шт.

4

321-286

DECAL

"CASE" - seat

1шт.

5

321-605

DECAL

"BE CAREFUL" - P.T.O. (fender)

1шт.

6

321-608

DECAL

"BE CAREFUL" - P.T.O. shield

1шт.

7

321-230

DECAL

"DIESEL FUEL" - fuel tank

1шт.

8

321-297

DECAL

INDICATOR - light switch

1шт.

9

321-797

INDICATOR - range shift

1шт.

10

321-422

DECAL

WARNING - heater (Diesel)

1шт.

11

321-18

DECAL

"GASOLINE" - fuel tank top

1шт.

12

321-75

DECAL

"CAUTION" - traction clutch

1шт.

18

321-819

"A284G" - (Gas), 830 eng data

1шт.

19

321-820

"A284 L.P." - (L.P.Gas), 830 eng data

1шт.

20

321-1033

"A301D" - (Diesel) (replaces 321-812), 830 eng data

1шт.

25

321-817

"A251G" - (Gas) (Case-O-Matic), 730 eng data

1шт.

26

321-806

"A251G" - (Gas) (Standard Clutch), 730 eng data

1шт.

27

321-818

"A251LP" - (L.P. Gas) (Case-O-Matic), 730 eng data

1шт.

28

321-807

"A251LP" - (LP Gas) (Standard Clutch), 730 eng data

1шт.

29

321-811

"A267" - (DIESEL) (Case-O-Matic), 730 eng data

1шт.

30

321-810

"A267D" - (DIESEL) (Standard Clutch), 730 eng data

1шт.

35

321-333

DECAL

"CAUTION" - belt pulley (used all models), 730 eng data

1шт.
