Запчасти Case IH 730 SERIES (225A) - DECALS, USED PRIOR TO TRAC. SER. NO. 8345303, CASE-O-MATIC (09) - CHASSIS/ATTACHMENTS

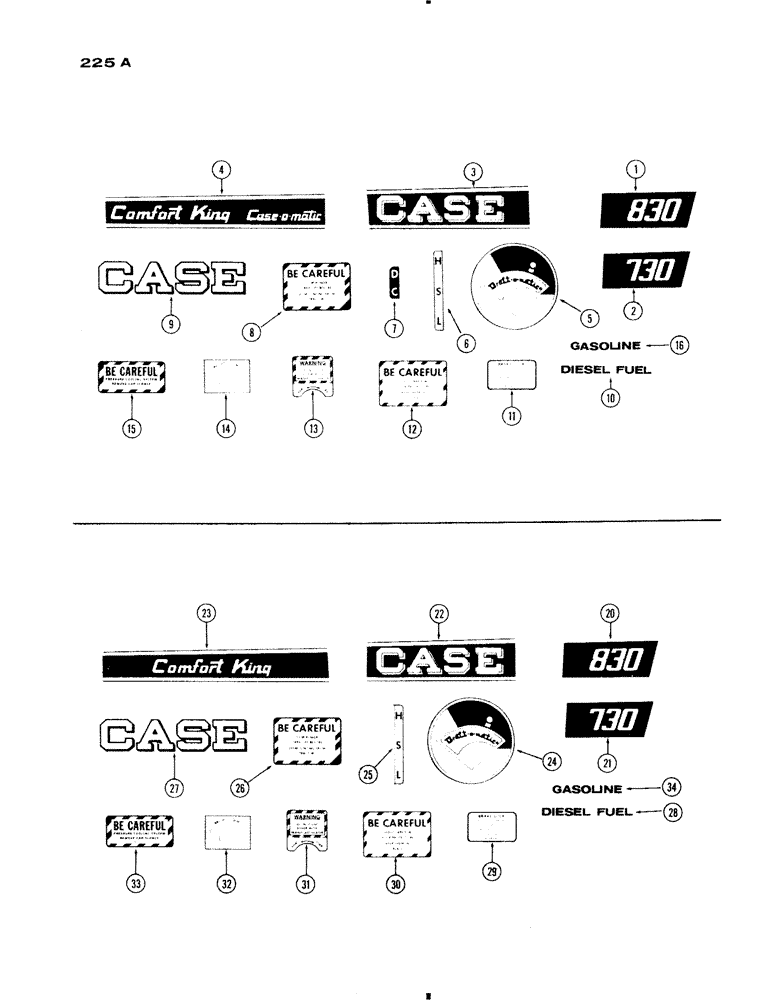

Схема запчастей Case IH 730 SERIES - (225A) - DECALS, USED PRIOR TO TRAC. SER. NO. 8345303, CASE-O-MATIC (09) - CHASSIS/ATTACHMENTS
33
7
11
2
32
14
12
34
26
9
1
24
30
29
22
5
20
21
23
13
8
3
10
31
28
6
25
15
4
16
27

Артикул

Название

Примечание

Количество

A33961

KIT

DECAL KIT - (830 Models) (Incl. Ref. 1 & 3 - 16)

1шт.

A33954

DECAL

KIT - (730 Models except Grove) (See Figure 225C) (incl. Ref. 2 - 16)

1шт.

1

321-735

DECAL

"830" - grille cap, left hand (Mylar)

1шт.

1

321-734

DECAL

"830" - grille cap, right hand (Mylar)

1шт.

2

321-733

DECAL

"730" - grille cap, left hand (Mylar)

1шт.

2

321-732

DECAL

"730" - grille cap, right hand (Mylar)

1шт.

3

321-409

DECAL

"CASE" - hood, left hand (Mylar)

1шт.

3

321-408

DECAL

"CASE" - hood, right hand (Mylar)

1шт.

4

321-769

DECAL

"COMFORT KING CASE-O-MATIC" - L.H. (Mylar)

1шт.

4

321-768

DECAL

"COMFORT KING CASE-O-MATIC" - R.H. (Mylar)

1шт.

5

321-767

DECAL

"DRAFT-O-MATIC" - side panel

1шт.

6

321-730

DECAL

INDICATOR - range

1шт.

7

321-856

DECAL

INDICATOR - drive

1шт.

8

321-605

DECAL

"BE CAREFUL" - P.T.O. (fender)

1шт.

9

321-287

DECAL

"CASE" - seat

1шт.

10

321-230

DECAL

"DIESEL FUEL" - fuel tank

1шт.

11

321-1034

DECAL

"BRAKE LOCK" - R.H. fender (Replaces 321-755)

1шт.

12

321-608

DECAL

"BE CAREFUL" - P.T.O. & lift arm shields

3шт.

13

321-422

DECAL

HEATER - warning (Diesel)

1шт.

14

321-297

DECAL

INDICATOR - light switch

1шт.

15

321-122

DECAL

"BE CAREFUL" - pressure cooling

1шт.

16

321-18

DECAL

"GASOLINE" - fuel tank top

1шт.

A33960

DECAL

KIT - (830 Models) (Incl. Refs. 20 & 22 thru 34), dry clutch

1шт.

A33955

KIT

DECAL KIT - (730 Models except Grove) (See Figure 225C) (incl. Refs. 21 - 34), dry clutch

1шт.

20

321-735

DECAL

"830" - grille cap, Left hand (Mylar), dry clutch

1шт.

20

321-734

DECAL

"830" - grille cap, right hand (Mylar), dry clutch

1шт.

21

321-733

DECAL

"730" - grille cap, left hand (Mylar), dry clutch

1шт.

21

321-732

DECAL

"730" - grille cap, right hand (Mylar), dry clutch

1шт.

22

321-409

DECAL

"CASE" - hood, left hand (Mylar), dry clutch

1шт.

22

321-408

DECAL

"CASE" - hood, right hand (Mylar), dry clutch

1шт.

23

321-771

DECAL

"COMFORT KING" - left hand (Mylar), dry clutch

1шт.

23

321-770

DECAL

"COMFORT KING" - right hand (Mylar), dry clutch

1шт.

24

321-767

DECAL

"DRAFT-O-MATIC" - side panel, dry clutch

1шт.

25

321-730

DECAL

INDICATOR - range, dry clutch

1шт.

26

321-605

DECAL

"BE CAREFUL" - P.T.O. (fender), dry clutch

1шт.

27

321-287

DECAL

"CASE" - seat, dry clutch

1шт.

28

321-230

DECAL

"DIESEL FUEL" - fuel tank, dry clutch

1шт.

29

321-1034

DECAL

"BRAKE LOCK" - R.H. fender (replaces 321-755), dry clutch

1шт.

30

321-608

DECAL

"BE CAREFUL" - P.T.O. & lift arm shields, dry clutch

3шт.

31

321-422

DECAL

HEATER - warning (Diesel), dry clutch

1шт.

32

321-297

DECAL

INDICATOR - light switch, dry clutch

1шт.

33

321-122

DECAL

"BE CAREFUL" - pressure cooling, dry clutch

1шт.

34

321-18

DECAL

"GASOLINE" - fuel tank top, dry clutch

1шт.

Выбрано товаров: 43
