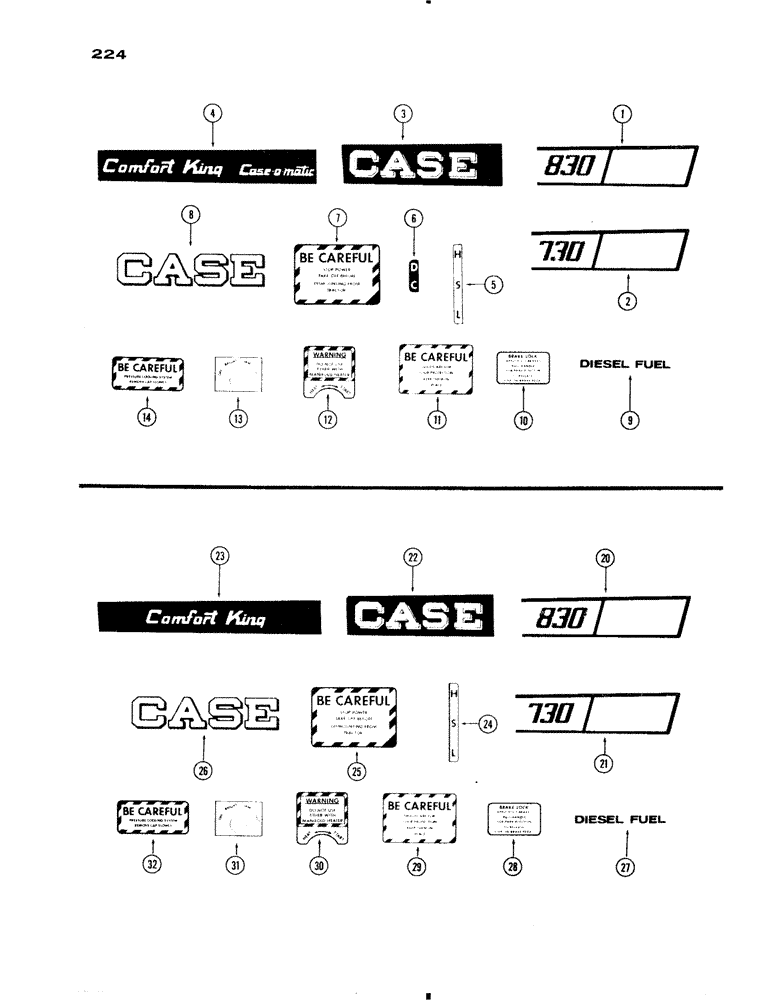

Запчасти Case IH 730 SERIES (224) - DECALS, ALL 730 AND 830 EXCEPT GROVE, 1ST USED TRAC. S/N 8345303, CASE-O-MATIC (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
A41619
DECAL
KIT - (830 Models) (incl. Refs. 1 - 14)
1шт.
A41616
KIT
DECAL KIT - (730 Models Except Grove) (See Figure 225C) (incl. Refs. 1 - 14)
1шт.
1
321-1183
DECAL
"830" - grille cap, left hand, (Vinyl)
1шт.
1
321-1182
DECAL
"830" - grille cap, right hand (Vinyl)
1шт.
2
321-1181
DECAL
"730" - grille cap, left hand (Vinyl)
1шт.
2
321-1180
DECAL
"730" - grille cap, right hand (Vinyl)
1шт.
3
321-1185
DECAL
"CASE" - hood, left hand (Vinyl)
1шт.
3
321-1184
DECAL
"CASE" - hood, right hand (Vinyl)
1шт.
4
321-1189
DECAL
"COMFORT KING CASE-O-MATIC" - left hand (Vinyl)
1шт.
4
321-1188
DECAL
"COMFORT KING CASE-O-MATIC" - right hand (Vinyl)
1шт.
5
321-730
DECAL
INDICATOR - range
1шт.
6
321-856
DECAL
INDICATOR - drive
1шт.
7
321-605
DECAL
"BE CAREFUL" - P.T.O. (on fender)
1шт.
8
321-287
DECAL
"CASE" - seat
1шт.
9
321-230
DECAL
"DECAL FUEL" - fuel tank
1шт.
10
321-1034
DECAL
"BRAKE LOCK" - right hand fender
1шт.
11
321-608
DECAL
"BE CAREFUL" - P.T.O. & lift arm shields
3шт.
12
321-422
DECAL
HEATER - warning (Diesel only)
1шт.
13
321-297
DECAL
INDICATOR - light switch
1шт.
14
321-122
DECAL
"BE CAREFUL" - pressure cooling
1шт.
A41618
KIT
DECAL KIT - (830 Models) (incl. Refs. 20 - 32), dry clutch
1шт.
A41617
DECAL
KIT - (730 Models except Grove) (See Figure 225C) (incl. Refs. 21 - 32), dry clutch
1шт.
20
321-1183
DECAL
"830" - grille cap, left hand (Vinyl), dry clutch
1шт.
20
321-1182
DECAL
"830" - grille cap, right hand (Vinyl), dry clutch
1шт.
21
321-1181
DECAL
"730" - grille cap, left hand (Vinyl), dry clutch
1шт.
21
321-1180
DECAL
"730" - grille cap, right hand (Vinyl), dry clutch
1шт.
22
321-1185
DECAL
"CASE" - hood, left hand (Vinyl), dry clutch
1шт.
22
321-1184
DECAL
"CASE" - hood, right hand (Vinyl), dry clutch
1шт.
23
321-1187
DECAL
"COMFORT KING" - left hand (Vinyl), dry clutch
1шт.
23
321-1186
DECAL
"COMFORT KING" - right hand (Vinyl), dry clutch
1шт.
24
321-730
DECAL
INDICATOR - range, dry clutch
1шт.
25
321-605
DECAL
"BE CAREFUL" - P.T.O. (on fender), dry clutch
1шт.
26
321-287
DECAL
"CASE" - seat, dry clutch
1шт.
27
321-230
DECAL
"DIESEL FUEL" - fuel tank, dry clutch
1шт.
28
321-1034
DECAL
"BRAKE LOCK" - right hand fender, dry clutch
1шт.
29
321-608
DECAL
"BE CAREFUL" - P.T.O. & lift arm shields, dry clutch
3шт.
30
321-422
DECAL
"HEATER" - warning (Diesel only), dry clutch
1шт.
31
321-297
DECAL
INDICATOR - light switch, dry clutch
1шт.
32
321-122
DECAL
"BE CAREFUL" - pressure cooling, dry clutch
1шт.
Выбрано товаров: 39
