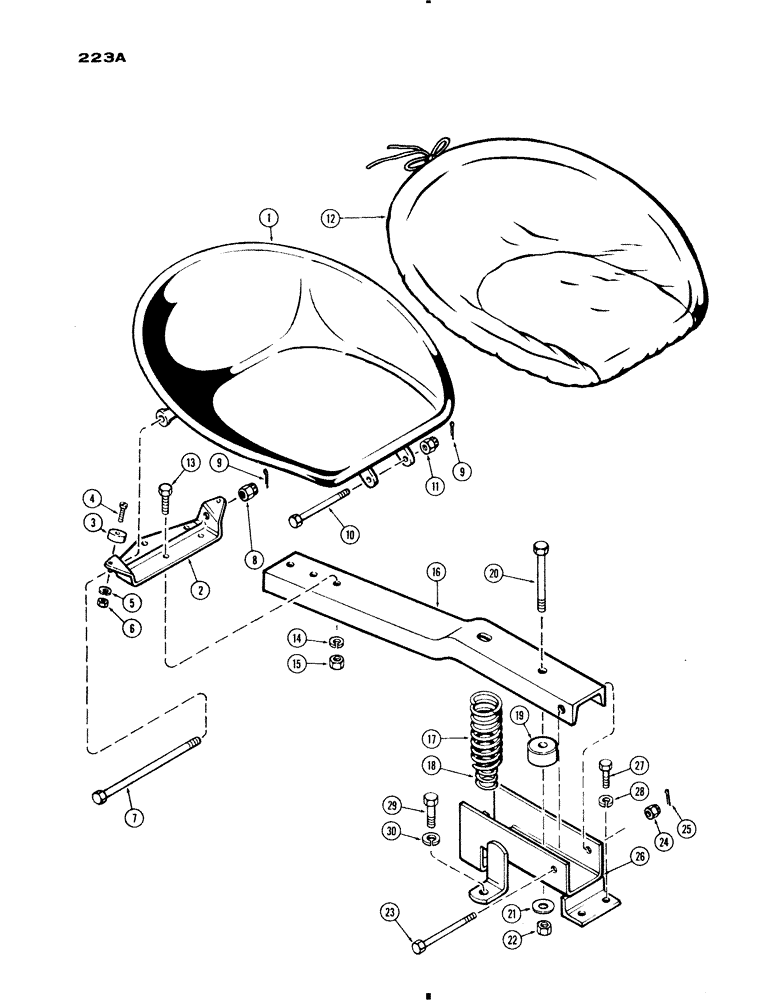

Запчасти Case IH 730 SERIES (223A) - SEAT AND SUPPORT, 730 GROVE (09) - CHASSIS/ATTACHMENTS

A28394

SEAT ASSY., Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

SEAT - pan (Order A28394)

1шт.

2

A8402

BRACKET - support

1шт.

3

A27124

BUMPER

STOP - support

2шт.

4

173-100

BOLT,Sl Rnd Hd, #10 - 24 x 3/4"

SCREW - stop (#10 x 3/4" N.C., rd. hd.)

2шт.

5

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

6

129-7

NUT,Hex, #10 - 24

- (#10 N.C. hex.)

2шт.

7

A26967

BOLT - hinge

1шт.

8

25-238

SLOTTED NUT,1/2"-20, G5, Thk

NUT - (1-1/2" N.F. hex. sltd.)

1шт.

9

132-27

COTTER PIN,3/32" x 7/8"

Pin, Split (Cotter), 3/32" x 7/8"

2шт.

10

A27269

BOLT - seat lock

1шт.

11

25-236

SLOTTED NUT,3/8"-24, G5, Thk

NUT - (3/8" N.F. hex. sltd.)

1шт.

12

A27805

COVER

PAD - seat

1шт.

13

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Seat to channel Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

14

92-8

LOCK WASHER,1/2"

2шт.

15

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

2шт.

16

A23179

CHANNEL - seat

1шт.

17

A26962

SPRING

- channel, large

1шт.

18

B18211

SPRING

- channel, small

1шт.

19

A27634

BUMPER

- channel

1шт.

20

14-872

X,Hex, 1/2" - 20 x 4 1/2", Gr 5

BOLT - bumper (1/2 x 4-1/2" N.F. hex.)

1шт.

21

195-36

WASHER

- (9/16 x 1-7/8 x 1/8")

1шт.

22

131-58

LOCK NUT,1/2"-20, G5

NUT - (1/2" N.F. hex.)

1шт.

23

A26724

BOLT - pivot

1шт.

24

25-2310

NUT

- pivot bolt (5/8" N.F. sltd.)

1шт.

25

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

26

A33800

BRACKET - seat channel

1шт.

27

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- brkt. (1/2 x 1-3/4" N.C. hex.)

2шт.

28

92-8

LOCK WASHER,1/2"

2шт.

29

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Bracket Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

30

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
