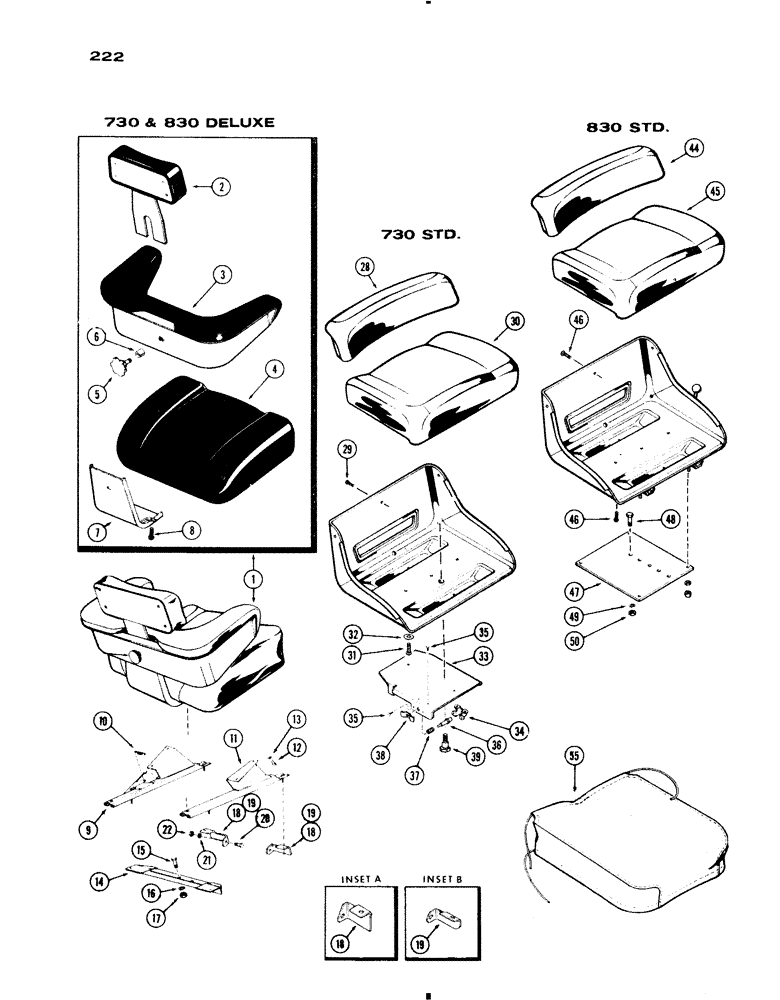

Запчасти Case IH 730 SERIES (222) - SEAT, 730 AND 830 DELUXE EXCEPT GROVE, 730 STANDARD EXCEPT GROVE AND 830 STANDARD (09) - CHASSIS/ATTACHMENTS

1

A32872

SEAT ASSY., Includes: Ref. 2 - 13

1шт.

2

A34283

CUSHION

ASSY. - upper backrest (replaces A33319)

1шт.

3

A42497

BACKREST

CUSHION ASSY. - back & arm rest (Replaces A33318)

1шт.

4

A33317

CUSHION

ASSY. - seat

1шт.

5

A40972

KNOB

SCREW - adj. upper backrest (plastic)

1шт.

5

A33327

X

SCREW - adj., (aluminum) (Order A40972)

1шт.

6

A40600

SPACER

- adj. screw (33/64 x 3/4 x 29/64")

1шт.

7

A57405

SUPPORT

- seat & backseat

1шт.

8

166-23

12 PT SCREW,Flg, 5/16" - 18 x 5/8", Gr 8

SCREW - (5/16" x 3/4" N.C. ferry, C'Bore hd.)

2шт.

9

A40942

BRACKET

ASSY. - left hand, Includes: Ref. 10

1шт.

10

A25261

SPRING - seat adj. lever

1шт.

11

A40943

KIT

BRACKET ASSY. - right hand

1шт.

12

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

8шт.

13

195-103

WASHER,5/16"

- (3/8 x 7/8 x 5/64")

8шт.

14

A57710

BRACKET

- seat support, rear (used w/flanged bushing type seat support)

1шт.

14

A32873

BRACKET - seat support, rear (used w/straight bushing type seat support)

1шт.

15

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Bracket Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

16

92-8

LOCK WASHER,1/2"

2шт.

17

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

2шт.

18

A34520

BRACKET - seat support, R.H. front (See Inset A)

1шт.

18

A34521

BRACKET - seat support, L.H. front (See inset A)

1шт.

19

A34228

BRACKET - seat support, R. H. front (See inset B)

1шт.

19

A34229

BRACKET - seat support, L.H. front (See inset B)

1шт.

20

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Frt. bracket Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

2шт.

A36193

SEAT ASSY.

- (not illust.), Includes: Ref. 28 - 38, 730 standard (except grove)

1шт.

28

A24712

BACKREST

CUSHION - backrest, 730 standard (except grove)

1шт.

29

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- (1/4 x 1/2" N.C. Ph. Tr. hd.), 730 standard (except grove)

3шт.

30

A24713

CUSHION

- seat (See item 55), 730 standard (except grove)

1шт.

31

175-428

SCREW,Phil Truss Hd, 1/4" - 20 x 5/8"

- seat (1/4 x 5/8" N.C. Ph. Tr. hd.), 730 standard (except grove)

2шт.

32

195-518

WASHER,1/4", SAE

- (9/32 x 5/8 x 1/16"), 730 standard (except grove)

2шт.

G30541

GUIDE ASSY. - seat (not illust.), Includes: Ref. 33 - 38, 730 standard (except grove)

1шт.

33

NSS

NOT SOLD SEPARAT

GUIDE - seat pan (Order G30541), 730 standard (except grove)

1шт.

34

G16891

BRACKET - spring retainer, 730 standard (except grove)

1шт.

35

151-210

RIVET - brkt. (3/16 x 7/16" Truss hd.), 730 standard (except grove)

4шт.

36

G10783

PIN - plunger lock, 730 standard (except grove)

1шт.

37

A30370

SPRING - seat, 730 standard (except grove)

1шт.

38

G10784

HANDLE - plunger lock, 730 standard (except grove)

1шт.

39

G49092

BOLT - guide, 730 standard (except grove)

1шт.

A24711

SEAT

ASSY. - (not illust.), 830 standard

1шт.

44

A24712

BACKREST

CUSHION - backrest, 830 standard

1шт.

45

A24713

CUSHION

- seat (See item 55), 830 standard

1шт.

46

175-428

SCREW,Phil Truss Hd, 1/4" - 20 x 5/8"

- (1/4 x 5/8" N.C. Ph. Tr. hd.), 830 standard

5шт.

47

A24107

PLATE - seat support, 830 standard

1шт.

48

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

- plate (1/2 x 1" N.F. hex.), 830 standard

2шт.

49

92-8

LOCK WASHER,1/2"

830 standard 1/2"

2шт.

50

25-118

NUT,1/2"-20, G5

- (1/2" N.F. hex.), 830 standard

2шт.

55

A23697

COVER

- seat cushion (for worn A24713 cushion), 830 standard

1шт.
