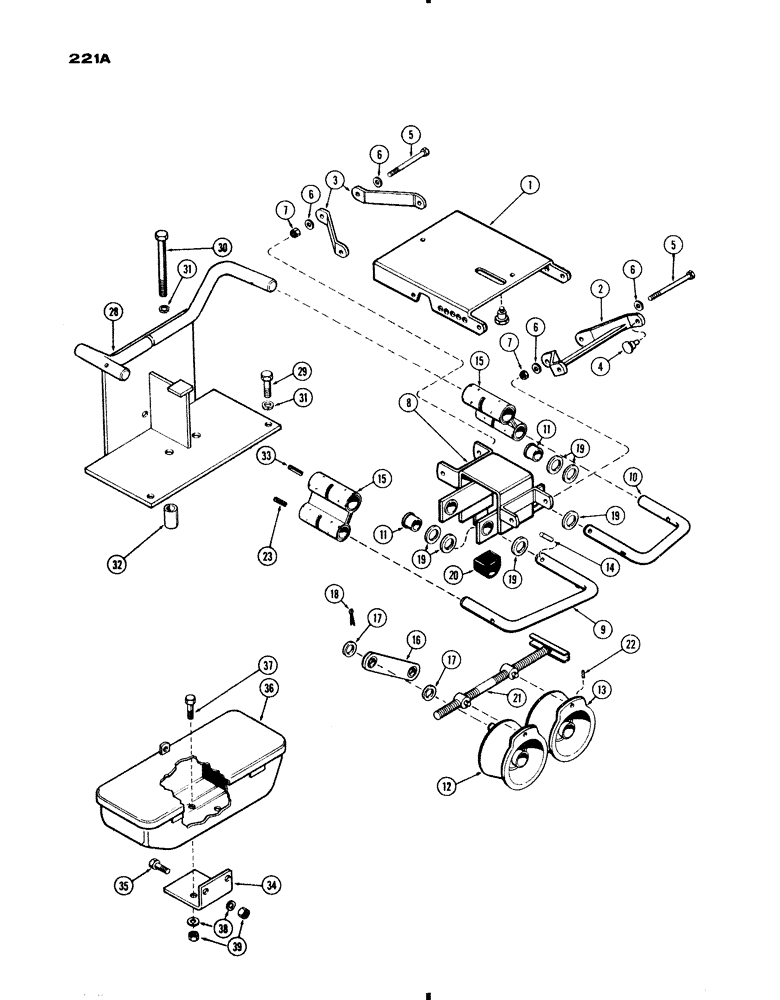

Запчасти Case IH 730 SERIES (221A) - SEAT SUSPENSION, 730 STANDARD EXCEPT GROVE, USED PRIOR TO TRAC. SER. NO. 8312174 (09) - CHASSIS/ATTACHMENTS

A33309

CHANNEL ASSY. - seat mtg. (not illust.) (Order A37945), Includes: Ref. 1 - 4

1шт.

1

A33310

CHANNEL

- mtg.

1шт.

2

A38143

ARM ASSY. - front pivot (Replaces G13379)

1шт.

3

G10775

ARM

- rear pivot

2шт.

4

G10779

RIVET

- pivot, Serial Range: arms-channel

4шт.

5

16-572

BOLT - channel (5/16 x 4-1/2" N.F. hex.)

2шт.

6

195-21

WASHER,5/16"

- (11/32 x 11/16 x 1/16")

4шт.

7

131-3

LOCK NUT,5/16"-24, GB

NUT - (5/16" N.F. self-locking)

2шт.

G13385

X

SUSPENSION ASSY. - seat (not illust.) (Order A37951), Includes: Ref. 8 - 23

1шт.

8

G45031

BRACKET - support

1шт.

9

G46000

SHAFT - spring, right hand

1шт.

10

G46001

SHAFT - spring, left hand

1шт.

11

G46002

FLANGED BEARING

BEARING - flange

2шт.

12

G45002

SPRING SEAT

SPRING - cushion, right hand

1шт.

13

G45003

SPRING SEAT

SPRING - cushion, left hand

1шт.

14

135-583

GROOVED PIN,1/4" x 1 1/4", Type D

PIN, grooved, , shaft, upper 1/4" x 1 1/4", Type D

2шт.

15

G45004

LEVER

- suspension

2шт.

16

G45005

LINK - stabilizing

1шт.

17

A26381

WASHER

- link (17/32 x 1 x 14 Ga.)

4шт.

18

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

19

A26462

WASHER

- shaft (49/64 x 1-1/4 x 14 Ga.)

6шт.

20

A30644

BUMPER

- suspension

1шт.

21

G45001

STUD

- adjusting

1шт.

22

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, , Stud 1/8" x 3/4", Slotted

2шт.

23

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, , Shaft 1/4" x 1 1/4", Slotted

2шт.

28

A33302

SUPPORT - seat

1шт.

29

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5, Support

2шт.

30

15-8136

BOLT,Hex, 1/2" - 13 x 8-1/2", Gr 5

- support (1/2 x 8-1/2" N.C. hex.)

2шт.

31

92-8

LOCK WASHER,1/2"

4шт.

32

A27328

SPACER

- support (1/2" pipe x 1-1/4")

2шт.

33

138-155

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

2шт.

34

A33298

BRACKET - tool box

1шт.

35

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Bracket Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

36

A11099

TOOL

BOX ASSY. - tools

1шт.

37

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Toolbox Hex, 5/16"-18 x 5/8", G5, Full Thd

2шт.

38

92-5

LOCK WASHER,5/16"

4шт.

39

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

1шт.
