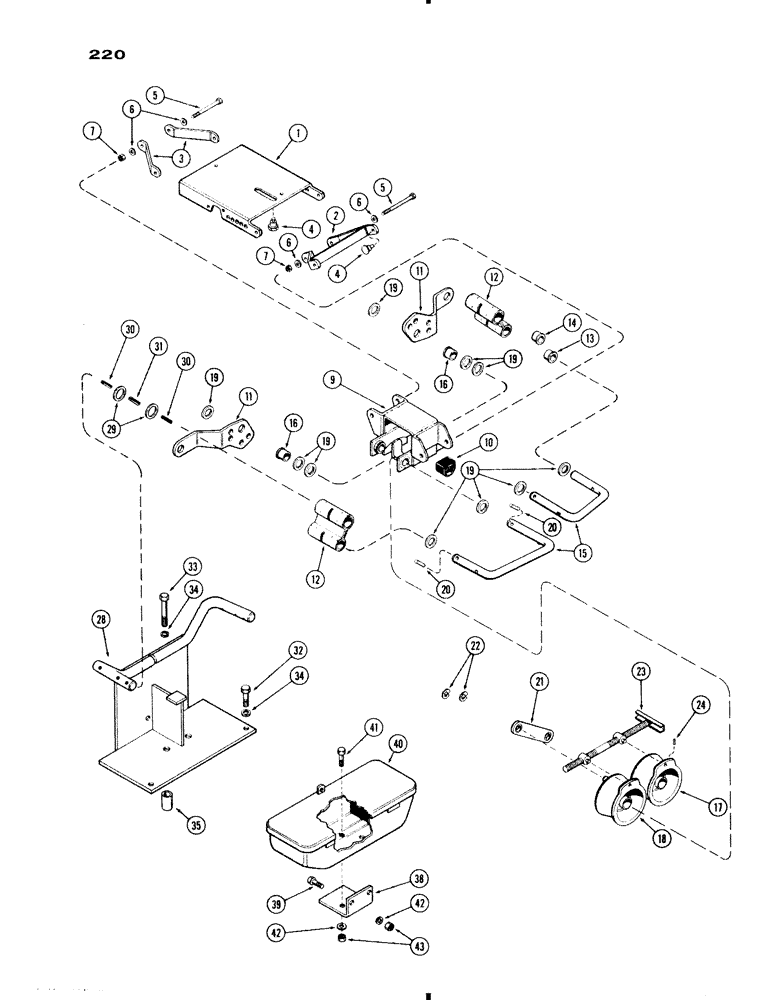

Запчасти Case IH 730 SERIES (220) - SEAT SUSPENSION, 730 STANDARD EXCEPT GROVE, 1ST USED TRAC. S/N 8312174 (09) - CHASSIS/ATTACHMENTS

A37945

CHANNEL ASSY. - seat mounting (not illust.), Includes: Ref. 1 - 4

1шт.

1

A33310

CHANNEL

- mtg.

1шт.

2

A38148

X

ARM - front pivot

1шт.

3

G10775

ARM

- pivot, rear

2шт.

4

G10779

RIVET

- pivot, Serial Range: arms-channel

4шт.

5

16-572

BOLT - channel (5/16 x 4-1/2" N.F. hex.)

2шт.

6

195-21

WASHER,5/16"

- (11/32 x 11/16 x 1/16")

4шт.

7

131-3

LOCK NUT,5/16"-24, GB

NUT - (5/16" N.F. self-locking)

2шт.

A37951

SUSPENSION BLOCK

SUSPENSION ASSY. - seat (not illust.), Includes: Ref. 9 - 24

1шт.

9

A41096

BRACKET - support

1шт.

10

A30644

BUMPER

- suspension (rubber)

1шт.

11

A41099

LEVER - suspension

2шт.

12

A41101

LINK

LEVER ASSY. - suspension, Includes: Ref. 13 and 14

2шт.

13

A30771

BUSHING

- flanged (3/4" I.D. x 7/8" O.D.)

2шт.

14

A41143

BUSHING

- flanged (7/8" I.D. x 1" O.D.)

2шт.

15

A41102

SHAFT - spring

2шт.

16

G46002

FLANGED BEARING

BEARING - flanged (3/4" I.D. x 7/8" O.D.)

2шт.

17

A41097

SPRING

- cushion, left hand

1шт.

18

A41098

SPRING

- cushion, right hand

1шт.

19

A26462

WASHER

- spring shaft (49/64 x 1-1/4" x 14 Ga.)

10шт.

20

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, , Spring shaft 1/4" x 1 1/4", Slotted

4шт.

21

A41100

LINK - stabilizer

1шт.

22

A27795

RING

- snap, stabilizer link

2шт.

23

G45001

STUD

ASSY. - spring adjusting

1шт.

24

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, , Adj. spring stud 1/8" x 3/4", Slotted

2шт.

28

A34906

SUPPORT - seat

1шт.

29

A37955

WASHER

- (15/16 x 1-1/4" x 14 Ga.)

4шт.

30

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, , Seat support 1/4" x 1 1/4", Slotted

4шт.

31

138-155

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, , Seat support 5/16" x 1 1/4", Slotted

2шт.

32

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5, Support

2шт.

33

15-8136

BOLT,Hex, 1/2" - 13 x 8-1/2", Gr 5

- support (1/2 x 8-1/2" N.C. hex.)

2шт.

34

92-8

LOCK WASHER,1/2"

4шт.

35

A27328

SPACER

- support (1/2" pipe x 1-1/4")

2шт.

38

A33298

BRACKET - tool box

1шт.

39

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Bracket Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

40

A11099

TOOL

BOX ASSY. - tools

1шт.

41

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Toolbox Hex, 5/16"-18 x 5/8", G5, Full Thd

2шт.

42

92-5

LOCK WASHER,5/16"

4шт.

43

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

1шт.
